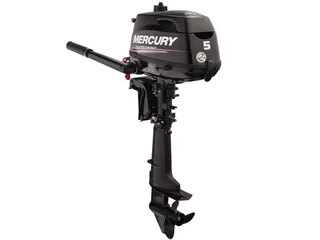

2019 Mercury 5 HP 5MH Outboard Motor

The 2019 Mercury 5 HP Outboard motor is perfect for powering small skiffs, jon boats and inflatable boats. The 55 lb. 5 HP outboard is also perfect for auxiliary power for your sailboat. Mercury Outboard motors are known for reliable, efficient power at an affordable price. A larger carburetor and propeller provide for the extra power you crave on the water. The Mercury 5 HP outboard model # 5MH is equipped with the 15 inch short shaft, an integrated gas tank, manual rope start, and forward, neutral and reverse shift. The Mercury Factory warranty begins on date of purchase.

2019 Mercury 5 HP 5MH Outboard Motor

MODEL 5MH

MODEL YEAR 2019

SKU 5MH-19

WEIGHT 55.0 lb

MANUFACTURER Mercury

COUNTRY OF MANUFACTURE Japan

HORSEPOWER 5hp

SHAFT LENGTH 15″ (Short)

STEERING Tiller

STARTING Manual

TRIM & TILT Manual

FUEL DELIVERY Carburetor

FUEL TANK Internal

CYLINDER(S) 1

DISPLACEMENT 7.5/123

BORE AND STROKE 2.32 x 1.77

FULL THROTTLE RPM RANGE 4500-5500

IGNITION SYSTEM CDI w/electric spark advance

INDUCTION SCAVENGING OHV

VALVES PER CYLINDER 2

FUEL TYPE 87 Octane (up to 10% ethanol content)

FUEL TANK / FUEL LINE 0.3 US Gallon (1.15 liter)

OIL TYPE SAE 10W-30 (Mercury 4-Stroke Outboard Oil)

OIL CAPACITY 15 fl. Oz. (450 ml)

LUBRICATION Pressurized wet sump

ALTERNATOR Optional 12V 50W 4A (installation required)

COOLING SYSTEM Water-Cooled, Thermostatically Controlled

SALTWATER RATED Yes

GEAR RATIO 2.15

GEAR SHIFT Forward-Neutral-Reverse (forward mounted shift lever)

PROPELLER 7.7″ Diameter X 8.0″ Pitch 3-Blade Aluminum

2019 Mercury 5 HP 5MH Outboard Motor

- Compact and Lightweight
- Digital CD Ignition with Spark Advance
- High Grade Marine Alloy Construction
- Stainless Steel Water Pump Housing
- Zinc Coated Water Passages
- Rated for Saltwater Use
- Sacrificial Zinc Anodes
- Forward-Neutral-Reverse Gear Shift
- Adjustable Steering Tension Control
- Forward Mounted Gear Shift Selector
- Twist-Grip Throttle with Tension Control
- Integrated Carry Handle
- Thermostat Controlled Water Cooling
- Shallow Water Drive; 6 Trim Positions
- Quiet Through-Propeller-Hub Exhaust
- 1.15 Liter (.30 Gallon) Integral Fuel Tank
- Start-In-Gear Protection
- Low Oil Pressure Warning Indicator
- ESG Over-Rev Protection
- Safety Lanyard Stop Switch
- Owner’s Manual
- Mercury Marine 3-Year Warranty

2019 Mercury 5 HP 5MH Outboard Motor

In The Box

- Integral Fuel Tank (0.3 gal)
- Owner’s Manual
- Mercury 3-Year Warranty
- Aluminum Propeller
- Mercury 4-Stroke Oil
- Tool Kit
