The Mercury 9.9 HP Outboard motor with Command Thrust delivers power, thrust, and control that wider, heavier boats need. A larger prop increases control and a taller gear case puts the propeller deeper below turbulent water for improved power. The Mercury 9.9 outboard engine is the right choice for sailboat and kicker applications. The 9.9 HP Mercury Outboard Motor model: 9.9MXLH-CT is an affordable outboard equipped with an extra long 25 inch shaft and manual start, Mercury’s 3 year factory warranty, auto ratchet trim, and multi function tiller control.

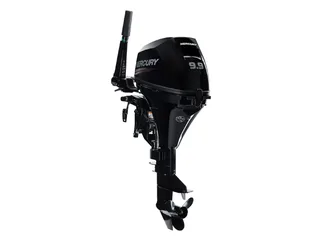

2017 Mercury 9.9 HP 9.9MXLH-CT Outboard Motor

- Compact and Lightweight
- Designed for Heavy Applications
- CommandThrust? Lower Unit (2.42:1 Gear Ratio)
- High Thrust Propeller
- Oversized Anti-Ventilation Plate
- Digital CD Ignition with Spark Advance
- High Grade Marine Alloy Construction
- Stainless Steel Water Pump Housing
- Zinc Coated Water Passages
- Rated for Saltwater Use
- Sacrificial Zinc Anodes and Trim Tab
- Tiller Integrated F-N-R Gear Shifting
- Adjustable Steering Tension Control
- Twist-Grip Throttle with Tension Control
- Thermostat Controlled Water Cooling
- Auto Ratchet Trim System (5 positions)
- Shallow Water Drive
- Quiet Through-Propeller-Hub Exhaust
- 3.2 Gallon Fuel Tank and Fuel Line
- Start-In-Gear Protection
- Low Oil Pressure Warning Indicator
- ESG Over-Rev Protection
- Safety Lanyard Stop Switch
- Owner’s Manual
- Mercury Marine 3-Year Warranty

2017 Mercury 9.9 HP 9.9MXLH-CT Outboard Motor

Model 9.9MXLH-CT

Model Year 2017

SKU 9.9MXLH-CT-17

Weight 99.0000

Manufacturer Mercury

Country of Manufacture Japan

Horsepower 9.9hp

Shaft Length 25″ (Extra Long)

Steering Tiller

Starting Manual

Trim & Tilt Manual

Fuel Delivery Carburetor

Fuel Tank External

Cylinder(s) 2

Displacement 208 cc (12.8 cubic inches)

Bore and Stroke 55 x 44 mm (2.16 x 1.73 inches)

Full Throttle RPM Range 5000-6000

Ignition System Digital CD Ignition w/Electronic Spark Advance

Induction Scavenging SOHC

Valves per Cylinder 2

Fuel Type 87 Octane (up to 10% ethanol content)

Fuel Tank / Fuel Line 3.2 Gal. Fuel Tank + Quick Connect Fuel Line

Oil Type SAE 10W-30 (Mercury 4-Stroke Outboard Oil)

Oil Capacity 27 fl. Oz. (800 ml)

Lubrication Trochoid Pump

Alternator Optional 12V 76W 6A (installation required)

Cooling System Water-Cooled, Thermostatically Controlled

Saltwater Rated YES

Gear Ratio 2.42:1 CommandThrust Gearcase

Gear Shift Forward-Neutral-Reverse (shift in tiller handle)

Propeller CommandThrust 4-Blade High Thrust Aluminum Propeller

Internal Battery No

2017 Mercury 9.9 HP 9.9MXLH-CT Outboard Motor

What’s in the box?

- Fuel Tank (3.2 gallon)
- Quick Connect Fuel Line
- Mercury 3-Year Warranty
- 4-Blade Aluminum Prop
- Mercury 4-Stroke Oil
- Owner’s Manual & Tool Kit
