STANDARD HORIZON Chart Plotter, 5inch color, GPS, Basemap

Contents Of The Package

CP190iNC – 5” Internal GPS Chart Plotter

Power Data cable

Swivel Mounting bracket

Flush Mount Hardware

Installation Operating Manual

Features

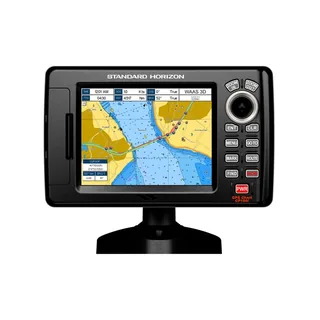

CP190iNC – 5” Internal GPS Chart Plotter (Base Map version)

The best value GPS Chart Plotter in its class.

The CP190iNC boasts a crisp 320×240 direct sunlight viewable 5-inch color TFT display and is supplied with a swivel bracket and flush mount hardware. The CP190iNC is capable of navigating you quickly and accurately to your destination.

Achieve up to 10’ accuracy with the integrated 50 channel WAAS GPS receiver or with the optional external GPS Smart antenna. Dedicated MARK, ROUTE and INFO keys allow for fumble free operation. To find fish, wrecks and record water temperature, simply connect the optional FF525 50/200 kHz black box fish finder and transducer. In addition, the CP190iNC displays vessel positions when connected to a DSC radio and tracks AIS (Automatic Identification System) and

AIS SART targets when connected to an optional AIS Receiver. The CP190iNC is backed by an industry leading 3-year waterproof warranty

5” Color TFT daylight viewable LCD display

Internal 50 channel WAAS GPS receiver and antenna

Connection for the optional external 50 Channel WAAS GPS Smart antenna

C-MAP NT+ and C-MAP MAX compatible

Optional FF525 Fish Finder

AIS and AIS SART display capable

Displays DSC Distress and Position report calls received from a DSC VHF radio

3000 Marks / 50 Routes

20 Tracks with 10000 available track points

Dual chart window with independent zoom levels

Satellite images on base map

Find Key, allows quick access to Port information, tide stations, wrecks, Point Of Interest and coordinates (with optional C-Map MAX)

Font size selection on chart page

2 NMEA inputs / 3 outputs

Specifications

Cartography Brand C-Map

Cartography – Preloaded No

Basemap Yes

Internal/External Antenna Internal

Screen Size 5″

Screen Type Color

Touchscreen No

Waterproof Rating Waterproof

Waypoints/Routes 3000/50

Box Dimensions 4″H x 8″W x 16″L
