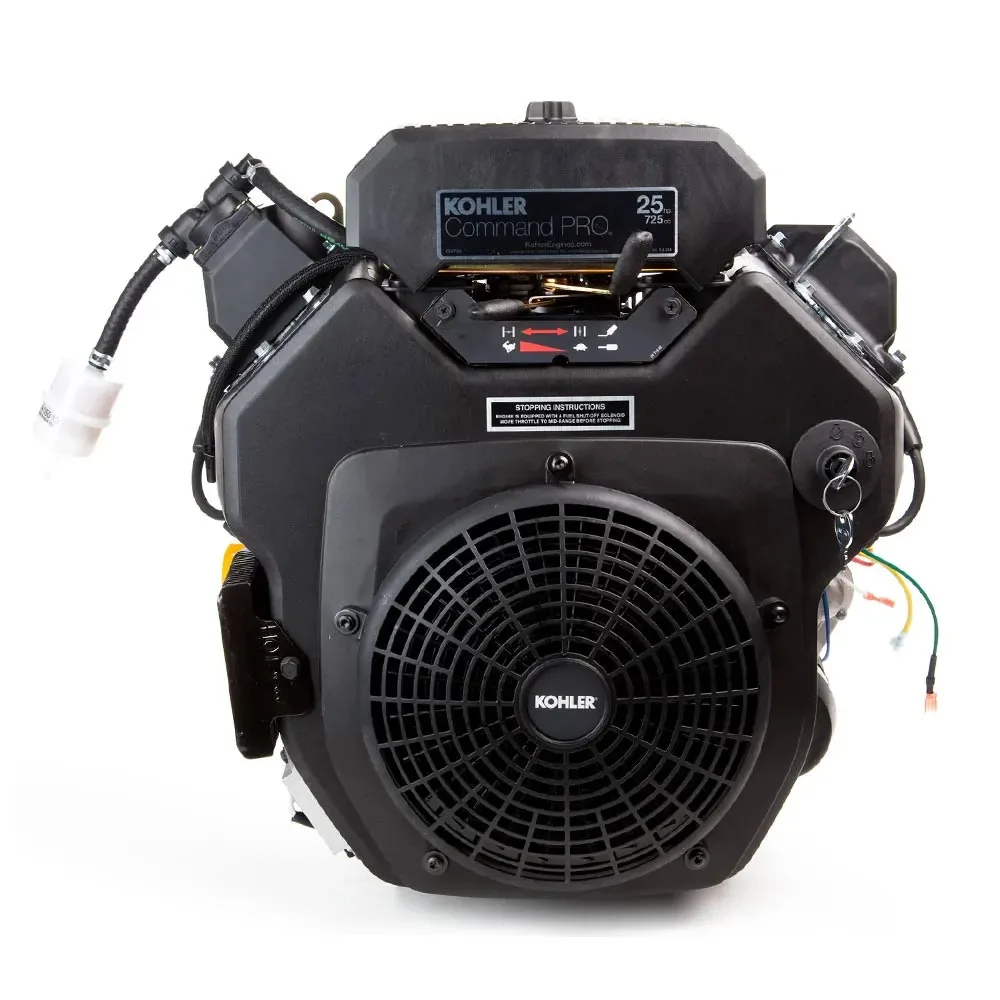

NEW Kohler CH730-3203 Horizontal Engine SALE !!

NEW Kohler CH730-3203 Horizontal Engine SALE !! is 725cc and puts out 23.5 HP (maximum horsepower). This CH730 has a 1-7/16″ x 4.46″ crankshaft. It features a 12V electric solenoid shift starter and engine controls (key switch, throttle and choke). This model replaces PA-68501, PA-CH730-0040, PA-68590 and PA-CH730-3040. Kohler Command Pro engines have tough features like hardened crankcase journals and hydraulic valve lifters while remaining user-friendly, efficient and reliable.

Key Specifications

BRAND Kohler

MODEL NUMBER CH730-3203

WARRANTY 3 Year Consumer & Commercial

SHIPPING WEIGHT 117

DISPLACEMENT 725cc

STARTER TYPE Electric

CRANKSHAFT ORIENTATION Horizontal

CRANKSHAFT TYPE Straight

FUEL SYSTEM Gasoline

GEAR REDUCTION No

CRANKSHAFT DIMENSIONS 1-7/16″ x 4.46″

CRANKSHAFT DIAMETER 1-7/16″

CRANKSHAFT LENGTH 4.46″

CRANKSHAFT END TAPPED SIZE 5/8 -18

CRANKSHAFT KEYWAY WIDTH 3/8″

CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE) Counterclockwise

CYLINDERS 2

CYLINDER BORE TYPE Cast Iron

AIR CLEANER TYPE Large Capacity Dual Element

FUEL PUMP Yes

OIL COOLER Yes

OIL CAPACITY 60

LOW OIL ALERT No

LOW OIL SHUTDOWN No

IGNITION SYSTEM Electronic

CARBURETOR TYPE High Performance Accelerator Pump

CHOKE CONTROL Manual and Remote

BOLT CIRCLE 5-5/8; 7-3/4

NOTES Engine Notes:

PTO HEIGHT 6 – 1/8
