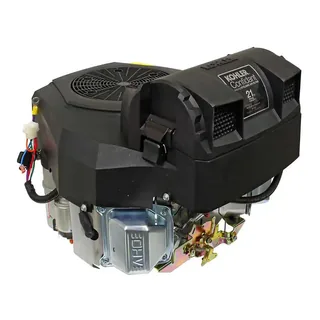

Kohler ZT720-3016 Vertical Engine

Kohler ZT720-3016 Vertical Engine, 21 HP, 1.0-inch x 3.16-inch Crankshaft, Recoil Start, Wide Area Walk-Behind Mower Repower Engine.

Key Specifications

BRAND Kohler

MODEL NUMBER ZT720-3016

WARRANTY 3 Year Consumer / 2 Year Commercial

SHIPPING WEIGHT 91

DISPLACEMENT 725cc

STARTER TYPE Recoil

CRANKSHAFT ORIENTATION Vertical

CRANKSHAFT TYPE Straight

FUEL SYSTEM Gasoline

CRANKSHAFT DIMENSIONS 1″ x 3.16″

CRANKSHAFT DIAMETER 1″

CRANKSHAFT LENGTH 3.16″

CRANKSHAFT END TAPPED SIZE 7/16 – 20

CRANKSHAFT KEYWAY WIDTH 1/4″

CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE) Counterclockwise

CYLINDERS 2

CYLINDER BORE TYPE Cast Iron

AIR CLEANER TYPE Heavy Duty Canister

FUEL PUMP Yes

OIL COOLER No

OIL CAPACITY 64

LOW OIL ALERT No

LOW OIL SHUTDOWN No

IGNITION SYSTEM Electronic

CARBURETOR TYPE Float

CHOKE CONTROL Remote

BOLT CIRCLE 10

NOTES Engine Notes:

PTO HEIGHT N/A
