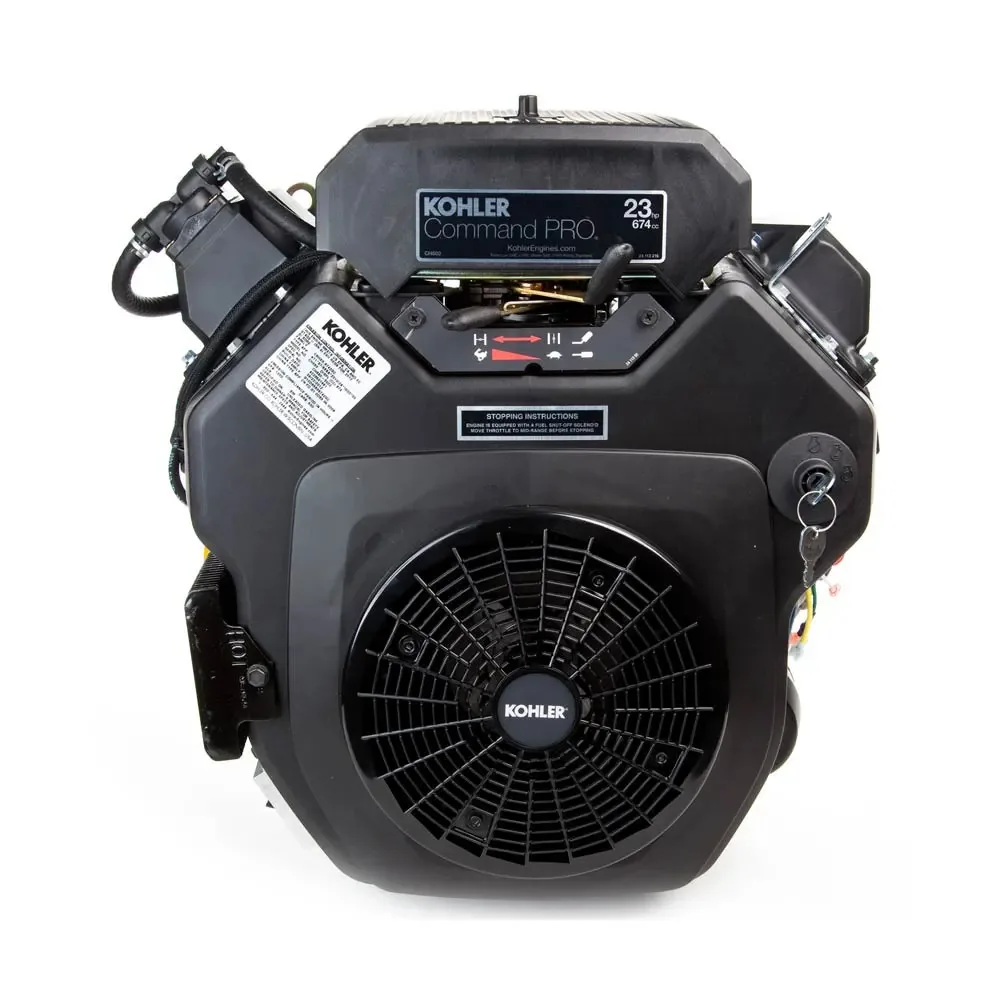

NEW Kohler CH680-3002 Horizontal Engine SALE !!

NEW Kohler CH680-3002 Horizontal Engine SALE !! 674 cc 22.5 Gross HP Horizontal Engine, 1-7/16-inch x 4.46-inch Crankshaft Replaces PA-66501, PA-76501.

Key Specifications

BRAND Kohler

MODEL NUMBER CH680-3002

WARRANTY 3 Year Consumer & Commercial

SHIPPING WEIGHT 107

DISPLACEMENT 674cc

STARTER TYPE Electric

CRANKSHAFT ORIENTATION Horizontal

CRANKSHAFT TYPE Straight

FUEL SYSTEM Gasoline

GEAR REDUCTION No

CRANKSHAFT DIMENSIONS 1-7/16″ x 4.46″

CRANKSHAFT DIAMETER 1-7/16″

CRANKSHAFT LENGTH 4.46″

CRANKSHAFT END TAPPED SIZE 5/8 -18

CRANKSHAFT KEYWAY WIDTH 3/8″

CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE) Counterclockwise

CYLINDERS 2

CYLINDER BORE TYPE Cast Iron

AIR CLEANER TYPE Large Capacity Dual Element

FUEL PUMP Yes

OIL COOLER No

OIL CAPACITY 60

LOW OIL ALERT No

LOW OIL SHUTDOWN No

IGNITION SYSTEM Electronic

CARBURETOR TYPE Smart-Choke

CHOKE CONTROL Manual and Remote

BOLT CIRCLE 5-5/8; 7-3/4

NOTES Engine Notes:

PTO HEIGHT 6 – 1/8
