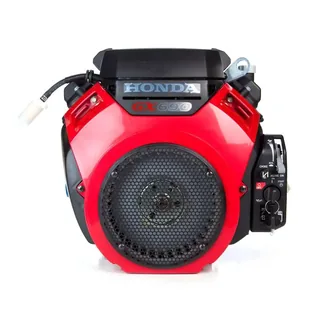

NEW Honda GX690 TXA2 Horizontal Engine SALE !!

NEW Honda GX690 TXA2 Horizontal Engine SALE !! is 688cc and puts out 22.1 net HP. This Honda GX V-Twin has a 1-1/8″ x 3.78″ crankshaft (Tapped 7/16-20). The engine has electric start, a 12V 17-amp charging system, key switch, manual choke and throttle controls, fuel pump and oil alert system. A fuel tank and muffler are not included but options are available for purchase on our website. Honda GX690 commercial V-Twin engines deliver economical and quiet operation without sacrificing superior performance and reliable power. Common applications for this engine include water pumps, small vehicles, commercial lawn and garden equipment, generators and more. Buyer protection package provides three-year commercial engine warranty. 50-State CARB Compliant. All engines purchased from us ship for free and are foam packed for added protection during transit.

Key Specifications

BRAND Honda

MODEL NUMBER GX690-TXA2

WARRANTY 3 Year Consumer & Commercial

SHIPPING WEIGHT 112

DISPLACEMENT 688cc

STARTER TYPE Electric

CRANKSHAFT ORIENTATION Horizontal

CRANKSHAFT TYPE Straight

FUEL SYSTEM Gasoline

GEAR REDUCTION No

CRANKSHAFT DIMENSIONS 1-1/8″ x 3.78″

CRANKSHAFT DIAMETER 1-1/8″

CRANKSHAFT LENGTH 3.78″

CRANKSHAFT END TAPPED SIZE 7/16 – 20

CRANKSHAFT KEYWAY WIDTH 1/4″

CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE) Counterclockwise

CYLINDERS 2

CYLINDER BORE TYPE Cast Iron Sleeve

AIR CLEANER TYPE Dual Element

FUEL PUMP Yes

OIL COOLER No

OIL CAPACITY 68

LOW OIL ALERT Yes

LOW OIL SHUTDOWN No

IGNITION SYSTEM Digital CDI with Variable Ignition Timing

CARBURETOR TYPE Two Barrel Float Valve, Internal Vent

CHOKE CONTROL Manual

BOLT CIRCLE 5,6-1/2,7-3/4

NOTES Engine Notes:

PTO HEIGHT 5 – 1/4
