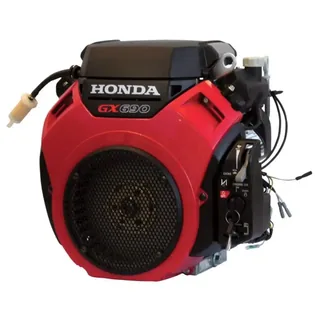

Honda GX690-TAF Horizontal Engine

Honda GX690-TAF Horizontal Engine 688cc, 1-1/8″ x 3.78″ Crankshaft, Model GX690-TAF / GX690RHTAF, Oil Pressure Indicator.

Key Specifications

BRAND Honda

MODEL NUMBER GX690RHTAF

WARRANTY 3 Year Limited

SHIPPING WEIGHT 110

DISPLACEMENT 688cc

STARTER TYPE Electric

CRANKSHAFT ORIENTATION Horizontal

CRANKSHAFT TYPE Straight

FUEL SYSTEM Gasoline

GEAR REDUCTION No

CRANKSHAFT DIMENSIONS 1-1/8″ x 3.55″

CRANKSHAFT DIAMETER 1-1/8″

CRANKSHAFT LENGTH 3.78″

CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE) Counterclockwise

CYLINDERS 2

CYLINDER BORE TYPE Cast Iron Sleeve

COOLING SYSTEM Air Cooled

AIR CLEANER TYPE Dual Element

FUEL PUMP Yes

OIL COOLER No

OIL CAPACITY 2 qt

LOW OIL ALERT Yes

IGNITION SYSTEM Digital CDI with Variable Ignition Timing

CARBURETOR TYPE Two Barrel Float Valve, Internal Vent

CHOKE CONTROL Manual

NOTES Engine Notes:

PTO HEIGHT 5 – 1/4
