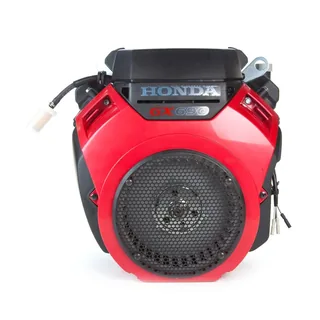

NEW Honda GX690 TDW Horizontal Engine SALE !!

NEW Honda GX690 TDW Horizontal Engine SALE !! 22.1 Net HP, 1 1/8″ x 3.78″ Crankshaft, Tapped 7/16-20, 17 Amp Charging System, Remote Throttle and Choke, No Key Switch, No Fuel Tank, No Muffler.

Key Specifications

BRAND Honda

MODEL NUMBER GX690-TDW

WARRANTY 3 Year Consumer & Commercial

SHIPPING WEIGHT 110

DISPLACEMENT 688cc

STARTER TYPE Electric

CRANKSHAFT ORIENTATION Horizontal

CRANKSHAFT TYPE Straight

FUEL SYSTEM Gasoline

GEAR REDUCTION No

CRANKSHAFT DIMENSIONS 1-1/8″ x 3.78″

CRANKSHAFT DIAMETER 1-1/8″

CRANKSHAFT LENGTH 3.78″

CRANKSHAFT END TAPPED SIZE 7/16 – 20

CRANKSHAFT KEYWAY WIDTH 1/4″

CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE) Counterclockwise

CYLINDERS 2

CYLINDER BORE TYPE Integrated

AIR CLEANER TYPE Dual Element

FUEL PUMP Yes

OIL COOLER No

OIL CAPACITY 68

LOW OIL ALERT No

LOW OIL SHUTDOWN No

IGNITION SYSTEM Digital CDI with Variable Ignition Timing

CARBURETOR TYPE Two Barrel Float Valve, Internal Vent

CHOKE CONTROL Remote (Wire)

BOLT CIRCLE 5,6-1/2,7-3/4

NOTES Engine Notes:

PTO HEIGHT 5 – 1/4
