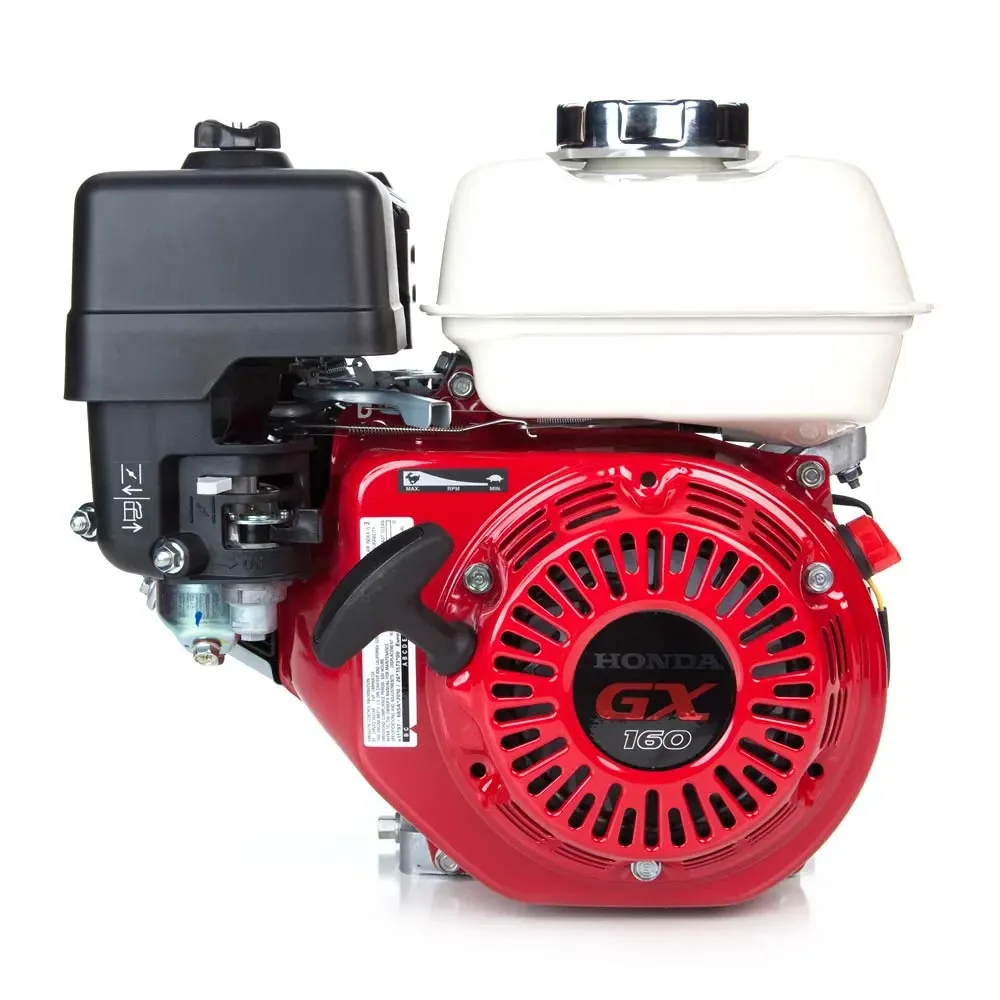

NEW Honda GX160 HX2 Horizontal Engine SALE !!

NEW Honda GX160 HX2 Horizontal Engine SALE !! is 160cc and puts out 4.8 net HP. This Honda GX has a 3/4″ x 1.96″ crankshaft. The engines has a recoil start, a standard muffler, fuel tank, and oil alert system, but no clutch. Honda GX160 commercial engines deliver economical and quiet operation without sacrificing superior performance and reliable power. Applications requiring lower speeds are ideal for gear reduction engines. Buyer protection package provides three-year commercial engine warranty. 50-State CARB Compliant. All engines purchased from us ship for free and are foam packed for added protection during transit.

Key Specifications

BRAND Honda

MODEL NUMBER GX160-HX2

REPLACES MODELS GX160U1HX2, GX160-HX2, GX160UT1HX2, GX160-UT1HX2, GX160UT1-HX2, GX160UT2HX2, GX160UT2-HX2, GX160-UT2HX2, GX160K1HX2, GX160-U1-HX2

WARRANTY 3 Year Consumer & Commercial

SHIPPING WEIGHT 47

DISPLACEMENT 163cc

STARTER TYPE Recoil

CRANKSHAFT ORIENTATION Horizontal

CRANKSHAFT TYPE Gear Reduction

FUEL SYSTEM Gasoline

GEAR REDUCTION 6:01

CRANKSHAFT DIMENSIONS 3/4″ x 1-31/32″

CRANKSHAFT DIAMETER 3/4″

CRANKSHAFT LENGTH 1-31/32″

CRANKSHAFT END TAPPED SIZE N/A

CRANKSHAFT KEYWAY WIDTH 3/16″

CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE) Counterclockwise

CYLINDERS 1

CYLINDER BORE TYPE Cast Iron

AIR CLEANER TYPE Dual Element

FUEL PUMP No

OIL COOLER No

OIL CAPACITY 20

LOW OIL ALERT No

LOW OIL SHUTDOWN Yes

IGNITION SYSTEM Transistorized Magneto

CARBURETOR TYPE Float

CHOKE CONTROL Manual

BOLT CIRCLE None

NOTES Engine Notes:

PTO HEIGHT 4 – 11/64
