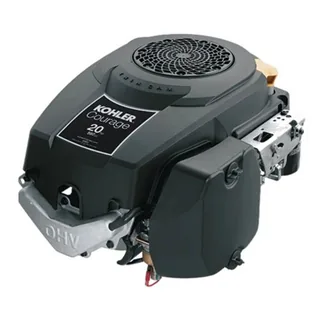

Kohler SV601-3213 Vertical Engine, Replaces SV600-3229

Kohler SV601-3213 Vertical Engine, Replaces SV600-3229 s 597cc and puts out 20 HP (maximum horsepower). This SV600 has a 1″ x 3-5/32″ crankshaft, a 12V electric starter and 15-amp charging. It replaces SV600-3229, PA-SV600-0024 and PA-SV600-0212. Courage Series engines are dependable and user-friendly while providing professional-grade power thanks to features like steel-forged crankshafts and dual ball bearings. Buyer protection package provides a two-year consumer engine warranty. 50-State CARB Compliant. All engines purchased from us ship for free and are foam packed for added protection during transit.

Key Specifications

BRAND Kohler

MODEL NUMBER SV601-3213

WARRANTY 2 Year Consumer / 90 Day Commercial

SHIPPING WEIGHT 79

DISPLACEMENT 597cc

STARTER TYPE Electric

CRANKSHAFT ORIENTATION Vertical

CRANKSHAFT TYPE Straight

FUEL SYSTEM Gasoline

GEAR REDUCTION No

CRANKSHAFT DIMENSIONS 1″ x 3-5/32″

CRANKSHAFT LENGTH 3-5/32″

CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE) Counterclockwise

BEARING TYPE Standard

CYLINDERS 1

CYLINDER BORE TYPE Cast Iron Sleeve

AIR CLEANER TYPE Standard

FUEL TANK No

FUEL PUMP No

OIL COOLER No

IGNITION SYSTEM Electronic

CARBURETOR TYPE Bowl

CHOKE CONTROL Remote

MAX RPM 3300

NOTES Engine Notes:
