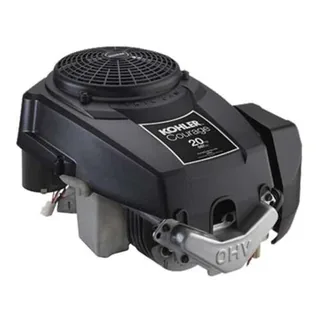

Kohler SV601-3212 Vertical Engine

Kohler SV601-3212 Vertical Engine 1-inch x 3-5/32-inch Crankshaft, 4-Cycle, Air Cooled, Single Cylinder, Replaces PA-SV620-0215, PA-SV620-3215.

Key Specifications

BRAND Kohler

MODEL NUMBER PA-SV601-3212

REPLACES MODELS PA-SV620-0215, PA-SV620-3215

WARRANTY 2 Year Consumer / 90 Day Commercial

SHIPPING WEIGHT 90

DISPLACEMENT 597cc

STARTER TYPE Electric

CRANKSHAFT ORIENTATION Vertical

FUEL SYSTEM Gasoline

CRANKSHAFT DIMENSIONS 1″ x 3-5/32″

CRANKSHAFT DIAMETER 1″

CRANKSHAFT LENGTH 3-5/32″

CRANKSHAFT END TAPPED SIZE 7/16 – 20

CRANKSHAFT KEYWAY WIDTH 1/4″

CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE) Counterclockwise

CYLINDERS 1

CYLINDER BORE TYPE Cast Iron Sleeve

AIR CLEANER TYPE Dual Element

FUEL PUMP No

OIL COOLER No

OIL CAPACITY 40

LOW OIL ALERT No

LOW OIL SHUTDOWN No

IGNITION SYSTEM Electronic

CARBURETOR TYPE Float

CHOKE CONTROL Remote

BOLT CIRCLE None

NOTES Engine Notes:

PTO HEIGHT N/A
