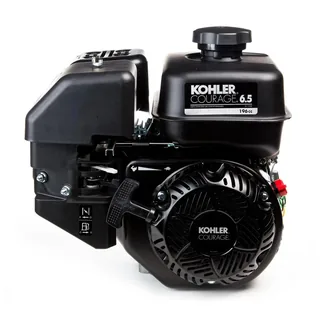

Kohler SH265-3011 Horizontal Engine

Kohler SH265-3011 Horizontal Engine is 196cc and puts out 6.5 HP (maximum horsepower). This SH265 has a 3/4″ x 2.42″ crankshaft, an indexable recoil starter and a large capacity muffler with heat shield.

Key Specifications

BRAND Kohler

MODEL NUMBER SH265-3011

WARRANTY 2 Year Consumer / 90 Day Commercial

SHIPPING WEIGHT 40

DISPLACEMENT 196cc

STARTER TYPE Recoil

CRANKSHAFT ORIENTATION Horizontal

CRANKSHAFT TYPE Straight

FUEL SYSTEM Gasoline

GEAR REDUCTION No

CRANKSHAFT DIMENSIONS 3/4″ x 2.42″

CRANKSHAFT DIAMETER 3/4″

CRANKSHAFT LENGTH 2.42″

CRANKSHAFT END TAPPED SIZE 5/16 – 24

CRANKSHAFT KEYWAY WIDTH 3/16″

CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE) Counterclockwise

CYLINDERS 1

CYLINDER BORE TYPE Cast Iron

AIR CLEANER TYPE Dual Element

FUEL PUMP No

OIL COOLER No

OIL CAPACITY 20

LOW OIL ALERT No

LOW OIL SHUTDOWN No

IGNITION SYSTEM Electronic

CARBURETOR TYPE Bowl

CHOKE CONTROL Manual and Remote

BOLT CIRCLE None

NOTES Engine Notes:

PTO HEIGHT 4 – 11/64
