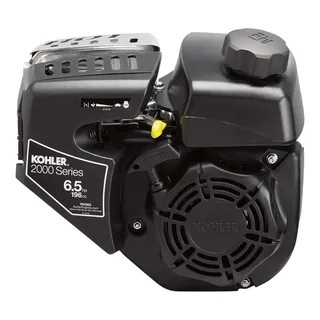

Kohler RH265-3103 Horizontal Engine

Kohler RH265-3103 Horizontal Engine is 196cc and puts out 6.5 HP (maximum horsepower). This RH265 has a 0.75″ x 2.42″ crankshaft, an easy-pull recoil starter, quiet muffler with heat shield and variable speed.

Key Specifications

BRAND Kohler

MODEL NUMBER PA-RH265-3103

REPLACES MODELS PA-RH265-0001

WARRANTY 2 Year Consumer / 90 Day Commercial

SHIPPING WEIGHT 33

DISPLACEMENT 196cc

STARTER TYPE Recoil

CRANKSHAFT ORIENTATION Horizontal

CRANKSHAFT TYPE Straight

FUEL SYSTEM Gasoline

GEAR REDUCTION No

CRANKSHAFT DIMENSIONS 0.75″ x 2.42″

CRANKSHAFT DIAMETER 0.75″

CRANKSHAFT LENGTH 2.42″

CRANKSHAFT END TAPPED SIZE 5/16 – 24

CRANKSHAFT KEYWAY WIDTH 3/16″

CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE) Counterclockwise

CYLINDERS 1

AIR CLEANER TYPE Foam Element

FUEL PUMP No

OIL COOLER No

OIL CAPACITY 20

LOW OIL ALERT No

LOW OIL SHUTDOWN No

IGNITION SYSTEM Electronic

CARBURETOR TYPE Float

CHOKE CONTROL Manual

BOLT CIRCLE 3 -5/8″

NOTES Engine Notes:

PTO HEIGHT 4 – 11/64
