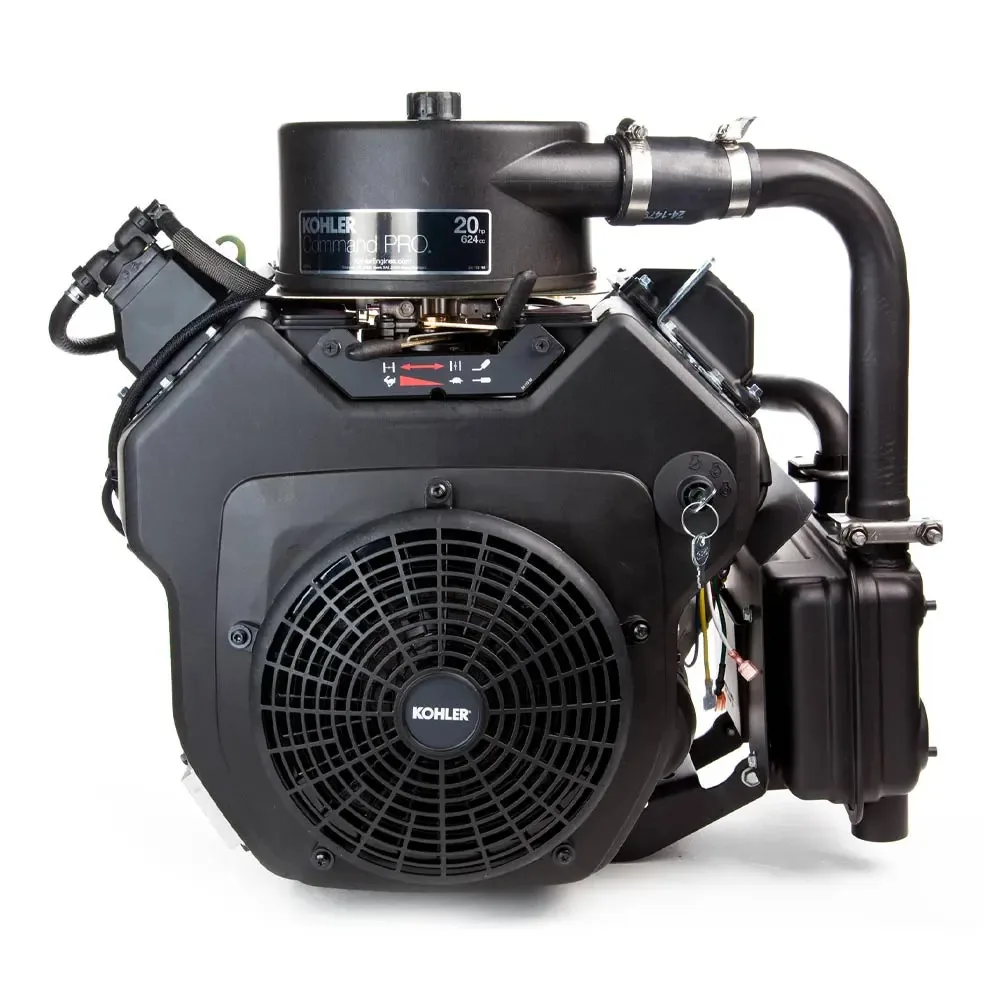

Kohler CH640-3203 Horizontal Engine Replaces PA-CH640-3005

<p>Kohler CH640-3203 Horizontal Engine Replaces PA-CH640-3005 1-1/8 inch x 4 inch Crankshaft Replaces Old # PA-CH640-3005.</p> <p>Key Specifications</p> <p>BRAND Kohler</p> <p>MODEL NUMBER CH640-3005</p> <p>WARRANTY 3 Year Consumer &amp; Commercial</p> <p>SHIPPING WEIGHT 107</p> <p>DISPLACEMENT 674cc</p> <p>STARTER TYPE Electric</p> <p>CRANKSHAFT ORIENTATION Horizontal</p> <p>CRANKSHAFT TYPE Straight</p> <p>FUEL SYSTEM Gasoline</p> <p>GEAR REDUCTION No</p> <p>CRANKSHAFT DIMENSIONS 1-1/8″ x 4″</p> <p>CRANKSHAFT DIAMETER 1-1/8″</p> <p>CRANKSHAFT LENGTH 4″</p> <p>CRANKSHAFT END TAPPED SIZE 7/16 – 20</p> <p>CRANKSHAFT KEYWAY WIDTH 1/4″</p> <p>CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE) Counterclockwise</p> <p>CYLINDERS 2</p> <p>CYLINDER BORE TYPE Cast Iron</p> <p>AIR CLEANER TYPE Large Capacity Dual Element</p> <p>FUEL PUMP Yes</p> <p>OIL COOLER No</p> <p>OIL CAPACITY 64</p> <p>LOW OIL ALERT Yes</p> <p>LOW OIL SHUTDOWN Yes</p> <p>IGNITION SYSTEM Electronic</p> <p>CARBURETOR TYPE Smart-Choke</p> <p>CHOKE CONTROL Manual and Remote</p> <p>MAX RPM 3750</p> <p>BOLT CIRCLE 5-5/8; 7-3/4</p> <p>NOTES Engine Notes:</p> <p>PTO HEIGHT 6 – 1/8</p>
