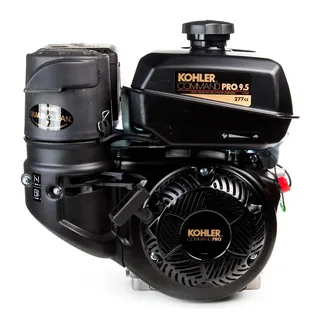

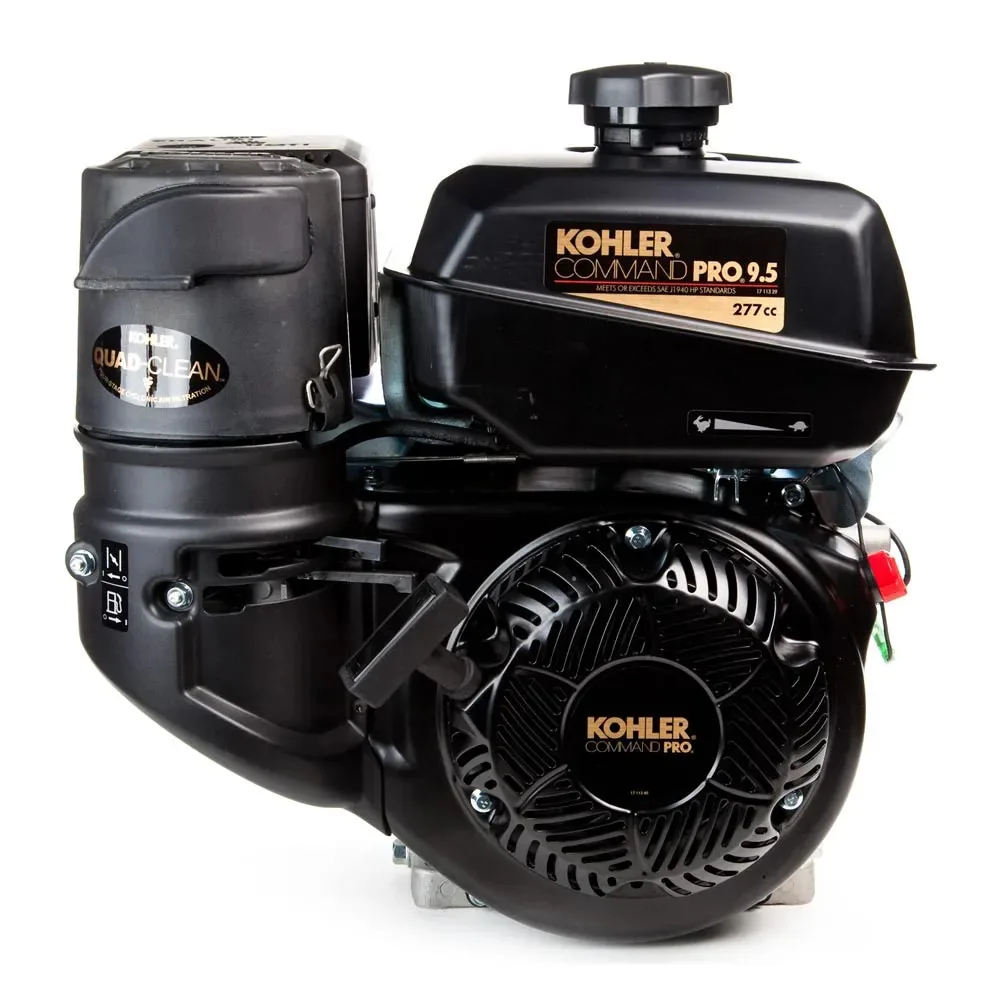

Kohler CH395-3149 Horizontal Engine Replaces CH395-0011

<p>Kohler CH395-3149 Horizontal Engine Replaces CH395-0011 This CH395 has a 1″ x 3.49″ crankshaft, indexable recoil starter, large capacity muffler with heat shield and spark arrestor and variable speed. Kohler Command Pro engines have tough features like cast iron cylinder liners and heavy duty air filtration systems while remaining user-friendly, efficient and reliable. CH395 Series engines can be used for a variety of applications including edgers, compressors, portable generators, pressure washers, tillers, aerators and more.</p> <p>Key Specifications</p> <p>BRAND Kohler</p> <p>MODEL NUMBER CH395-3149</p> <p>REPLACES MODELS CH395-3011 CH395-0011</p> <p>WARRANTY 3 Year Consumer &amp; Commercial</p> <p>SHIPPING WEIGHT 62</p> <p>DISPLACEMENT 277cc</p> <p>STARTER TYPE Recoil</p> <p>CRANKSHAFT ORIENTATION Horizontal</p> <p>CRANKSHAFT TYPE Straight</p> <p>FUEL SYSTEM Gasoline</p> <p>GEAR REDUCTION No</p> <p>CRANKSHAFT DIMENSIONS 1″ x 3.49″</p> <p>CRANKSHAFT DIAMETER 1″</p> <p>CRANKSHAFT LENGTH 3.49″</p> <p>CRANKSHAFT END TAPPED SIZE 7/16 – 20</p> <p>CRANKSHAFT KEYWAY WIDTH 1/4″</p> <p>CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE) Counterclockwise</p> <p>CYLINDERS 1</p> <p>CYLINDER BORE TYPE Cast Iron</p> <p>AIR CLEANER TYPE Quad-Clean 4-Stage All-Season Heavy Duty Cyclonic</p> <p>FUEL PUMP No</p> <p>OIL COOLER No</p> <p>OIL CAPACITY 45</p> <p>LOW OIL ALERT No</p> <p>LOW OIL SHUTDOWN Yes</p> <p>IGNITION SYSTEM Electronic</p> <p>CARBURETOR TYPE Bowl</p> <p>CHOKE CONTROL Manual</p> <p>MAX RPM 3750</p> <p>BOLT CIRCLE 5,6-1/2</p> <p>NOTES Engine Notes:</p> <p>PTO HEIGHT 5 – 1/4</p>
