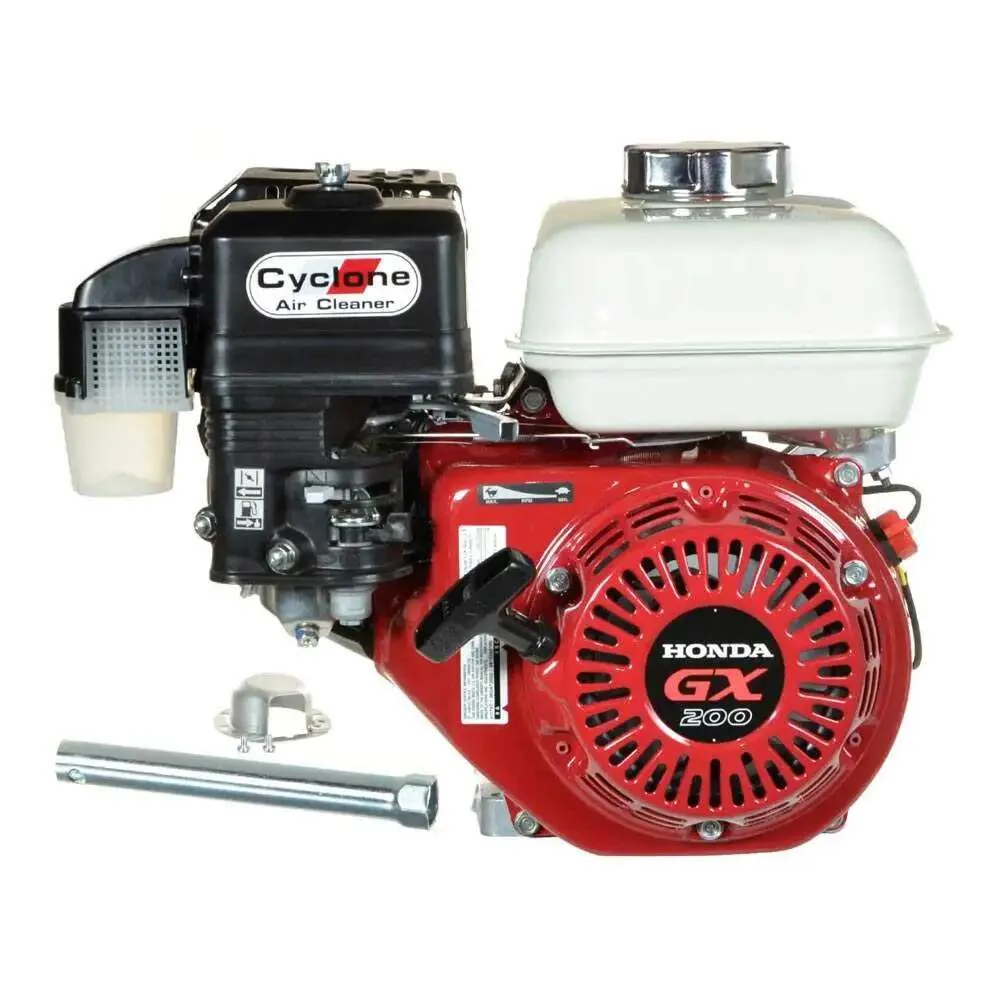

Honda GX200 QC9 Horizontal Engine Replaces GX200 QXC9

<p>Honda GX200 QC9 Horizontal Engine Replaces GX200 QXC9 196cc, 5.8 Net HP, GX200 Series, 3/4″ x 2-7/16″ Crankshaft, 3/16″ Keyway, Cyclone Air Filter for Fine Dust Filtration, Model GX200UT2QC9 / GX200 QC9, Replaces GX200-QXC9.</p> <p>Key Specifications</p> <p>BRAND Honda</p> <p>MODEL NUMBER GX200-QC9</p> <p>WARRANTY 3 Year Consumer &amp; Commercial</p> <p>SHIPPING WEIGHT 42</p> <p>DISPLACEMENT 196cc</p> <p>STARTER TYPE Recoil</p> <p>CRANKSHAFT ORIENTATION Horizontal</p> <p>CRANKSHAFT TYPE Straight</p> <p>FUEL SYSTEM Gasoline</p> <p>GEAR REDUCTION No</p> <p>CRANKSHAFT DIMENSIONS 3/4″ x 2-7/16″</p> <p>CRANKSHAFT DIAMETER 3/4″</p> <p>CRANKSHAFT LENGTH 2-7/16″</p> <p>CRANKSHAFT END TAPPED SIZE 5/16 – 24</p> <p>CRANKSHAFT KEYWAY WIDTH 3/16″</p> <p>CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE) Counterclockwise</p> <p>BEARING TYPE Ball</p> <p>CYLINDERS 1</p> <p>CYLINDER BORE TYPE Cast Iron</p> <p>AIR CLEANER TYPE Cyclone</p> <p>FUEL PUMP No</p> <p>OIL COOLER No</p> <p>OIL CAPACITY 20</p> <p>LOW OIL ALERT No</p> <p>LOW OIL SHUTDOWN Yes</p> <p>IGNITION SYSTEM Transistorized Magneto</p> <p>CARBURETOR TYPE Float</p> <p>CHOKE CONTROL Manual</p> <p>BOLT CIRCLE 3 – 5/8</p> <p>NOTES Engine Notes:</p> <p>PTO HEIGHT 4 – 11/64</p>
