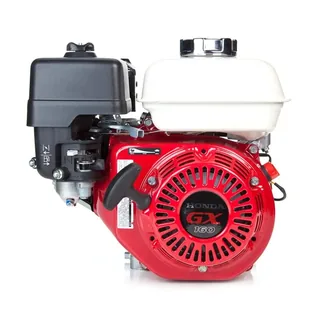

Honda GX160 TX2 Horizontal Engine

Honda GX160 TX2 Horizontal Engine 160cc, 4.8 Net HP, 5/8″ x 2 7/16″ Threaded Crankshaft, Fuel Tank, Oil Alert System.

Key Specifications

BRAND Honda

MODEL NUMBER GX160-TX2

REPLACES MODELS GX160T1TX2, GX160-TX2, GX160UT2TX2, GX160UT1TX2, GX160-UT2TX2, GX160UT2-TX2, GX160-UT2-TX2, GX160TX2, GX160K1TX2, GX160UT2TX2

WARRANTY 3 Year Consumer & Commercial

SHIPPING WEIGHT 41

DISPLACEMENT 163cc

STARTER TYPE Recoil

CRANKSHAFT ORIENTATION Horizontal

CRANKSHAFT TYPE Threaded

FUEL SYSTEM Gasoline

GEAR REDUCTION No

CRANKSHAFT DIMENSIONS 5/8-18″ x 2-7/16″

CRANKSHAFT LENGTH 2-7/16″

CRANKSHAFT END TAPPED SIZE N/A

CRANKSHAFT KEYWAY WIDTH None

CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE) Counterclockwise

CYLINDERS 1

CYLINDER BORE TYPE Cast Iron

AIR CLEANER TYPE Dual Element

FUEL PUMP No

OIL COOLER No

OIL CAPACITY 20

LOW OIL ALERT No

LOW OIL SHUTDOWN Yes

IGNITION SYSTEM Transistorized Magneto

CARBURETOR TYPE Float

CHOKE CONTROL Manual

BOLT CIRCLE 3 – 5/8

NOTES Engine Notes:

PTO HEIGHT 4 – 11/64
