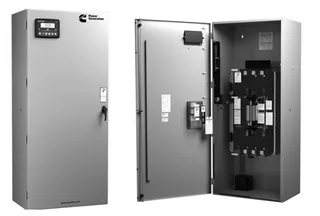

Cummins OTEC 480 Volt 125 Amp 3 Phase PowerCommand 40 Automatic Transfer Switch NEMA 1 | A066Y093

Cummins PowerCommand 40 Control OTEC Transfer Switch 125A 480V NEMA 1

The OTEC 480V 125A 3 Phase Automatic Transfer Switch features PowerCommand 40 Control, a microprocessor-based controller with LCD Display, and a comprehensive list of functions. Cummins OTEC A066Y093 Open Transition transfer switches are a perfect fit for a wide range of commercial and light industrial transfer switch applications.

- Break-Before-Make Switch
- Electrically operated—Mechanically held
- Electrical and mechanical interlocks prevent inadvertent interconnection.
- NEMA 1 enclosure for indoor installation only.

This 480V 125A Cummins Transfer Switch provides the basic hardware and features required for automatic operation of a standby generator.

Cummins 480 Volt Transfer Switch Control

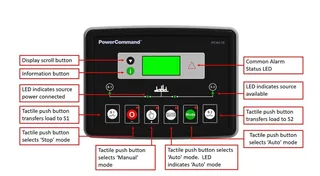

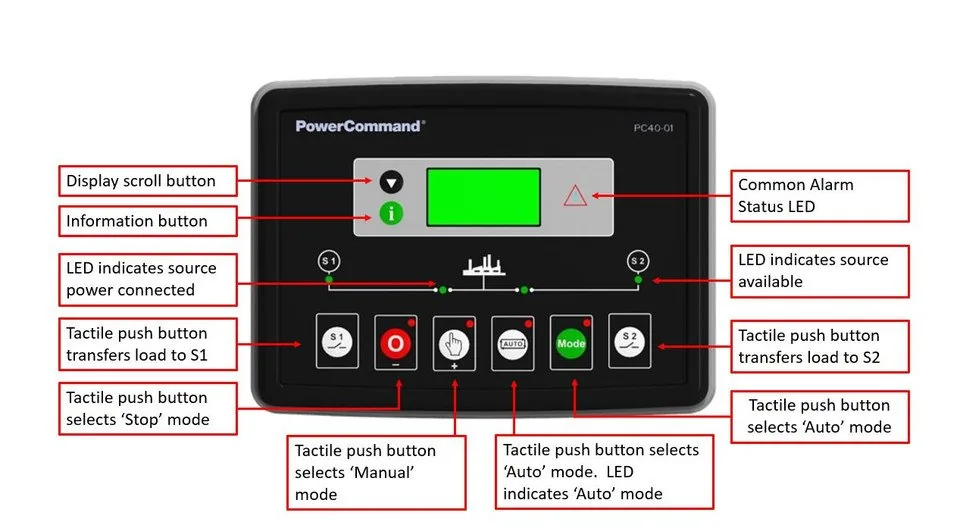

PowerCommand 40 is a microprocessor controller with LCD digital display, a full list of functions, and tactile soft switches for straightforward operation and navigation. Highlighted controls include PC software configuration with 3 phase sensing on both sources; manual restore to S1; synchronization check; and event logging. The S-6560 Specification Sheet includes all the benefits and features.

With a programmed transition, switch timing allows the Cummins ATS to disconnect the load from both sources for a programmed time period—especially important for large inductive loads.

Cummins 125 Amp ATS Advanced Mechanism

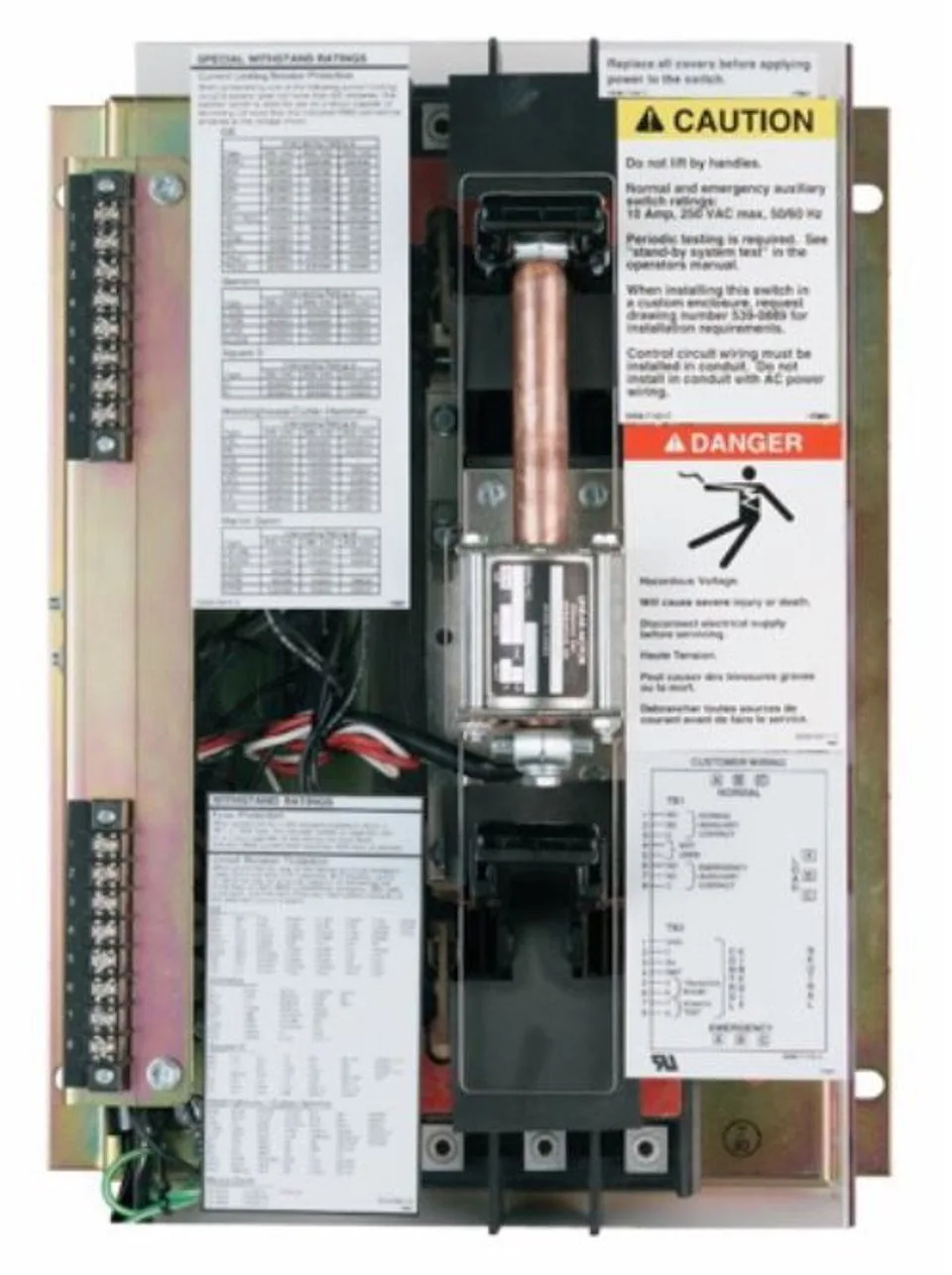

The ATS mechanism operates electrically with a mechanical hold in the Source 1 and Source 2 positions. Cummins OTEC 480 Volt 125 Amp Automatic Transfer Switch Series switches perform a break-before-make action while electrical interlocks prevent interconnection of the normal and emergency signals. High pressure silver alloy contacts resist burning or pitting; arcing surfaces protect the main contacts. Multiple leaf chutes cool and quench arcs, further protecting the contacts. A protective cover allows inspection while preventing accidental contact with energized surfaces.

UL-1008 certification including the contact assemblies covers applications requiring high endurance switching capability for the life of the ATS.

Cummins OTEC Transfer Switch Specifications

Voltage Rating 277/480-Volts 3 Phase AC at 60 Hertz.

Transition Modes Open Delayed;

Open-In Phase—capable of programmed transition backup

Arc Interruption Multiple Leave Arc Chutes.

Neutral Bar Rated for Full Current with Lugs—Standard on 3 Pole transfer switches.

Auxiliary Contacts Two isolated, normally open contacts for customer use close to indicate switch position. Wired to terminal block, rated at 10A and 250-Volts.

Surge Rating Conforms to IEEEC62.41 and IEEE C62.42

Transfer Time Total transfer time source to source does not exceed 6 cycles at 60 Hertz (does not include programmed transition).

Manual Operation Manual transfer capable with all sources disconnected.

Product Specifications

Model

Model Number; A066Y093

Manufacturer; Cummins Onan

Made In USA; No

Voltage; 277/480V Three Phase

Enclosure; NEMA 1 – Indoor Only

UL Listed; Yes

Type; Automatic Transfer Switch

Transfer Switch Model; Cummins OTEC PowerCommand 40

Features

Weight; 82 lbs

Dimensions; 27H x 20.5W x 12D

Warranty Information

Consumer Warranty; 1 Year Limited

Fuel

Fuel Gauge; No

Transfer Switches

Transfer Switch Model; Cummins OTEC PowerCommand 40

Transfer Switch Amps; 125 Amps

Transfer Switch Circuits; None

Ats Poles; 3 Pole
