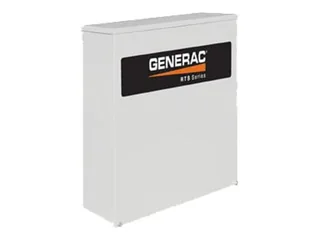

Generac 400 Amp ATS 120/208 3 Phase NEMA 3R Cabinet

Generac Power Systems RTSN400G3 Details and Specifications

Generac 400 Amp ATS 120/208 3 Phase NEMA 3R Cabinet.

The transfer switch monitors utility power and signals the generator to start when utility power is interrupted. When utility power returns, the transfer switch returns the electrical load from the generator back to the utility. This ensures your most important electrical loads are powered, within seconds, even when you’re away.

All RTS transfer switches are housed in a NEMA/UL Type 3R enclosure, with electrostatically applied and baked powder paint. The Heavy Duty Generac Contactor is a UL recognized device, designed for years of service. The control at the generator handles all the timing, sensing and exercising functions. Designed to operate with the digital Nexus controller used on liquid-cooled QT series gaseous generators from 22- 150 kW.

Product Specifications

Model

Model Number; RTSN400G3

Manufacturer; Generac Power Systems

Made In USA; Yes

Voltage; 120/208V Three Phase

Enclosure; Nema 3R Indoor/Outdoor

UL Listed; Yes

Type; Automatic Transfer Switch

Transfer Switch Model; RTS

Features

Dimensions; 36.1H x 24W x 10D

Warranty Information

Consumer Warranty; 5 Year Limited

Commercial Warranty; 5 Year Limited

Alternator

Frequency; 60Hz

Fuel

Fuel Gauge; No

Transfer Switches

Transfer Switch Amps; 400 Amps

Transfer Switch Circuits; Whole Panel
