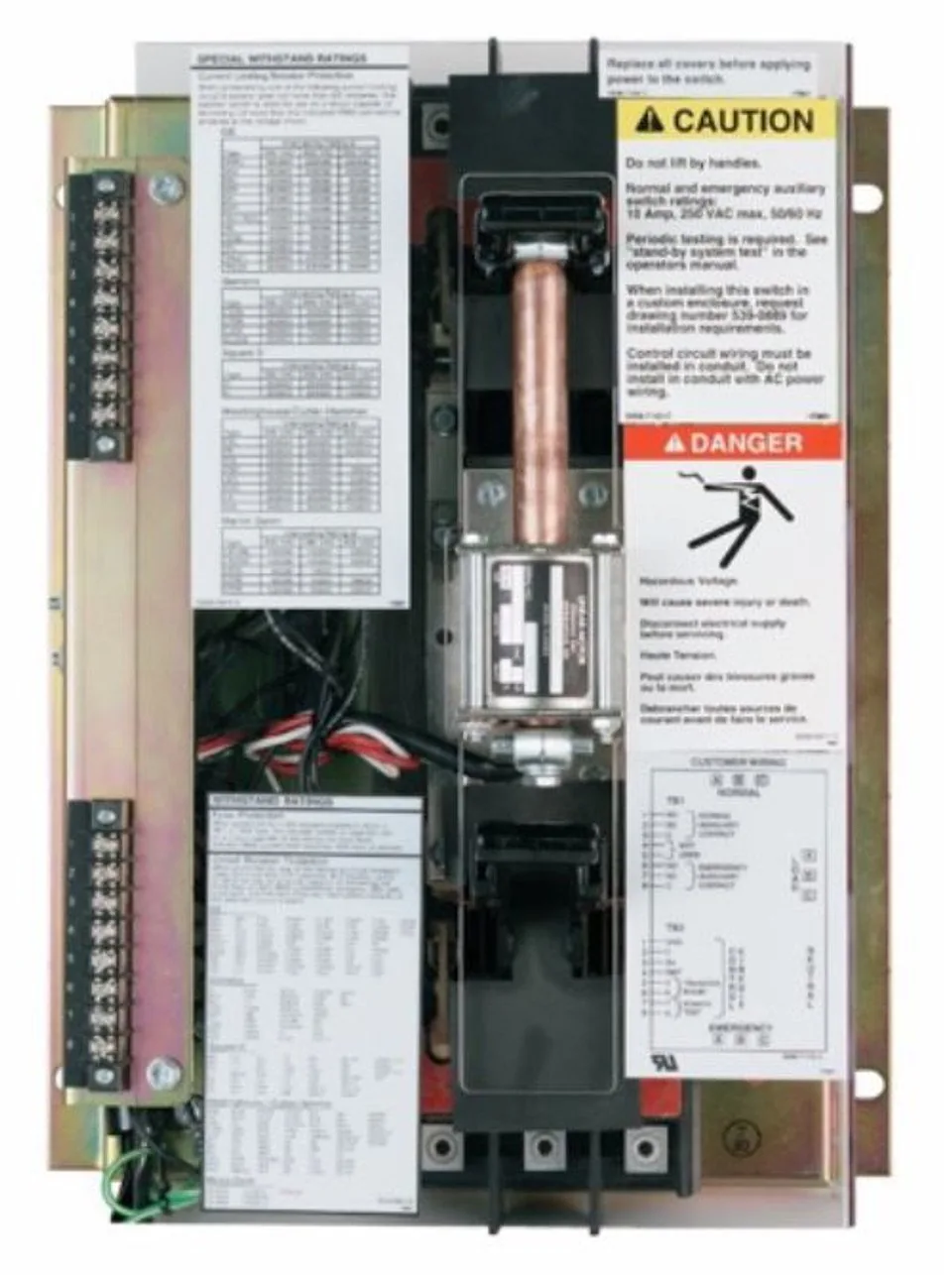

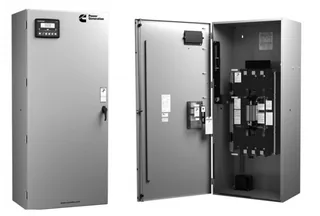

Cummins Onan OTEC 600 Amp 208V 3 Phase Automatic Transfer Switch Nema 1 | A066Y111

Cummins Onan OTEC 600 Amp 208V 3 Phase Transfer Switch

OTEC transfer switches are designed for operation and switching of electrical loads between primary power and standby generator sets. The switches monitor both power sources, signal generator set startup, automatically transfer power, and return the load to the primary power source once a stable utility is available.

NEMA 1 Automatic Transfer Switch for Indoor Use Only.

Features:

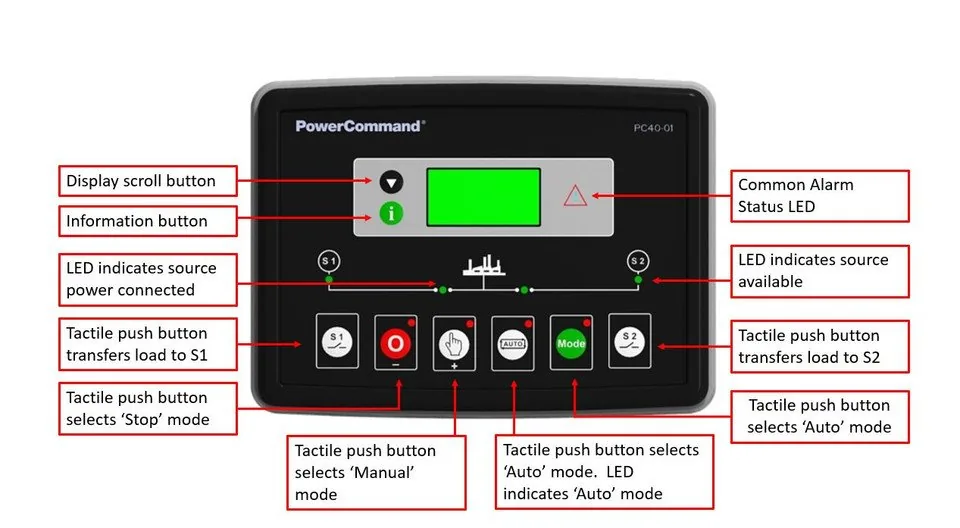

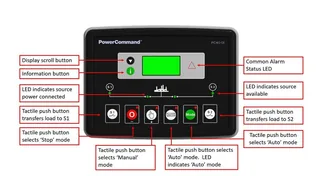

Microprocessor Control: Easy-to-use, standard control, LEDs display transfer switch status, push buttons allow operator to activate control test, exercise timing and transfer mode.
Programmed Transition: Open transition timing can be adjusted to completely disconnect the load from both sources for a programmed time period.
Positive Interlocking: Mechanical and electrical interlocking prevent source-to-source connection through the power or control wiring.
Easy Service/Access: Single-plug harness connection and compatible terminal markings simplify servicing. Access space is ample. Door-mounted controls are field-programmable, no tool is required.

Compatible With: Cummins Onan Connect Series 208V 3 Phase

UL 1008 Listed

Product Specifications

Model

Model Number; A066Y111

Manufacturer; Cummins Onan

Rated Amps; 600 Amps

Voltage; 120/208V 3 Phase

Enclosure; NEMA 1 – Indoor Only

UL Listed; UL 1008

Type; Automatic Transfer Switch

Transfer Switch Model; OTEC

Features

Weight; 225 lbs

Dimensions; 54H x 25.5W x 18D

Warranty Information

Consumer Warranty; 1 Year Limited

Fuel

Fuel Gauge; No

Transfer Switches

Transfer Switch Model; A066Y111

Transfer Switch Amps; 600 Amps

Transfer Switch Circuits; None

Ats Poles; 3 Pole

Transfer Switch Weight; 225 lbs
