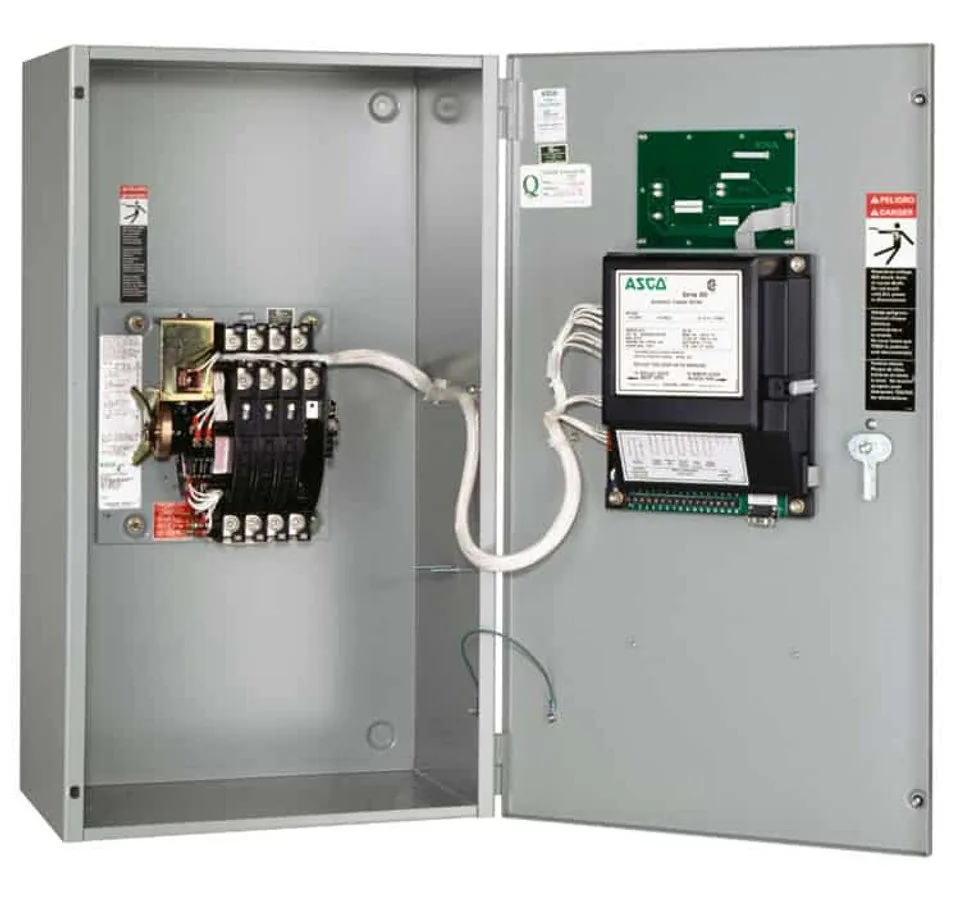

Briggs and Stratton 285 Series By Asco Automatic Transfer Switch 200 Amp 3 Phase 240V | 71107

Residential/Light Commercial Power Transfer Switches. 24 Hour protection no matter when trouble strikes. A B&S 285 Series Automatic Transfer Switch by ASCO provides all the intelligence your generator needs to make sure the power stays on when utility power fails. It automatically senses loss of utility power, and signals your generator to start and restore power to your business or home. A Series 285 Automatic Transfer Switch will automatically transfer your vital loads back to utility power when it has been restored. Working hand in hand with your generator, a Series 285 Automatic Transfer Switch silently provides dependable 24 hour protection from a power failure, and springs into action only when needed.

Features:
User-friendly control interface with intuitive symbols and visual indicators to inform operator of transfer switch and power source status.

Listed to UL 1008 for optional standby systems.

Meets Article 702, NFPA-70 National Electric Code (NEC) requirements.

200 Amp, 3 Phase, 240V.

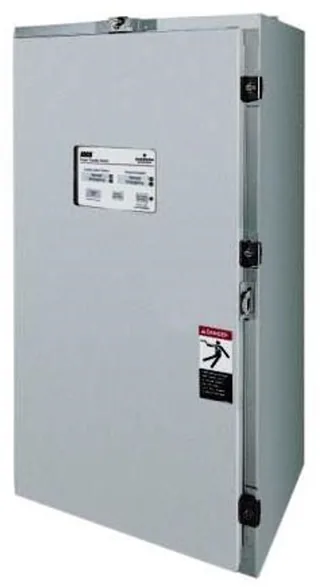

Nema 3R Outdoor enclosure with hinged door design.

Product Specifications

Model

Model Number; 71107

Manufacturer; ASCO

Voltage; 120/240V Three Phase

Enclosure; Nema 3R Indoor/Outdoor Rated

Transfer Switch Model; 71107

Features

Weight; 49 lbs

Dimensions; 24L x 16W x 10D

Warranty Information

Consumer Warranty; 3 Year Limited

Fuel

Fuel Gauge; No

Transfer Switches

Transfer Switch Amps; 200

Ats Poles; 3 Pole
