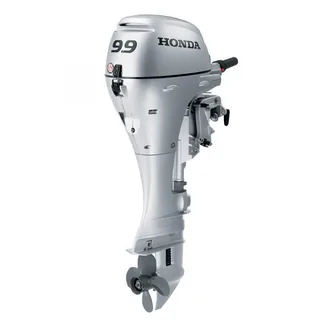

2024 HONDA 9.9 HP BF10DK3LHS Outboard

Specifications

Model

9.9 HP BF10DK3LHS

Model Year

2024

SKU

BF10DK3LHS

Weight

98 lb

Manufacturer

Honda

Country Of Manufacture

Japan

Horsepower

9.9hp @ 5,500 RPM

Shaft Length

20″ (Long)

Steering

Tiller

Starting

Electric

Trim & Tilt

Manual

Type

4-Stroke OHV, 2 Cylinder/4 Valves

Displacement

222 cc (13.5 cubic inches)

Bore & Stroke

58 mm x 42 mm (2.3 x 1.7 inches)

Full Throttle RPM Range

4,500-5,500 RPM

Cooling System

Water Cooled

Fuel Delivery

1 Carburetor

Ignition System

PGM-IG

Starting System

Electric

Exhaust

Through Hub

Lubrication

Wet Sump

Trim Range

5-Stage 4°-8°-12°-16°-20°

Tilt Range

71°

Gear Ratio

2.33:1

Gear Shift

F-N-R

Alternator with Voltage Regulator

12-Amp (148 Watt)

Propeller

4-Blade Aluminum

Diameter x Pitch

9.25 x 8 Inches

Oil Pressure Alert

Standard

Temperature Alert

Standard

Rev-Limiter

Standard

Overall Width

345 mm / 13.6 in.

Transom Height

L Type 508 mm / 20 in.

What’s In The Box

- Fuel Tank
- Aluminum Propeller
- Owner’s Manual & Tool Kit
- True 5-Year Warranty
