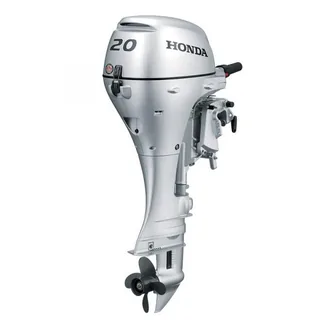

2024 HONDA 20 HP BF20D3LHT Outboard

Specifications

Model

20 HP BF20D3LHT

Model Year

2024

SKU

BF20D3LHT

Weight

130 lb

Manufacturer

Honda

Country Of Manufacture

Japan

Horsepower

20 hp @ 5,500 RPM

Shaft Length

20″ (Long)

Steering

Tiller

Starting

Electric

Trim & Tilt

Power Tilt

Type

4-Stroke SOHC, 2 Cylinder/4 Valves

Displacement

350 cc (21.4 cubic inches)

Bore & Stroke

59 mm x 64 mm (2.3 x 2.5 inches)

Full Throttle RPM Range

5,000-6,000 RPM

Cooling System

Water Cooled

Fuel Delivery

1 Carburetor

Ignition System

PGM-IG

Starting System

Electric

Exhaust

Through Hub

Lubrication

Wet Sump

Trim Range

4-Stage 8°-12°-16°-20°

Tilt Range

72°

Gear Ratio

2.08:1

Gear Shift

F-N-R

Alternator with Voltage Regulator

12-Amp (151 Watt)

Propeller

4-Blade Aluminum

Diameter x Pitch

9.25 x 10 Inches

Oil Pressure Alert

Standard

Temperature Alert

Standard

Rev-Limiter

Standard

Overall Width

350 mm / 13.8 in.

Transom Height

L Type 508 mm / 20 in.

What’s In The Box

- Fuel Tank
- Aluminum Propeller
- Owner’s Manual & Tool Kit
- True 5-Year Warranty
