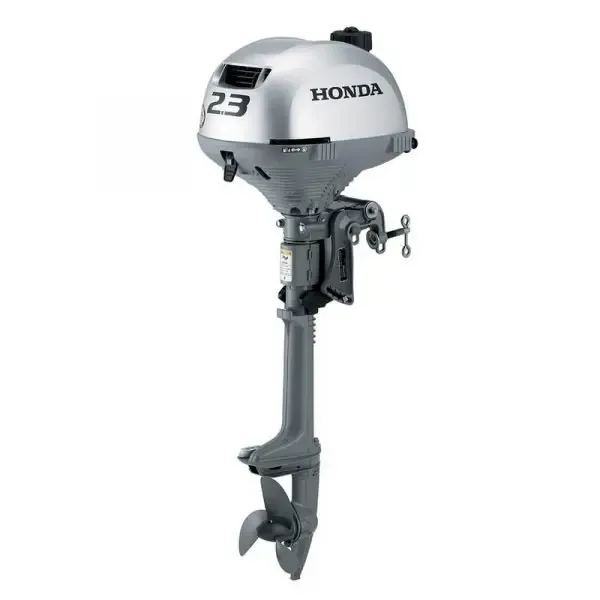

2024 HONDA 2.3 HP BF2.3DHSCH Outboard

Additional information

Horsepower 2.3 HP

Shaft Length 15″ (Short)

Starter Type Manual

Tilt & Trim Manual

Brand Honda Marine

Features

- Reliable, efficient 4-stroke design
- More power – without sacrificing portability
- Lightweight and compact
- Precise Throttle Control
- Forced air cooled engine – no water pump worries
- Ultra low 3 star CARB emissions – Environmentally concious technology
- True 5 Warranty – unmatched peace of mind
- Easy starting, maintenance free transistor ignition
- Easy to carry and install
- 360° swivel steering – added manueverability
- Centrifugal clutch – better performance
- Convenient fold down tiller
- 4-Front Corrosion Protection System – Fights the elements
- Internal fuel tank – easier portability
- Easy maintenance
- Steering friction adjustment
- Adjustable trim
- Shallow Water Drive
- Propeller included
- Carburetor drain screw for easy storage prep
- Dual lockable transom clamps
- Sheer and cotter pin keeper

Specifications

Model

BF2.3DHSCH

Model Year

2024

SKU

BF2.3DHSCH

Weight

29.5 lb

Manufacturer

Honda

Country Of Manufacture

China

Horsepower

2.3hp

Shaft Length

15″ (Short)

Steering

Tiller

Starting System

Manual (Recoil)

Trim & Tilt

Manual

Type

4-Stroke OHV, 1 Cylinder/2 Valves

Displacement

57.2 cc (3.49 cubic inches)

Bore & Stroke

45 mm x 36 mm (1.8 x 1.4 inches)

Full Throttle RPM Range

5,000-6,000 RPM

Rated Power

2.3 HP

Cooling System

Forced Air

Ignition System

Transistorized

Carb Rating

3-STAR, ultra low emission

Fuel

Unleaded 86 Octane

Fuel Tank Capacity

.29 U.S. gal (1.1L)

Exhaust

Under Water, Above Propeller

Lubrication

Oil Slinger System

Trim Range

4-Stage 5°-10°-15°-20°

Tilt Range

75°

Gear Ratio

2.42:1

Steering Angle

360° pivot

Propeller

3-Blade Plastic

Diameter x Pitch

7.25 x 4.75 Inches

Overall Width

285 mm/11.2 in.

Transom Height

S Type 418 mm/15 in.

What’s In The Box

- Internal Fuel Tank
- 3 Blade Polypropylene Propeller
- Owner’s Manual & Tool Kit
- True 5-Year Warranty
