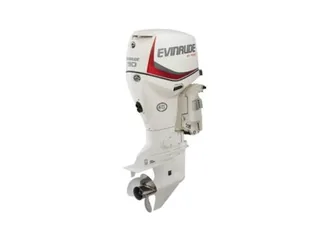

2020 EVINRUDE 90 HP E90DSL OUTBOARD MOTOR

2020 Evinrude 90 HP E90DSL Outboard Motor
Engine
Engine Type: Inline 3-Cylinder E-TEC D.I.
Bore x Stroke: 3.62 x 2.60 in. (92 x 66 mm)
Displacement: 79 cu.in. (1.29 L)
Starting: Electric
Dimensions
Shaft Length: 20 in. (508 mm)
Weight: 320 lb. (145 kg)
General
Trim Method: Trac-1 Power Trim and Tilt
Propshaft Horsepower: 90 hp
Full Throttle Operating Range: 5000-5500 RPM
Gear Ratio / Shift: 2.00:1
Fuel Induction: E-TEC Direct Injection with stratified low RPM combustion mode
Alternator: 81 Amps Total / 25 Net Dedicated
Steering: Remote (Tiller accessory)
Warranty: 3-Year, Non-Declining

Specifications

Engine Type: Inline 3-Cylinder E-TEC D.I.
Bore x Stroke – in (mm): 3.62 x 2.60 (92 x 66)
Displacement – cu in (cc): 79 (1.29)
Full Throttle RPM Range: 5000-5500 RPM
Starting: Electric
Controls: Mechanical
Fuel Induction: E-TEC Direct Injection with stratified low RPM combustion mode
Alternator Output*: 81 Amps Total / 25 Net Dedicated
Steering: Remote (Tiller accessory)
Trim Method: Trac-1 Power Trim and Tilt
Trim Range: -4° to 17°
Tilt Range: 75°
Lubrication: Multi-Point Targeted Oiling
Oil Tank Capacity – qt (L): 3 (2.8)
Recommended Oil: XPS Marine XD100 / XD50
Recommended Fuel: 87 Octane
Warranty: 3-Year, Non-Declining
100% Global Emissions Compliant: EPA 2013 / CARB 3 STAR / European Union

Model Specific Specifications

Color: White
Shaft Length – in. (mm): 20 (508)
Gear Ratio: 2.00:1
Model No.: E90DSL
Weight – lb (kg): 320 (145)
