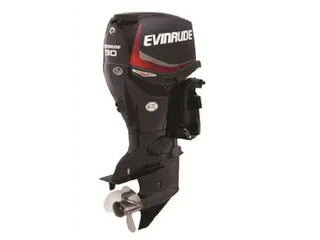

2019 EVINRUDE 90 HP E90GNL OUTBOARD MOTOR

2019 Evinrude 90 HP E90GNL Outboard Motor
Engine
Engine Type: Inline 3-Cylinder E-TEC D.I.
Bore x Stroke: 3.62 x 2.60 in. (92 x 66 mm)
Displacement: 79 cu.in. (1295cc) 1.3L
Starting: Electric
Dimensions
Shaft Length: 20 in. (508 mm)
Weight: 320 lb. (145 kg)
General
Trim Method: Trac-1 Power Trim and Tilt
Propshaft Horsepower: 90 hp
Full Throttle Operating Range: 5000-5500 rpm
Gear Ratio / Shift: 2.36:1
Fuel Induction: E-TEC Direct Injection with stratified low RPM combustion mode
Alternator: 81 Amps Total / 25 Net Dedicated
Steering: Remote
Warranty: 3-Year, Non-Declining

Features

Pontoon Specific Performance: All of the benefits of an Evinrude E-TEC tuned specifically for pontoons. Our Pontoon Series engines deliver greater thrust, reduce vibration for a smoother, quieter ride, and make your pontoon easier to own.
Easy Maneuvering: A key to good pontoon performance is getting a pontoon loaded with passengers to maneuver around easily. The optimized gear ratios and unique software mapping of the Pontoon Series provides quicker acceleration, improved throttle response and more stopping power.
More Miles Per Hour: Get even more extra miles per hour with the Straight Leading Edge gearcase. The Evinrude SLE gearcase features high-efficiency water pickups and a weed-slicing shape up front, for a cooler-running engine and ultimate durability and reliability in the long run.

Specifications

Engine Model: E90GNL Graphite
Engine Type: Inline 3-Cylinder E-TEC D.I.
Bore x Stroke – in (mm): 3.62 x 2.60 (92 x 66)
Displacement – cu in (cc): 79 (1295) 1.3L
Gear Ratio: 2.36:1
Full Throttle RPM Range: 5000-5500 RPM
Weight – lbs (kg): 320 (145)
Starting: Electric
Controls: Mechanical
Fuel Induction: E-TEC Direct Injection with stratified low RPM combustion mode
Alternator Output*: 81 Amps Total / 25 Net Dedicated
Steering: Remote
Trim Method: Trac-1 Power Trim and Tilt
Trim Range: -4° to 17°
Tilt Range: 75°
Shaft Length – in (mm): 20 (508)
Lubrication: Multi-Point Targeted Oiling
Oil Tank Capacity – gal (L): 2.4 (2.3)
Recommended Oil: Evinrude / Johnson XD-100 Oil
Recommended Fuel: 87 Octane
Warranty: 3-Year, Non-Declining
Emissions Compliance: EPA 2013 / CARB 3 STAR / European Union
