2019 SUZUKI 20 HP DF20AES2 OUTBOARD MOTOR

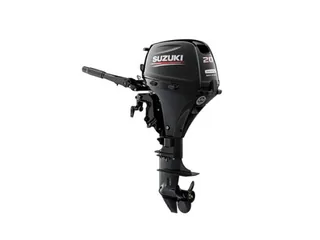

2019 Suzuki 20 HP DF20AES2 Outboard Motor
The convenience of a push button start outboard motor combined with the powerful, yet quiet Suzuki marine engineering makes the Suzuki 20 HP outboard motor model # DF20AES2 the affordable and perfect choice for your larger size skiffs, jon boats and inflatable boats. Equipped with a 15 inch shaft and tiller steering, the Suzuki 20 HP is the quietest engine in the 20 HP class and comes standard with a 3.1 gallon fuel tank and fuel line, aluminum prop, tool kit and Suzuki’s factory warranty. We are proud to be an authorized Suzuki Dealer.

Electronic Fuel Injection (EFI)
Sleek, Compact, Lightweight Design
Saltwater Rated
Fresh Water Flushing Port
Multi-Layer Corrosion Protection
Electric Start + 12V Alternator System
Thru-Cowling Manual Back-Up Starting
Forward-Mounted Gear Shift Lever
Twist-Grip Throttle with Tension Control
Quiet Through-the-Prop Exhaust
Start-in-Gear Lockout Protection
Proven Automotive Style Oil Pump
Shallow Water Drive
5 Trim Positions w/Tilt Lock Pin
Low Oil Pressure Warning System
Over Heat Warning System
Over-Rev Limiter Protection
Steering Friction Tension Control
Integrated Carrying Handle
Emergency Lanyard Stop Switch
3.1 US Gallon Fuel Tank / Fuel Line
3-Blade Aluminum Propeller
3-Star Ultra-Low Emission Rating
Suzuki’s Lean Burn Control System
Suzuki 3-Year Warranty

MODEL
DF20AES2

SKU
DF20AES2-20

WEIGHT
106.0 lb

MANUFACTURER
Suzuki

COUNTRY OF MANUFACTURE
Thailand

HORSEPOWER
20hp

SHAFT LENGTH
15″ (Short)

STEERING
Tiller

STARTING
Electric

TRIM & TILT
Manual

FUEL DELIVERY
EFI

FUEL TANK
External

CYLINDER(S)
2

DISPLACEMENT
327 cc (20.0 cubic inches)

BORE AND STROKE
60.4 x 57 mm (2.38 x 2.24 inches)

FULL THROTTLE RPM RANGE
5300-6300 RPM

IGNITION SYSTEM
Digital CDI

INDUCTION SCAVENGING
SOHC

VALVES PER CYLINDER
2

FUEL TYPE
Unleaded Gasoline (87 octane)

FUEL TANK / FUEL LINE
INCLUDED: 3.1 Gallon Fuel Tank and Fuel Line

OIL TYPE
33.8 fl oz. (1000 mL)

OIL CAPACITY
33.8 fl oz. (1000 mL)

LUBRICATION
Wet Sump; Trochoid Type Cam-Driven Oil Pump

ALTERNATOR
12V 145W 10A

COOLING SYSTEM
Water-Cooled

SALTWATER RATED
Yes

GEAR RATIO
2.08:1

GEAR SHIFT
Forward-Neutral-Reverse (front-mounted lever)

PROPELLER
3-Blade Aluminum 9.25″ Dia x 10″ Pitch
