2019 SUZUKI 20 HP DF20ATL2 OUTBOARD MOTOR

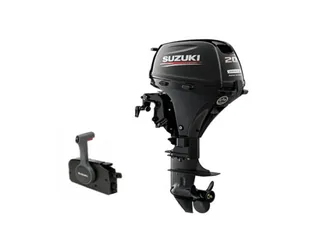

2019 Suzuki 20 HP DF20ATL2 Outboard Motor
The 20 HP Suzuki outboard model # 20 HP DF20ATL2 comes with every feature you could want. Equipped with a 20 inch shaft this outboard has electric push button start and remote throttle and shift control. Perfect for large or heavy jon boats and skiffs requiring a long shaft as well as auxiliary power for sailboats and trolling/kicker applications. As one of the quietest 4-strokes ever built, the Suzuki 20hp outboard engine is a great example of Suzuki’s excellence in engineering.

Electronic Fuel Injection (EFI)
Sleek, Compact, Lightweight Design
Saltwater Rated
Fresh Water Flushing Port
Multi-Layer Corrosion Protection
Electric Start + 12V Alternator System
Thru-Cowling Manual Back-Up Starting
Side Mount Control Box (includes harness)
Remote Throttle/Shift (cables not included)
Steering Link Arm (cable not included)
Start-in-Gear Lockout Protection
Proven Automotive Style Oil Pump
Quiet Through-the-Prop Exhaust
Shallow Water Drive
5 Trim Positions w/Tilt Lock Pin
Transom Bracket Mounting Hardware
Low Oil Pressure Warning System
Over Heat Warning System
Over-Rev Limiter Protection
Emergency Lanyard Stop Switch
3.1 US Gallon Fuel Tank / Fuel Line
3-Blade Aluminum Propeller
3-Star Ultra-Low Emission Rating
Suzuki’s Lean Burn Control System
Suzuki 3-Year Warranty

MODEL
DF20ATL2

SKU
DF20ATL2-20

WEIGHT
120.0 lb

MANUFACTURER
Suzuki

COUNTRY OF MANUFACTURE
Thailand

HORSEPOWER
20hp

SHAFT LENGTH
20″ (Long)

STEERING
Remote

STARTING
Electric

TRIM & TILT
Power Tilt

FUEL DELIVERY
EFI

FUEL TANK
External

CYLINDER(S)
2

DISPLACEMENT
327 cc (20.0 cubic inches)

BORE AND STROKE
60.4 x 57 mm (2.38 x 2.24 inches)

FULL THROTTLE RPM RANGE
5300-6300 RPM

IGNITION SYSTEM
Digital CDI

INDUCTION SCAVENGING
SOHC

VALVES PER CYLINDER
2

FUEL TYPE
Unleaded Gasoline (87 octane)

FUEL TANK / FUEL LINE
INCLUDED: 3.1 Gallon Fuel Tank and Fuel Line

OIL TYPE
SAE 10W-30 or SAE 10W-40

OIL CAPACITY
33.8 fl oz. (1000 mL)

LUBRICATION
Wet Sump; Trochoid Type Cam-Driven Oil Pump

ALTERNATOR
12V 145W 10A

COOLING SYSTEM
Water-Cooled

SALTWATER RATED
Yes

GEAR RATIO
2.08:1

GEAR SHIFT
Forward-Neutral-Reverse (side mount control box)

PROPELLER
3-Blade Aluminum 10.25″ Dia x 9.0″ Pitch
