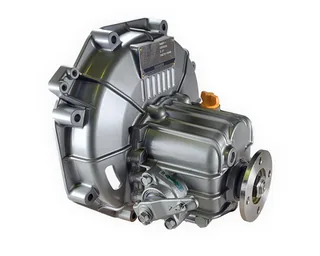

Yanmar KM4A Gear R 1.47 – Product Overview

The Yanmar KM4A Gear R 1.47 for 4JH5 – KM4ASS-5 is a marine transmission component designed for compatible Yanmar diesel propulsion systems. It is used in inboard gearbox configurations where the engine output must be transferred efficiently to the propeller shaft.

This gearbox is configured with a 1.47 reduction ratio, making it suitable for drivetrain setups where the vessel design and propeller selection require higher propeller shaft speeds compared with higher reduction ratios.

The unit is specifically intended for Yanmar 4JH5-series diesel engines specified for KM4A gear applications. It is commonly used as a replacement gearbox, a repower drivetrain component, or part of a new marine propulsion installation requiring OEM Yanmar gearbox compatibility.

For buyers searching for a Yanmar KM4A Gear R 1.47 for 4JH5, this KM4ASS-5 unit provides a defined gearbox configuration for compatible marine diesel installations.

Designed for Yanmar 4JH5-Series Diesel Engines

The Yanmar KM4A Gear R 1.47 – KM4ASS-5 is built for integration with compatible Yanmar 4JH5-series marine diesel engines that require KM4A gear applications.

Correct engine and gearbox matching is essential in any inboard marine propulsion system. The gearbox must match the engine output, mounting arrangement, shaft direction, reduction ratio, control setup, and propeller requirements.

This transmission is intended for applications where the 4JH5 engine is already specified for a KM4A gear configuration. It should not be selected by ratio alone without confirming engine compatibility and installation requirements.

For boat owners replacing an existing unit, the current gearbox model, ratio, rotation, and mounting details should be checked carefully before purchase.

For marine technicians and repower buyers, this product is especially relevant when maintaining a Yanmar OEM drivetrain layout.

1.47 Reduction Ratio for Defined Shaft Speed Requirements

The 1.47 reduction ratio is one of the most important specifications of the Yanmar KM4A Gear R 1.47.

A marine gearbox reduction ratio determines how engine speed is converted into propeller shaft speed. A lower reduction ratio, such as 1.47:1, generally supports higher propeller shaft speed compared with a higher reduction ratio gearbox.

This can be suitable for vessels where the hull design, propeller diameter, propeller pitch, engine speed range, and drivetrain layout require this specific ratio.

Choosing the wrong gearbox ratio can affect acceleration, cruising rpm, propeller loading, fuel efficiency, vibration, and overall vessel performance.

Buyers should confirm that the 1.47 ratio matches the existing drivetrain or the repower specification before installation.

Mechanical Interface Between Engine and Propeller Shaft

The Yanmar KM4A Gear R 1.47 for 4JH5 – KM4ASS-5 functions as the mechanical interface between the engine and propeller shaft.

In an inboard diesel propulsion system, the gearbox transfers engine output to the shaft while supporting the correct reduction ratio and drivetrain direction. It plays a central role in how power reaches the propeller.

Because the gearbox sits between the engine and shafting system, correct alignment is critical. Poor alignment can contribute to vibration, accelerated wear, seal issues, coupling stress, and reduced drivetrain life.

This gearbox should be installed according to manufacturer specifications using compatible mounts, couplings, controls, shafting, and alignment procedures.

For customers needing a Yanmar 4JH5 marine gearbox replacement, this unit is intended for defined KM4A applications where correct fitment has been confirmed.

Suitable for Sailboats and Auxiliary Powerboats

The Yanmar KM4A Gear R 1.47 – KM4ASS-5 is commonly used in sailboats and auxiliary powerboats with inboard diesel propulsion systems.

Sailboats often rely on compact diesel engines and matched gearboxes for docking, marina maneuvering, motoring in calm conditions, battery charging, and auxiliary propulsion. A correctly matched gearbox helps support smooth power transfer and reliable operation.

Auxiliary powerboats and small inboard vessels also require accurate drivetrain configuration to match engine output to propeller performance.

This gearbox is especially useful for vessels already equipped with compatible Yanmar 4JH5 engines and KM4A drivetrain layouts.

For repower projects, confirming gearbox ratio and compatibility early helps avoid installation delays and costly drivetrain changes.

OEM Yanmar Marine Gearbox Replacement Applications

The Yanmar KM4A Gear R 1.47 for 4JH5 is suitable for replacement applications where the existing gearbox matches the required KM4A configuration.

A gearbox replacement may be needed due to wear, damage, repower upgrades, drivetrain service, or restoration of an existing Yanmar-powered vessel.

Using a gearbox matched to the original propulsion design helps preserve installation geometry and reduces the need for unnecessary modification. This may include compatibility with engine mounts, controls, shaft coupling, propeller shaft angle, and engine bed layout.

Buyers should verify the original gearbox plate, ratio, shaft configuration, engine model, and installation drawings before ordering.

For marine workshops, boatyards, and Yanmar diesel owners, this KM4ASS-5 gearbox is a practical component for maintaining a compatible OEM-style drivetrain.

Important Fitment and Alignment Considerations

The Yanmar KM4A Gear R 1.47 – KM4ASS-5 should be selected only after confirming fitment with the specific vessel and engine configuration.

Important details include engine model, gearbox type, reduction ratio, shaft coupling, engine bed alignment, control cable setup, shaft angle, propeller specification, and available installation space.

Precise alignment is especially important in inboard propulsion systems. The gearbox, coupling, and propeller shaft must be correctly aligned to reduce vibration and drivetrain stress.

If the vessel is being repowered, the gearbox should also be matched to the intended propeller and expected operating rpm.

Professional installation is recommended because drivetrain components must be set up carefully for safe and reliable operation.

Why the Yanmar KM4A Gear R 1.47 Is a Smart Choice

The Yanmar KM4A Gear R 1.47 for 4JH5 – KM4ASS-5 is a smart choice for buyers who need a defined Yanmar marine transmission for compatible 4JH5-series diesel engines.

It provides the required 1.47 reduction ratio, supports inboard drivetrain power transfer, and fits applications where a KM4A gearbox configuration is specified.

For boat owners, the main advantage is compatibility. Choosing the correct gearbox helps preserve drivetrain geometry, shaft alignment, propeller performance, and installation reliability.

For repower buyers and marine technicians, this product supports a more straightforward replacement path when the vessel already uses the correct Yanmar 4JH5 and KM4A configuration.

For customers searching for a Yanmar KM4A Gear R 1.47 for 4JH5 for sale, this gearbox offers a focused marine drivetrain solution.

Who Should Choose This Marine Gearbox

The Yanmar KM4A Gear R 1.47 for 4JH5 – KM4ASS-5 is best for buyers who need a Yanmar KM4A marine gearbox for compatible Yanmar 4JH5-series diesel engines.

It is suitable for sailboat owners, auxiliary powerboat owners, marine diesel technicians, boatyards, repower specialists, and buyers replacing an existing compatible Yanmar marine transmission.

This gearbox is especially useful when the existing drivetrain requires a 1.47 reduction ratio and a KM4A gear application.

Buyers who need a different reduction ratio, a different Yanmar engine series, a complete engine package, or a non-Yanmar transmission should compare other marine gearbox options before purchase.

Technical Specifications

Specification Details

Product Name Yanmar KM4A Gear R 1.47 for 4JH5 – KM4ASS-5

Brand Yanmar

Model / Reference KM4ASS-5

Gear Type KM4A marine gearbox

Product Type Marine transmission / inboard gearbox

Compatible Engine Series Yanmar 4JH5-series diesel engines specified for KM4A gear applications

Reduction Ratio 1.47

Application Inboard marine diesel propulsion

Function Transfers engine output to the propeller shaft

Installation Type Standard marine drivetrain layout

Typical Vessel Types Sailboats, auxiliary powerboats, inboard diesel vessels

Use Case Replacement gearbox, repower project, new compatible Yanmar drivetrain installation

Control Integration For approved marine drivetrain control systems

Shafting Requirement Requires correct alignment with compatible propeller shaft system

Best Fit Vessels requiring a Yanmar KM4A gearbox with 1.47 reduction ratio for compatible 4JH5 engines

Buyer Profile Boat owners, boatyards, marine diesel mechanics, repower specialists

Main Benefits OEM Yanmar compatibility, 1.47 reduction ratio, efficient drivetrain power transfer, defined 4JH5 application

Key Product Details and Specifications

The Yanmar KM4A Gear R 1.47 for 4JH5 – KM4ASS-5 is a marine gearbox designed for compatible Yanmar inboard diesel propulsion systems.

It is intended for Yanmar 4JH5-series diesel engines specified for KM4A gear applications.

The gearbox uses a 1.47 reduction ratio, supporting higher propeller shaft speed compared with higher-ratio marine transmissions.

It functions as the drivetrain interface between the engine and the propeller shaft, helping transfer power efficiently through the marine propulsion system.

This unit is suitable for replacement transmissions, compatible repower projects, and new inboard diesel installations requiring a matching Yanmar gearbox.

Correct installation requires proper engine alignment, shaft coupling compatibility, control integration, mount setup, and drivetrain inspection.

Buyers should confirm engine model, gearbox ratio, shaft configuration, and installation requirements before ordering.

Buy With Confidence

When buying the Yanmar KM4A Gear R 1.47 for 4JH5 – KM4ASS-5, customers should confirm engine compatibility, gearbox model, reduction ratio, shaft coupling, rotation requirements, control setup, mounting layout, propeller specification, and alignment requirements.

This model is a strong choice for buyers who need a Yanmar KM4A 1.47 marine gearbox for compatible 4JH5-series diesel engines and inboard marine drivetrain applications.

Customers can compare this product with related Yanmar marine gearboxes, KM4A transmission options, 4JH5 engine components, shaft couplings, engine mounts, control cables, and repower installation parts.

Professional installation is recommended. Correct alignment, coupling fitment, mounting, shaft inspection, control adjustment, and fluid setup help support safe operation, smooth power transfer, and long gearbox service life.

Frequently Asked Questions

What is the Yanmar KM4A Gear R 1.47 for 4JH5 used for?

The Yanmar KM4A Gear R 1.47 for 4JH5 – KM4ASS-5 is used as a marine gearbox for compatible Yanmar 4JH5-series diesel engines in inboard propulsion systems.

What reduction ratio does this Yanmar gearbox have?

This gearbox is configured with a 1.47 reduction ratio.

Is this gearbox compatible with all Yanmar engines?

No. This unit is specifically intended for Yanmar 4JH5-series diesel engines specified for KM4A gear applications. Buyers should confirm compatibility before purchase.

What type of boats use this gearbox?

This gearbox is typically used in sailboats, auxiliary powerboats, and other inboard diesel vessels with compatible Yanmar drivetrain layouts.

Can this gearbox be used for repower projects?

Yes, it can be used in repower projects when the engine, gearbox ratio, shafting system, controls, and drivetrain layout are compatible.

Why is gearbox alignment important?

Correct gearbox alignment helps reduce vibration, coupling stress, shaft wear, seal issues, and drivetrain problems. Professional installation is recommended.

Should I confirm the ratio before ordering?

Yes. Buyers should confirm that the 1.47 reduction ratio matches the vessel’s engine, propeller, and shafting requirements before ordering.
