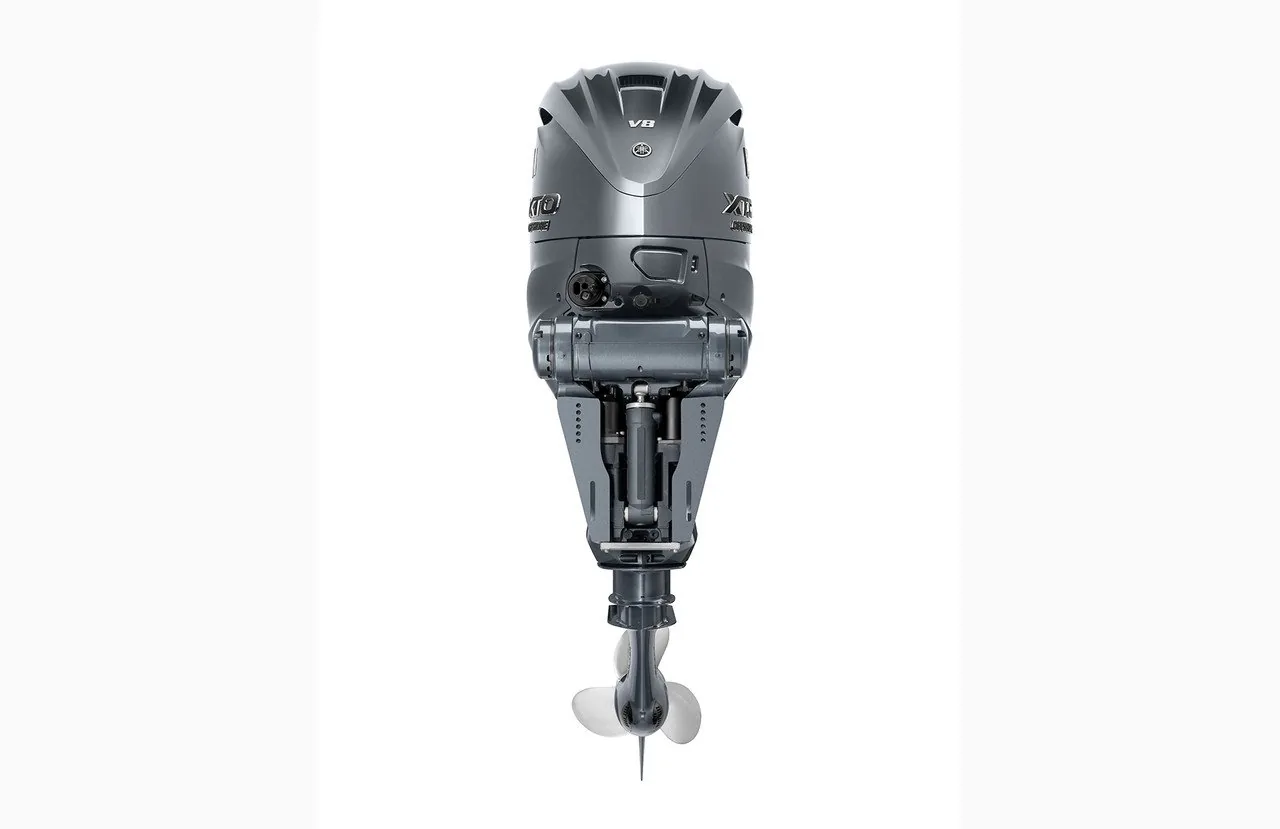

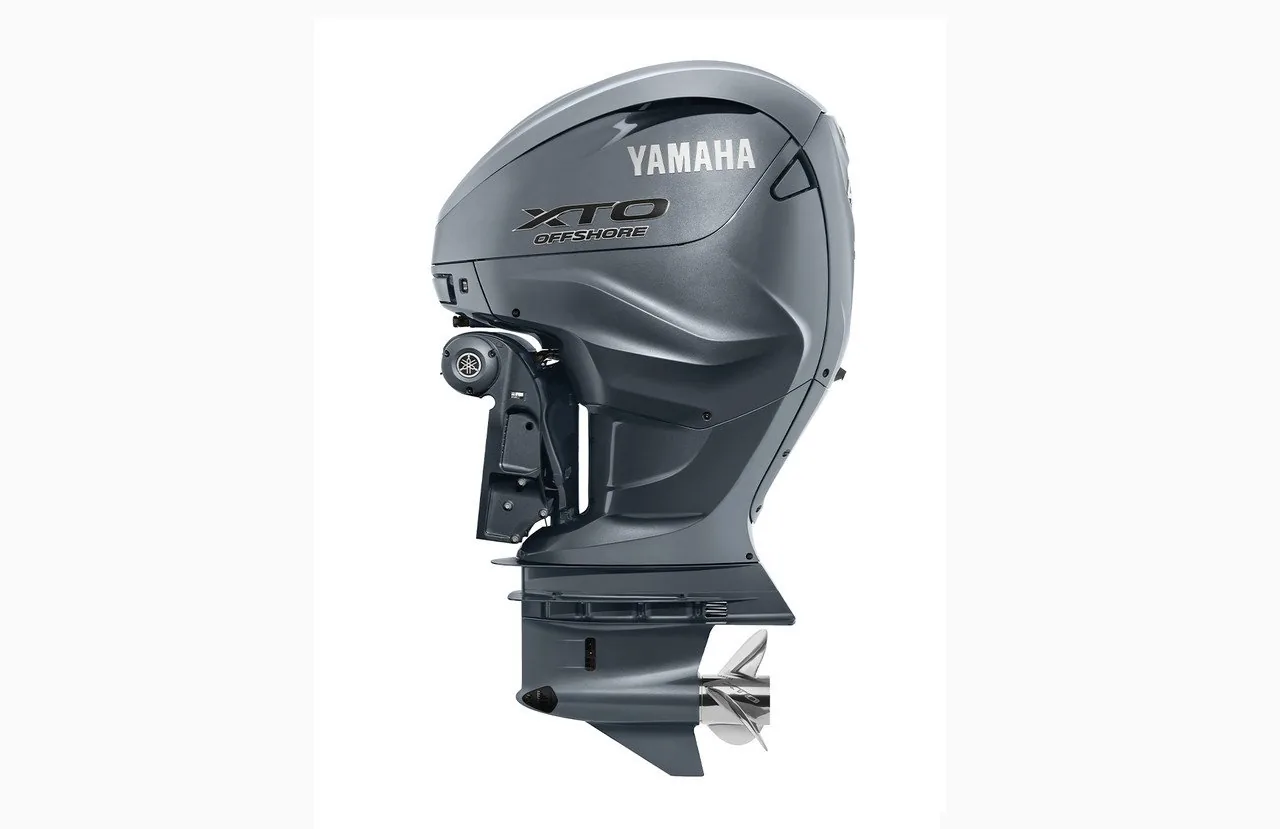

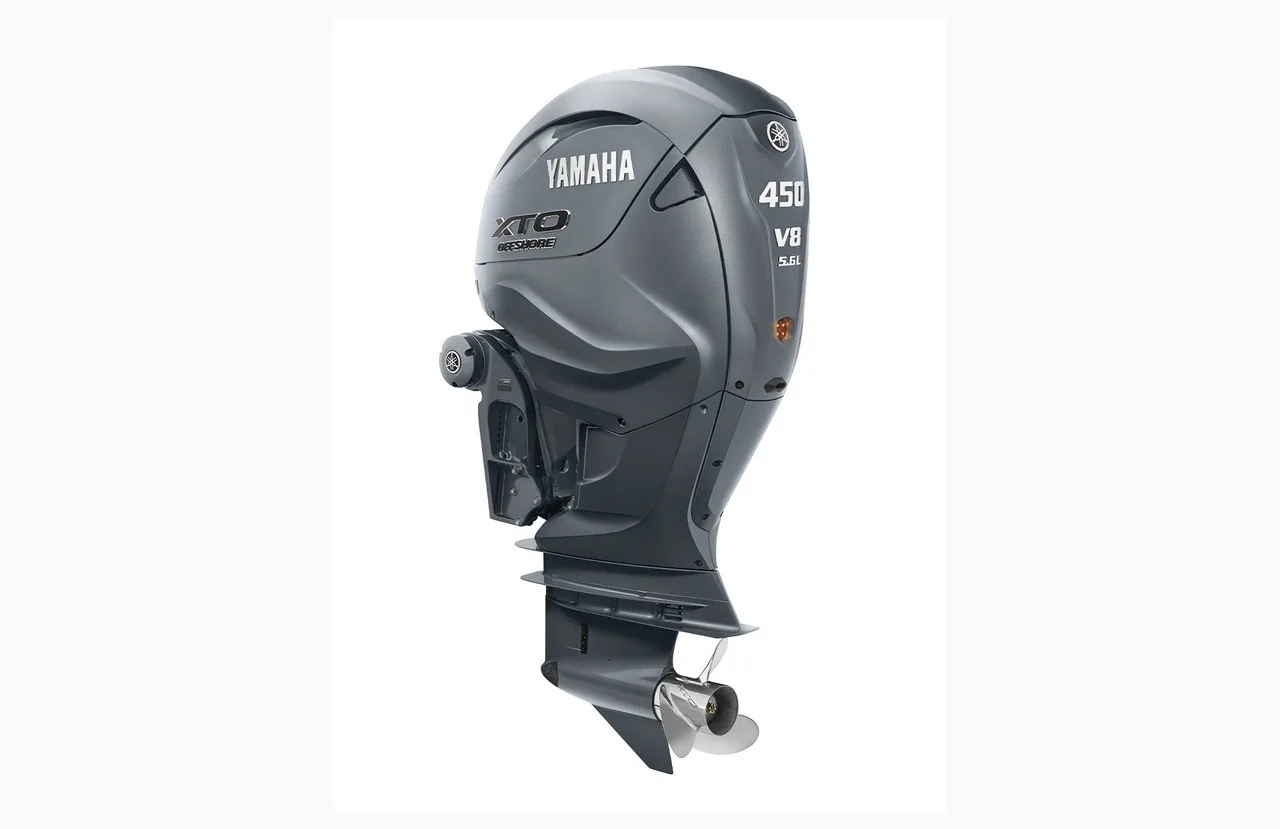

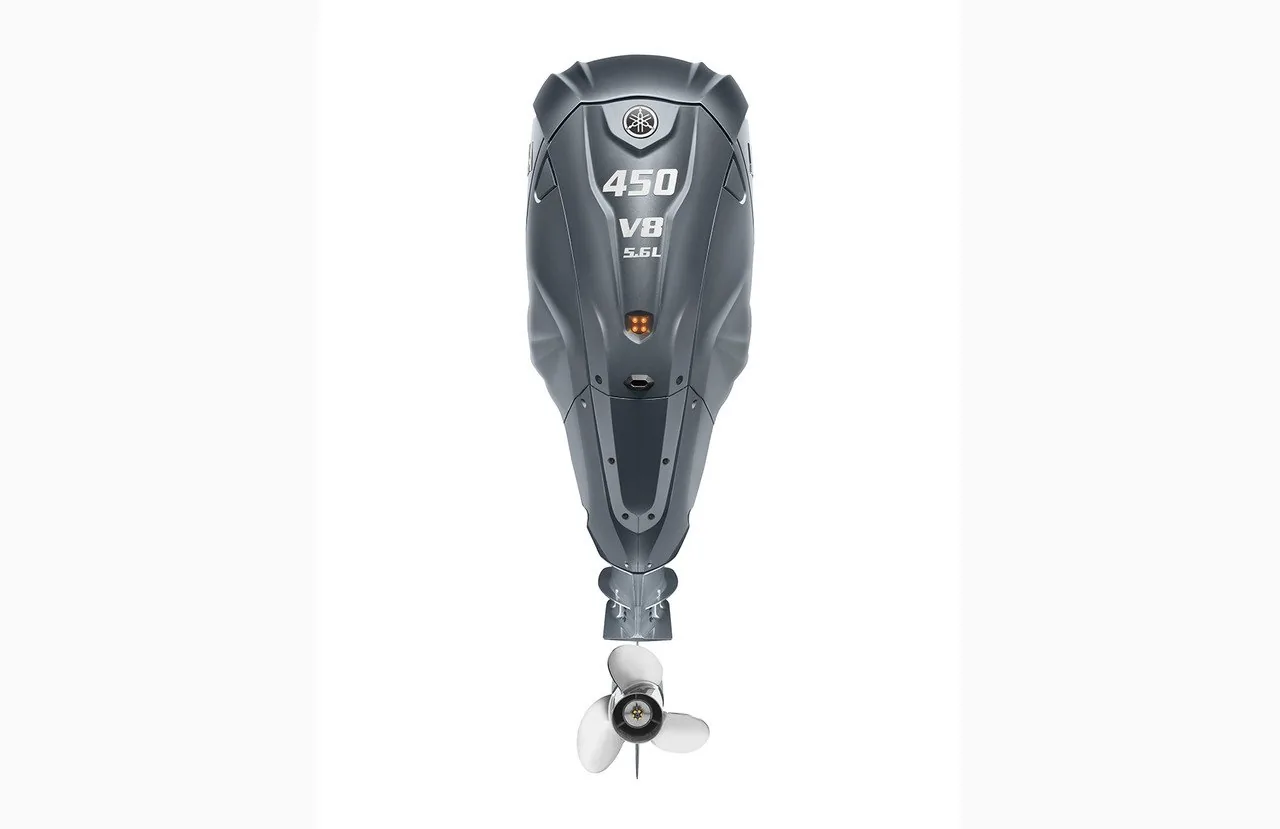

Incorporate tournament-grade throttle dynamics into high-sided coastal vessels with the Yamaha XF450XSA Gray XTO Offshore, a heavy-duty four-stroke marine engine purpose-built for elevated transoms and harsh coastal applications. Operating via an 5559 cc V8 engine block with a 32-valve dual overhead camshaft (DOHC) blueprint, this 450-horsepower propulsion unit forces optimized combustion metrics to push high-performance offshore fishing boats and center consoles onto step instantly. Engineered with a 25-inch extra-long shaft layout and finished in signature Yamaha marine gray, it ensures constant water pump pressure and unwavering propeller tracking even when battling severe trailing rollers or choppy sound currents.

Eradicate heavy bow rise and cavitation frustrations by adjusting your lower-unit running draft dynamically using the factory-integrated TotalTilt power trim and tilt system. Boaters execute immediate hull modifications directly from the remote helm station to counter shifting wind variables, maximizing fuel conservation while shielding passenger areas from painful deck slamming. Weighing 437 kg (963 lbs), this robust marine motor features thick-walled structural aluminum castings wrapped in multi-layer electro-deposited anti-corrosion primers to handle severe big-water mechanical stresses safely.

Key Features of Yamaha XF450XSA

- 5.6-Liter Brutal V8 Powerhead: Generates a fierce 450 prop shaft horsepower from a naturally aspirated 5559 cc big-block platform to handle massive express cruisers easily.
- High-Pressure Direct Fuel Injection: Atomizes fuel at up to 2900 PSI directly inside the cylinders, boosting thermal efficiency through the 5000-6000 RPM band.
- 25-Inch Extra-Long Shaft Profile: Matches tall performance transoms perfectly, preventing prop ventilation during sharp high-speed maneuvers in heavy coastal chop.
- 102-Amp Gross Charging Stator: Delivers a massive 96 net amps of electrical current at an idle speed to fuel advanced radar setups and multi-screen glass cockpits easily.
- TotalTilt Power Management: Implements an automated double-tap tilting trim cylinder to raise the entire engine assembly quickly and clear trailering transitions.
- Robust 1.79:1 Lower Unit: Features heavy-duty internal gearsets to rotate large-diameter offshore propellers, translating V8 torque into maximum displacement thrust.
- Thru-Hub Exhaust Reliever: Forces exhaust bubbles away from the prop blades when running in reverse, ensuring immediate biting grip and crisp dockside maneuverability.
- Dockside Gearcase Oil Exchange: Implements a unique internal plumbing system that allows certified mechanics to change lower gear oils while the vessel floats at the dock.
- Heavy-Wall Marine Castings: Employs dense, high-strength aluminum alloys matched with multiple sacrificial zinc anodes to completely stop galvanic saltwater decay.
- Extended 5-Year Factory Warranty: Supported by a class-leading 5-Year Limited Pleasure Craft Warranty alongside global factory-certified dealer service protection networks.

Why Choose Yamaha XF450XSA

Selecting the XF450XSA platform over standard utility outboards unlocks custom-tuned shallow-to-deep racing heritage configured precisely for high-sided vessel transoms. This specialized outboard engine utilizes an integrated Spark Ignition Direct Injection System paired with an incredible 12.2:1 high-compression ratio, maximizing the fuel energy output from standard 89 octane mid-grade fuel. It features an integrated Digital Electronic Steering module that links directly with Yamaha Helm Master EX joystick systems, allowing seamless dockside tracking and automated fishing grids. Because this extra-long model connects directly via digital fly-by-wire networking instead of physical mechanical throttle linkages, auditing your digital infrastructure routing geometry is an essential installation step.

- Confirm your hull centerline requires a 25-inch extra-long shaft layout by measuring vertically from the top mounting cut down to the lunas tip.
- Rig your remote station console with matching high-strength digital electronic control units to unlock automated autopilot tracking routines.
- Optimize big-water operations by running clean 89 octane unleaded fuel to ensure complete compliance with local emission standards.

Ideal Application and Vessel Fitment

The 25-inch Yamaha XF450XSA engine is custom-tailored for 28-to-38-foot high-performance offshore fishing boats and center consoles demanding maximum hole shots. By matching a streamlined V8 footprint with XTO Offshore tuning, this engine functions as an exceptionally agile mechanical workhorse engineered to navigate coastal waves without carrying the heavy weight penalties of larger multi-engine setups. The extra shaft length makes it a necessity for big-lake anglers requiring maximized transom heights.

Warranty, Support and Maintenance

Authorized recreational operations receive a factory-backed 5-Year Limited Pleasure Craft Warranty. Preventive maintenance schedules dictate swapping lower unit gearcase lubricants and checking the massive 7.8-liter oil capacity at manual-specified hourly intervals. Always record your transom-bracket factory serial number to guarantee exact parts matching when sourcing authentic components. Mulmotor provides comprehensive pre-sale technical consultations and dedicated order tracking assistance.
