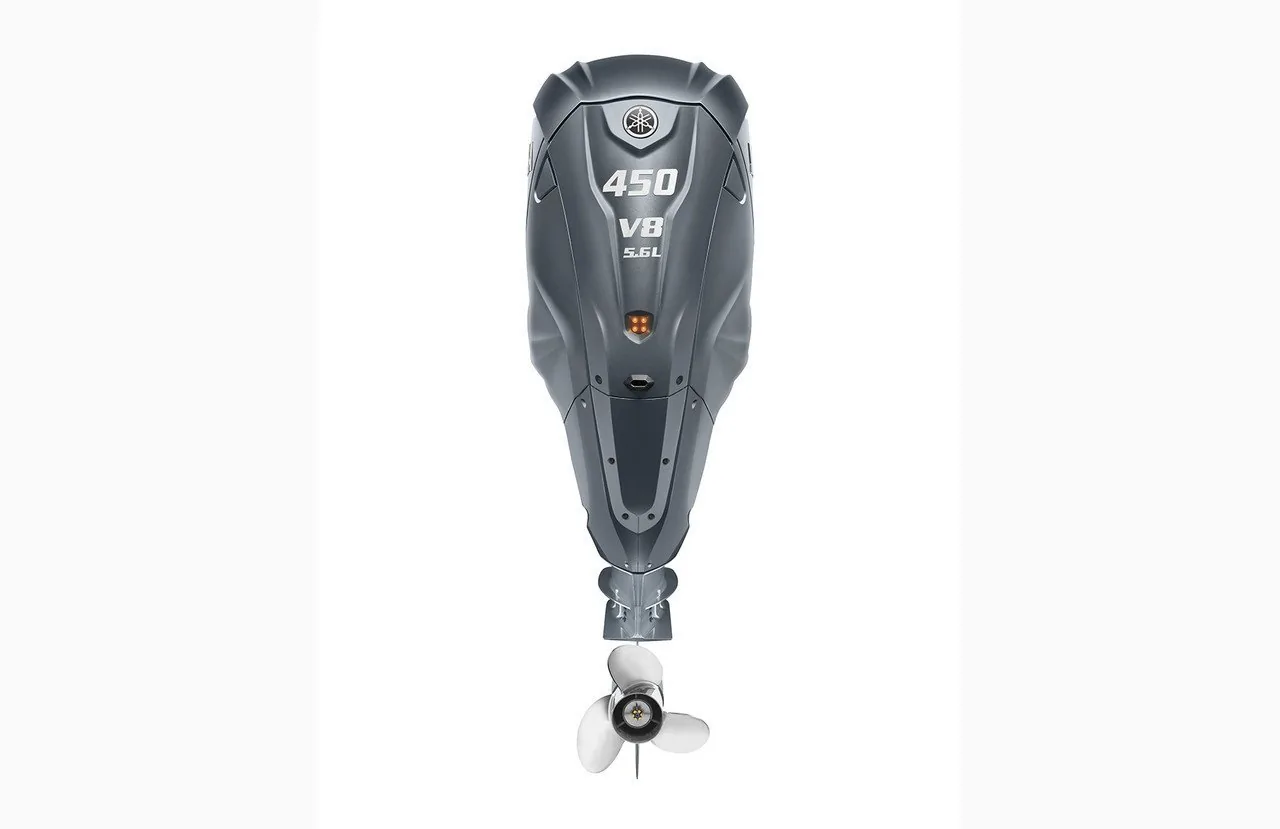

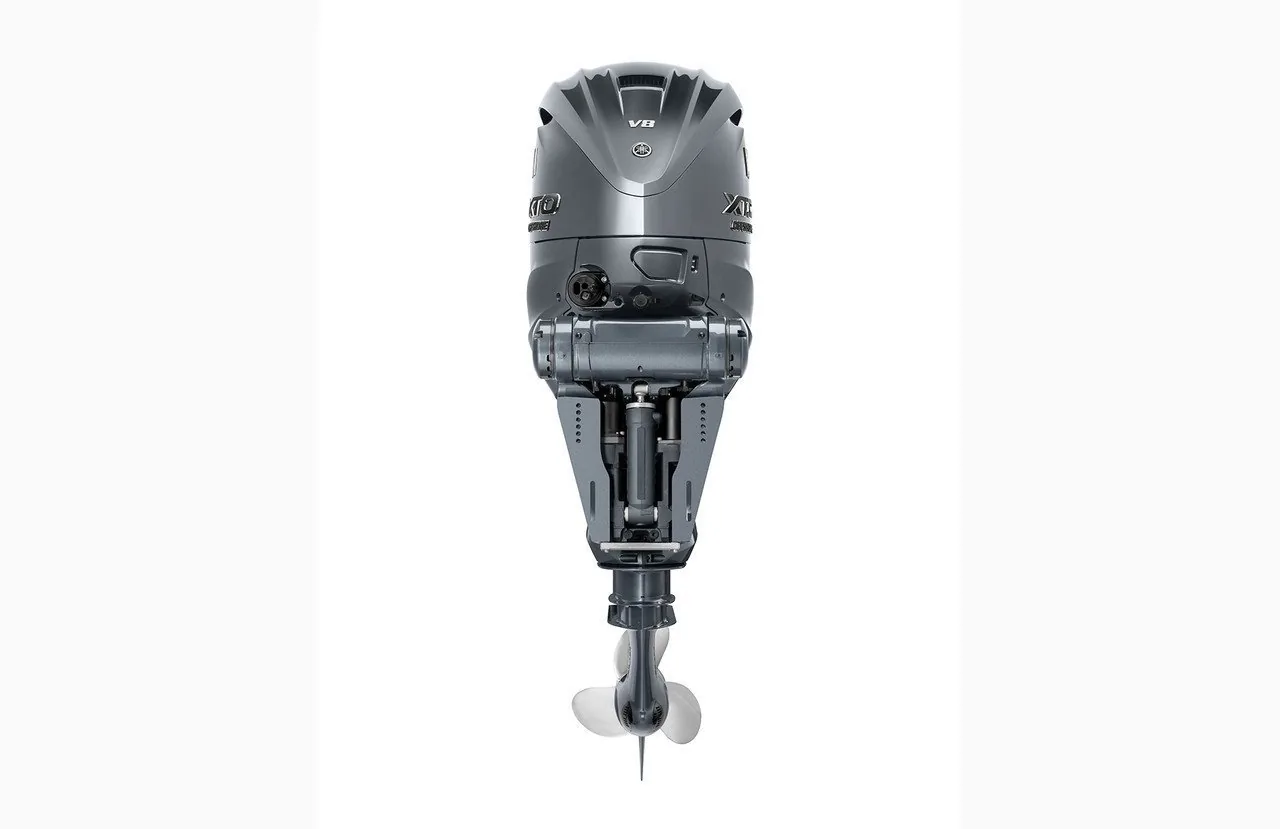

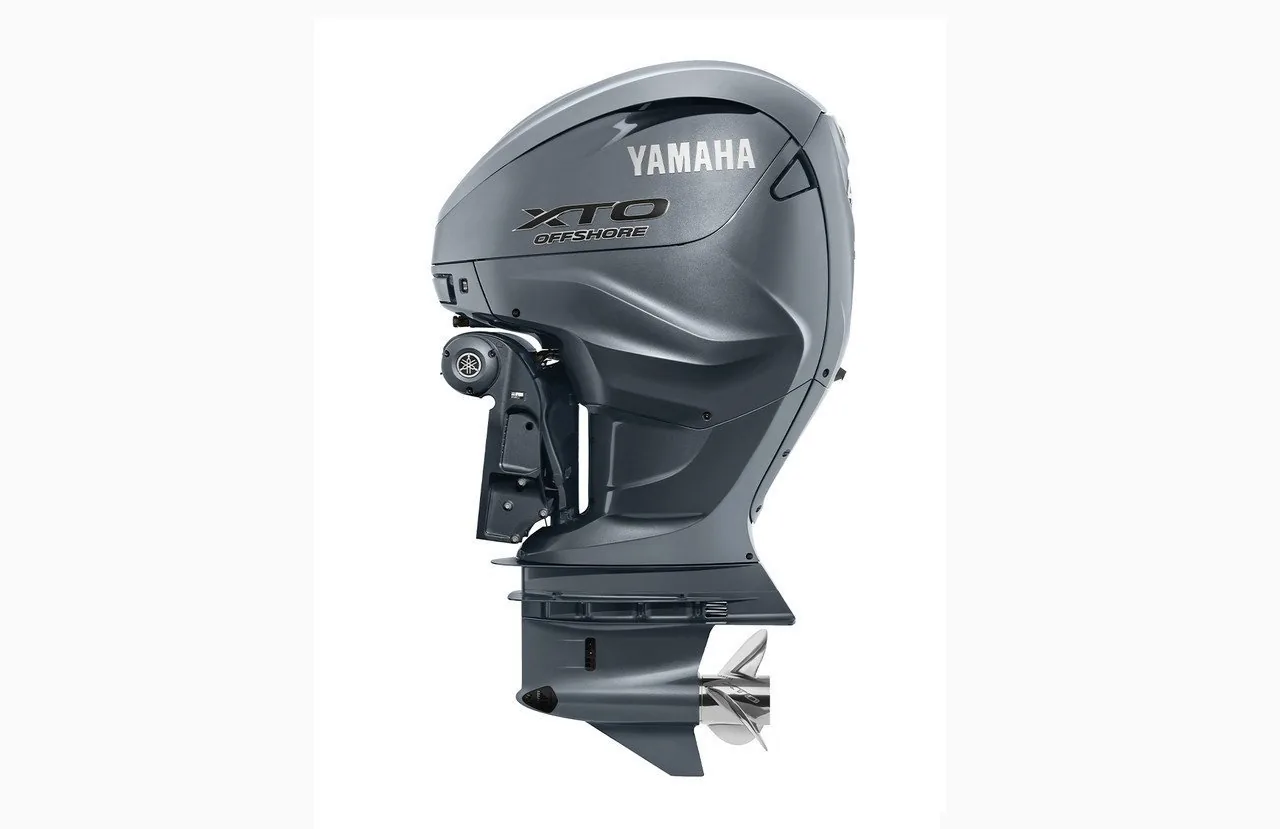

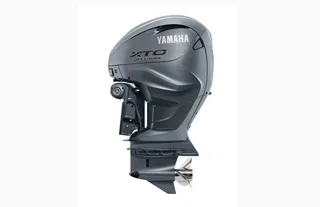

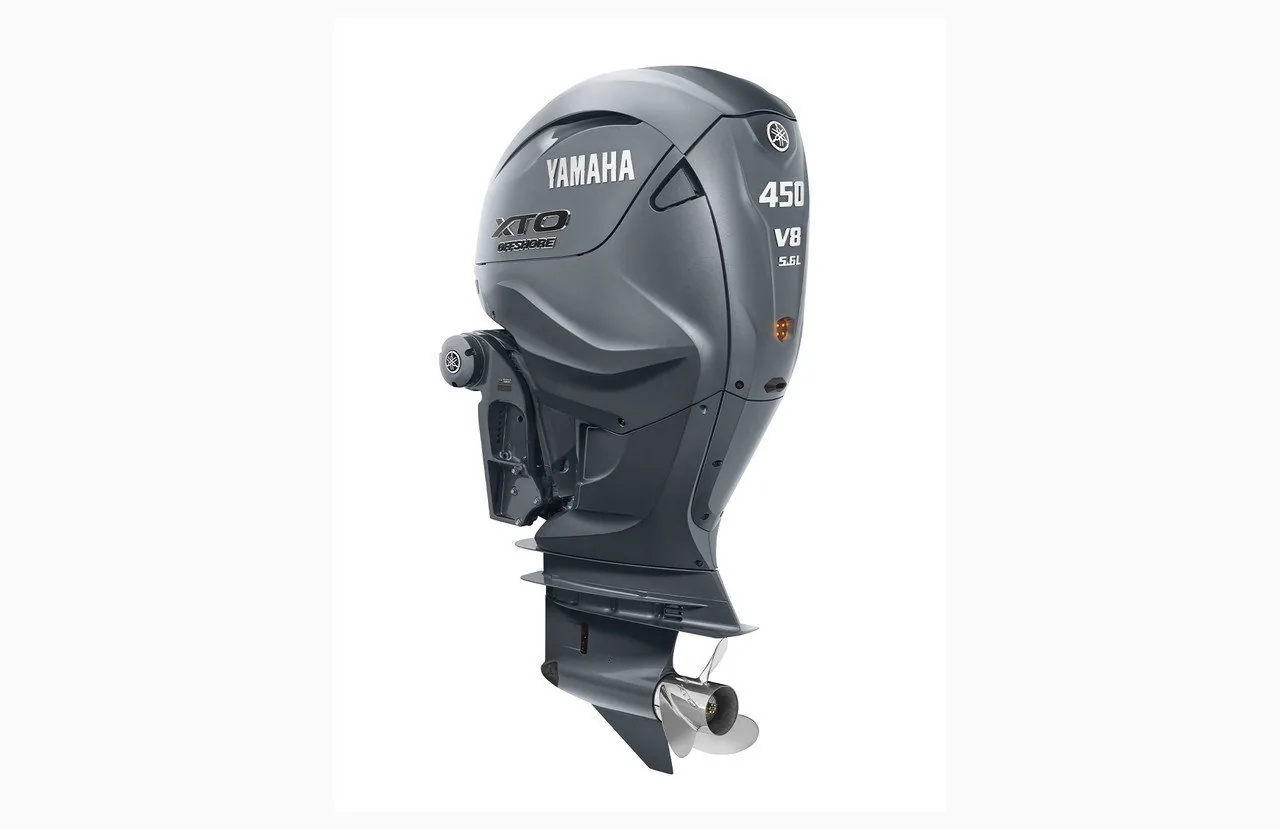

Yamaha XF450USA 450HP – XTO Offshore 30″ Shaft Standard Rotationin Gray

Yamaha XF450USA 450HP XTO Offshore Gray

The Yamaha XF450USA 450HP represents a high-output V8 XTO Offshore performance, featuring a high-displacement 5.6L DOHC 32-valve engine architecture in Classic Gray. This powerhead utilizes a high compression ratio of 12.2:1 and direct-injection technology to deliver the industry’s most potent four-stroke thrust for the largest multi-engine offshore hulls. Its 30-inch extra-long shaft and standard rotation gearcase are explicitly engineered for reliable marine propulsion systems requiring maximum prop immersion during heavy oceanic transits.

The recommended full-throttle operating range for the XF450USA 450HP is a wide 5000-6000 full-throttle RPM range using Integrated Digital Electric Steering (DES) and Helm Master EX control systems. The high-performance 1.79:1 gear ratio effectively translates the 5.6L V8 energy into immediate hydrodynamic thrust for rapid hull planing under offshore offshore loads. Boaters use this Japanese-engineered XTO platform for its displacement power and the smoothness of digital integration in the most marine sea conditions.

Technical Specifications of Yamaha XF450USA

- V8 5.6L DOHC architecture delivers 450 horsepower with superior volumetric efficiency.
- Gray 444 kg design features a 30-inch extra-long shaft for specialized offshore hulls.
- Standard Rotation (right-hand) gearcase design is optimized for single or primary engine installations.
- Integrated Digital Electric Steering (DES) provides vessel handling and precision control at all speeds.
- High-pressure Direct Injection (up to 2900 PSI) helps support combustion efficiency and power.
- High-output alternator (90 Amps Net) helps support navigation radar and digital sonar remain fully powered daily.
- Investment is protected by a limited 3-year factory warranty and 2-year extended protection plan.

450HP XTO V8 Displacement

The XF450USA utilizes a 5.6-liter V8 engine block to provide the highest torque output in the Yamaha lineup. This 32-valve DOHC mechanical design helps support strong hole-shot acceleration and mid-range cruising for the heaviest fiberglass center consoles and workboats. Operators may notice available power when navigating heavy offshore inlets or maintaining speed against strong currents with full-displacement loads.

Integrated DES Steering Precision

This 450HP outboard features Integrated Digital Electric Steering (DES) to provide a smooth and responsive boating experience without external hydraulic lines. This digital system provides a clean transom rigging while offering adjustable steering friction for the operator. Professional offshore anglers can enjoy vessel command during long tournament days without operator fatigue or mechanical lag during high-speed maneuvers.

Extra-Long 30-Inch Shaft Utility

The XF450USA 450HP integrates a specialized 30-inch extra-long shaft explicitly calibrated for specialized high-transom vessel dimensions found on large center consoles. This specific lower unit immersion prevents propeller aeration in following seas while maintaining secure mechanical leverage during sharp turns. US offshore This can provide improved steering authority and stable tracking during strong maneuvers in open sea conditions during long oceanic transits.

Direct Injection Induction System

The 450HP outboard features an high-pressure Direct Injection system that delivers fuel directly into the combustion chamber at up to 2900 PSI. This technology optimizes fuel atomization and thermal efficiency, resulting in crisp throttle response and top-end speed for large offshore vessels. This can help provide increased power from every drop of fuel while exploring remote sections far from local marina fuel docks.

Helm Master EX Digital Control

The 450HP outboard is fully compatible with Yamaha Helm Master EX for advanced vessel positioning and joystick control at the helm. This system allows for precise movement in tight quarters and automated fishing patterns for serious pelagic anglers. Captains can easily manage multiple outboards and integrate with digital displays for a complete and modern luxury offshore helm solution with digital accuracy.

Routine Care and Maintenance

This Digital V8 engine is built with high-quality sacrificial anodes and a quad-thermostat cooling system to prevent destructive galvanic corrosion daily. Regular maintenance of the power trim and tilt system and cooling passages helps support smooth engine operation in harsh conditions.Maintenance note: Follow the manufacturer’s service procedures and lubrication specifications for the engine and gearcase.
