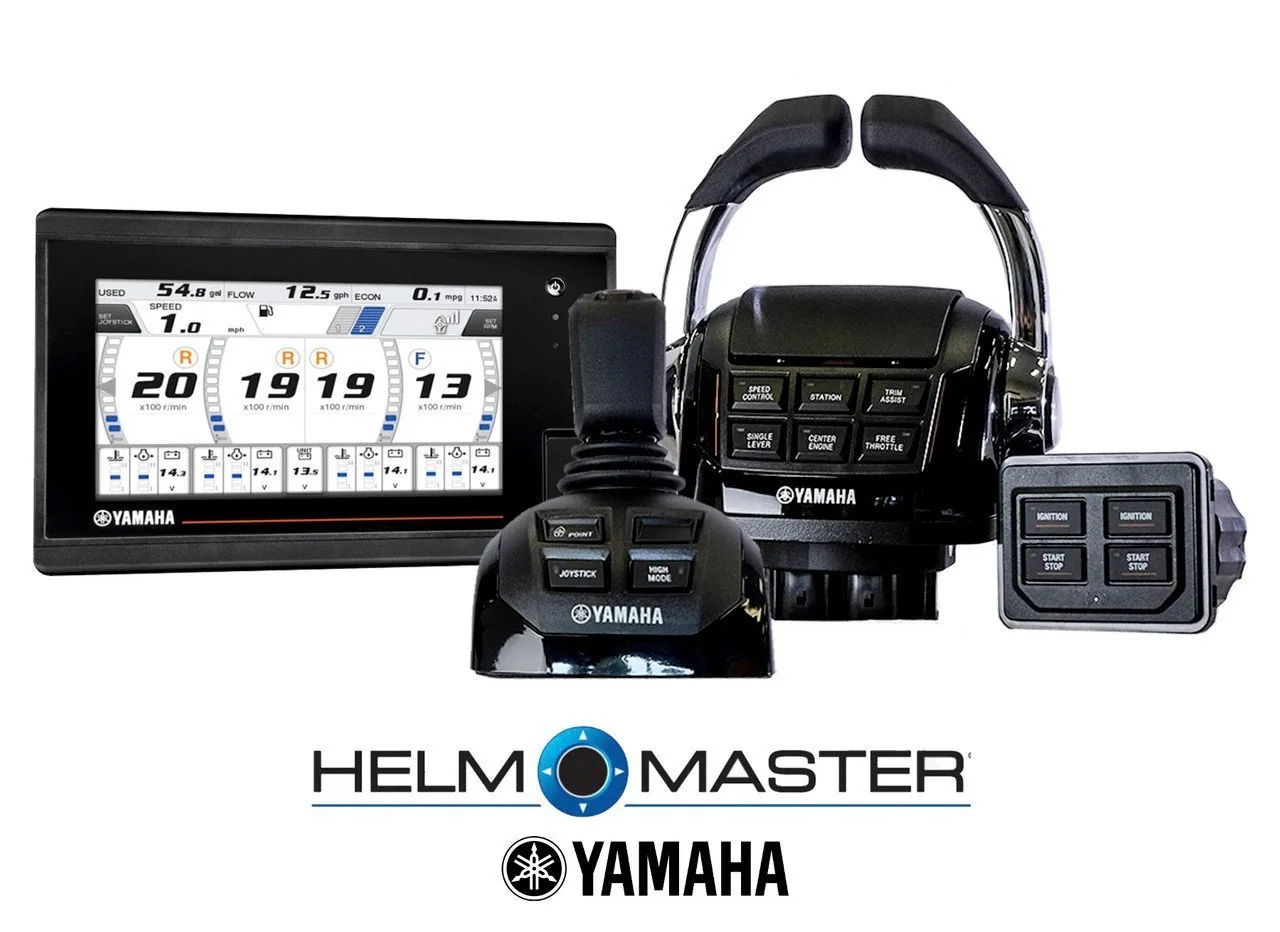

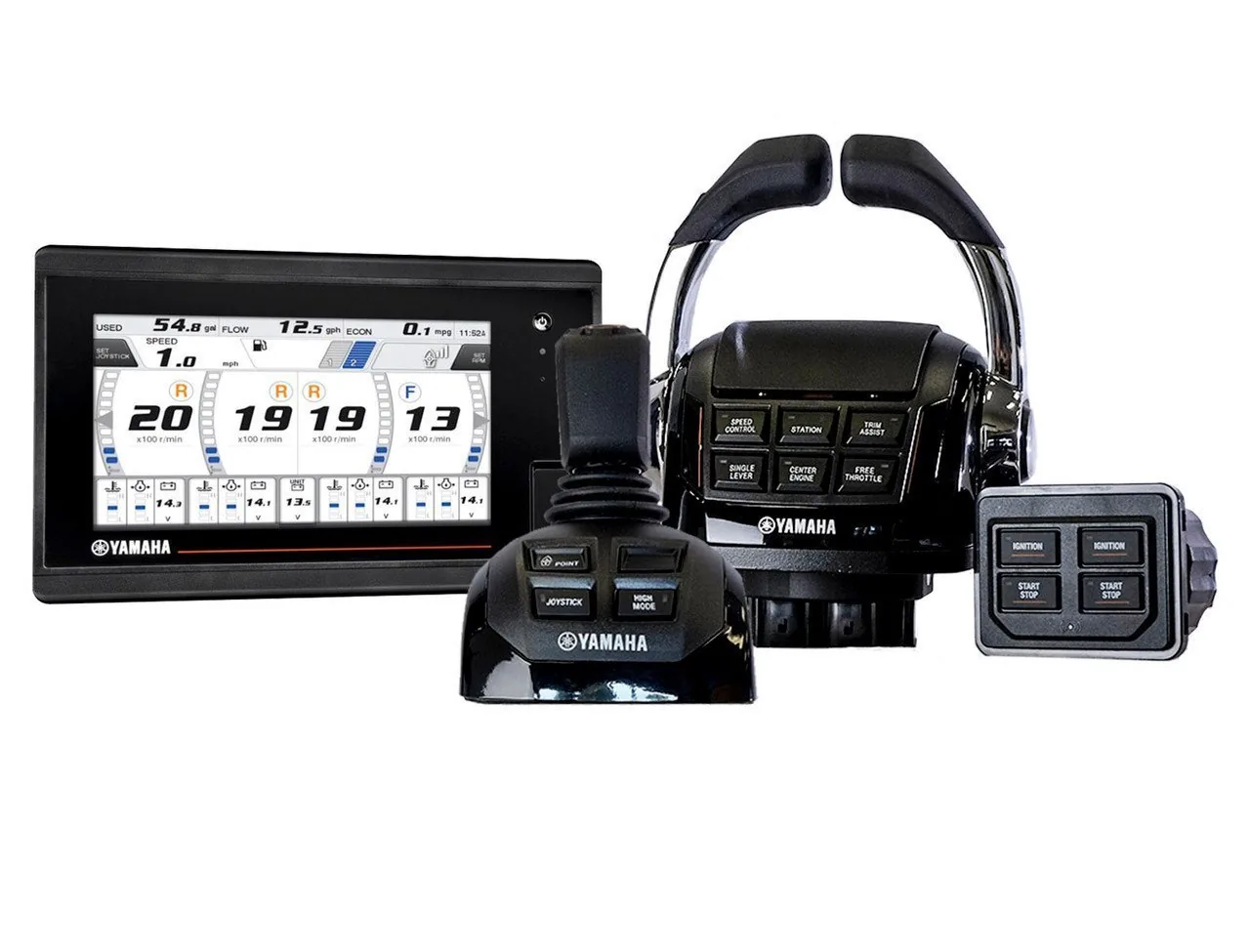

Yamaha Helm Master EX Main Station Kit

The Yamaha Helm Master EX Main Station Kit represents the next generation of digital boat control, featuring a fully integrated “flight-by-wire” architecture for single to quint outboard configurations. This sophisticated system replaces traditional mechanical rigging with advanced digital electronics, providing captains with command over throttle, shifting, and steering from a unified helm interface. It is designed to work seamlessly with reliable marine propulsion systems such as the 2.8L to 5.6L DEC-compatible outboards, ensuring responsiveness in all maritime conditions.

Operational peak performance of the Helm Master EX system is managed through a high-definition CL5 or CL7 touchscreen display and an Electronic Key Switch (EKS) for secure, keyless operation. The integrated Autopilot and Precision Point technology allow for sophisticated vessel positioning, while the optional joystick provides 360-degree maneuverability in tight quarters. US This can provide a higher level of vessel command, reducing operator fatigue and simplifying complex docking maneuvers through the power of digital integration and automated steering support.

Technical Specifications of Helm Master Kit

- Digital Flight-by-Wire system integrates steering, shift, throttle, and autopilot into a unified station.
- CL5/CL7 High-Definition Displays provide real-time engine diagnostics and system management data.
- EKS Electronic Key Switch helps support high-level security with keyless entry and ignition fobs.
- Integrated Digital Electric Steering (DES) compatibility provides smooth and precise vessel handling.
- NMEA 2000 and Yamaha Proprietary Bus connectivity helps support networking with modern electronics.
- Variable Trolling RPM support allows for precise speed control during technical fishing missions.
- Protected by a warranty that matches the primary engine package for long-term ownership peace of mind.

Digital Flight-by-Wire Integration

The Helm Master EX Main Station Kit utilizes a pure digital connection between the helm and the engines, eliminating the lag and maintenance associated with mechanical cables or hydraulic lines. This architecture provides an incredibly smooth throttle response and crisp shifting, allowing for precise speed adjustments. Operators may notice a more connected feel to the vessel, making high-speed transits and technical maneuvers more predictable and safe.

Precision Point Positioning

With integrated FishPoint, StayPoint, and DriftPoint functionalities, the Helm Master EX allows boaters to maintain their vessel’s position or heading with GPS accuracy. This automated control is a game-changer for offshore anglers who need to stay over a specific reef or for captains waiting for a bridge opening in heavy currents. You gain the ability to hold the boat steady without constant manual input, allowing for a more relaxed and productive time on the water.

Keyless EKS Security System

The Electronic Key Switch (EKS) provides a modern and secure way to manage vessel access, using encrypted fobs to enable the ignition system. This keyless integration reduces the clutter of physical keys and prevents unauthorized engine starts, providing essential security for high-end multi-engine platforms. Owners benefit from a simplified starting procedure that activates all synchronized engines with a single button press on the main control panel.

Joystick 360-Degree Maneuverability

When upgraded with the optional Level 4 joystick, the Helm Master EX provides total 360-degree control of the vessel for stress-free docking. The system coordinates the shifting and steering of multiple outboards independently to move the boat sideways, diagonally, or rotate it on its own axis. You gain the confidence needed to dock a large center console in crosswinds or heavy currents with minimal effort and maximum precision.

Real-Time Engine Diagnostics

The integrated CL-series displays provide a comprehensive overview of the engine’s health, including fuel flow, temperatures, and specific fault codes. This real-time data allows for optimized fuel management and proactive maintenance, ensuring the vessel is always ready for offshore transits. Captains can easily customize the display layout to prioritize the information most relevant to their current navigation or fishing activity.

Dealer Installation Care

The Helm Master EX system requires professional installation by a certified Yamaha technician to helps support proper calibration and digital networking of all components. This process is designed to support that the integrated steering and automated control features function with 100% accuracy and reliability.Maintenance note: Follow the manufacturer’s service procedures and lubrication specifications for the engine and gearcase.
