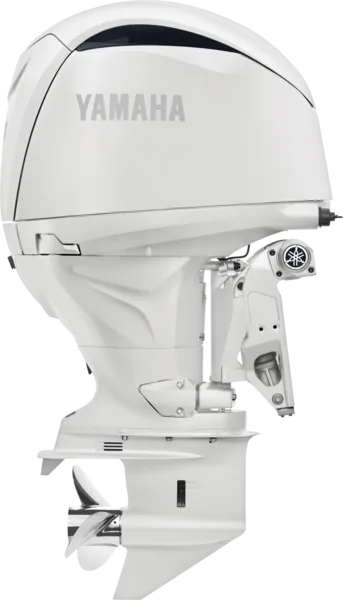

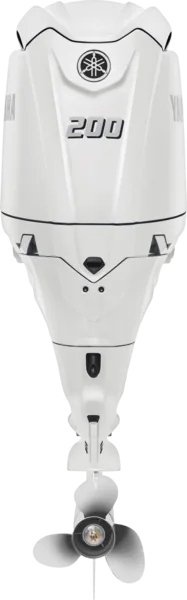

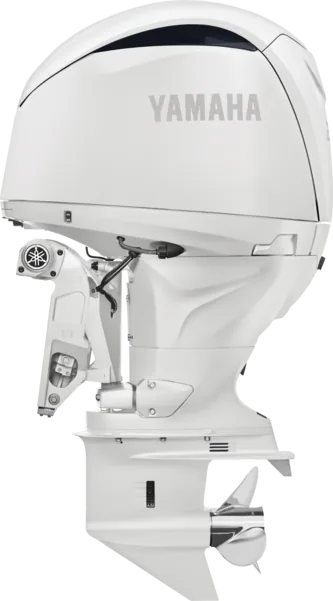

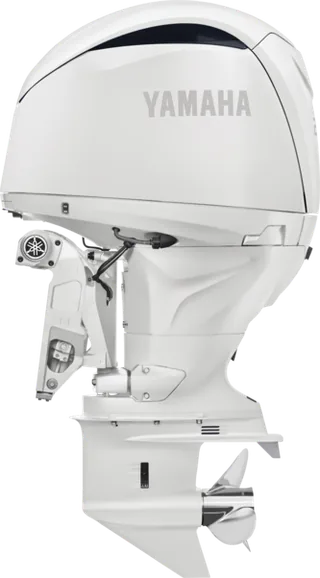

Yamaha F200XD2 200HP – 25″ Shaft Remote Mechanical

Yamaha F200XD2 200HP EFI 4-Stroke

The Yamaha F200XD2 200HP outboard motor is a sophisticated four-stroke engine built with an advanced L4 2.8L 16-valve DOHC architecture for offshore performance. This robust Pearlescent White powerhead utilizing a 2.8-liter displacement maintains a competitive dry weight of 487 lbs to provide boaters with an high-pressure power-to-weight ratio. Its extra-long 25-inch shaft configuration is specifically designed for high-transom offshore vessels that require consistent propeller immersion and stable cooling water flow during long transits across unpredictable coastal waters.

The recommended full-throttle operating range for the F200XD2 200HP is a wide 5000-6000 full-throttle RPM range managed by a sophisticated Precision Multi-Point EFI induction system. The specialized 1.86:1 gear ratio effectively translates mechanical energy from these advanced outboard engine technology platforms into low-end torque for instantaneous and smooth hull planing. US offshore boat owners trust this Japanese-engineered platform for its reliable operation, ensuring safe and efficient navigation through unpredictable coastal environments found during marine open-water missions.

Technical Specifications of Yamaha F200XD2

- Robust L4 2.8L DOHC architecture delivers 200 horsepower with high volumetric marine efficiency.
- Lightweight 221 kg design includes a 25-inch shaft for larger offshore boat transom configurations.
- Precision Multi-Point EFI helps support consistent combustion across the 5000-6000 throttle RPM band.
- Specialized 1.86 to 1 gear ratio provides mechanical leverage for heavy hull thrust.
- Standard right-hand rotation and remote mechanical steering allow for predictable vessel handling control.
- 50-amp alternator output keeps navigation displays and sonar equipment fully powered daily.
- Investment is protected by a limited 3-year factory warranty and Japanese manufacturing standards.

F200XD2 Engine Tech

The Yamaha F200XD2 utilizes a 16-valve DOHC configuration within its robust 2.8-liter inline-four engine block. This mechanical design maximizes air intake flow to helps support rapid and responsive hole-shot acceleration. Coastal boaters can easily push heavily loaded fiberglass vessels through challenging and choppy offshore sea conditions.

Yamaha 200HP Induction

This Yamaha 200HP outboard motor incorporates a Multi-Point EFI system to optimize fuel atomization for maximum efficiency. Continuous digital calibration prevents engine hesitation and helps support instant turnkey starting across varying maritime temperatures. You achieve outstanding fuel economy while exploring remote offshore sections far from local marina fuel docks.

25-Inch Power Shaft

The 4-Stroke 200HP motor integrates an extra-long 25-inch shaft explicitly calibrated for deep-V vessel transom dimensions. This specific lower unit immersion prevents propeller aeration and maintains a secure grip on the water surface. US offshore This can provide improved steering authority and stable tracking during strong maneuvers in open sea conditions.

200HP NMEA Tech

The 200HP outboard seamlessly connects with modern digital helm displays via its integrated NMEA 2000 communication protocol. A 50-amp alternator generates consistent electrical output to supply your critical onboard navigation instruments. Serious tournament fishermen can operate multiple sonar screens and pumps simultaneously without draining the battery.

Yamaha Quality Warranty

The Yamaha F200XD2 includes a comprehensive limited factory warranty to safeguard your primary maritime investment. This protection plan covers essential mechanical systems and structural components against manufacturing defects during normal usage. Owners benefit from an extensive service network and genuine Japanese parts availability for all warranty repairs.

White Offshore Match

The F200XD2 200HP in Pearlescent White provides a high-end aesthetic match for luxury center consoles. Its 487 lbs design prevents stern-heavy displacement while maximizing planing speeds on open coastal water. Luxury boat owners enjoy the combination of sleek styling and legendary four-stroke offshore performance on water.

Engine Care Protocol

This EFI 4-Stroke engine is built with high-quality sacrificial anodes to prevent destructive galvanic corrosion. Regular maintenance of the power trim and tilt system helps support smooth engine adjustments in saltwater.Maintenance note: Follow the manufacturer’s service procedures and lubrication specifications for the engine and gearcase.
