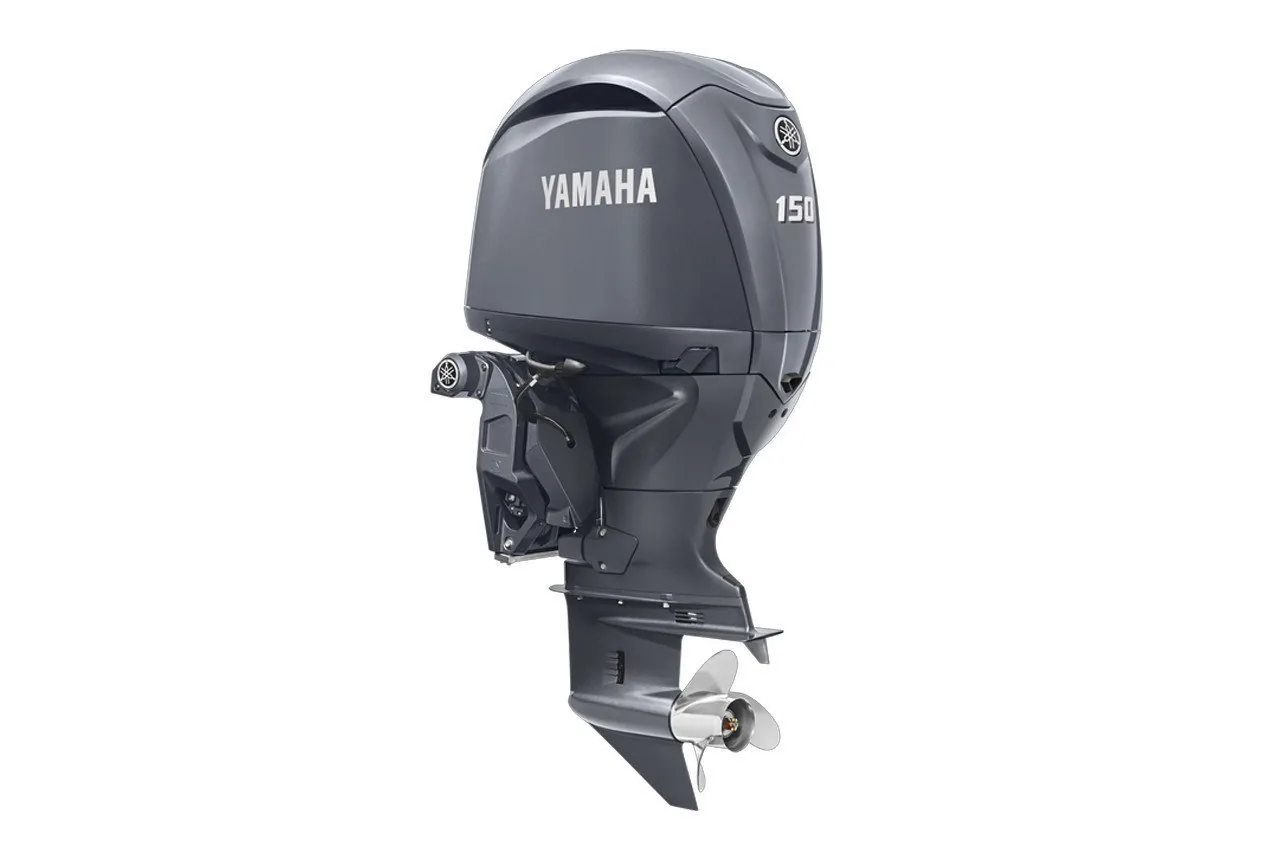

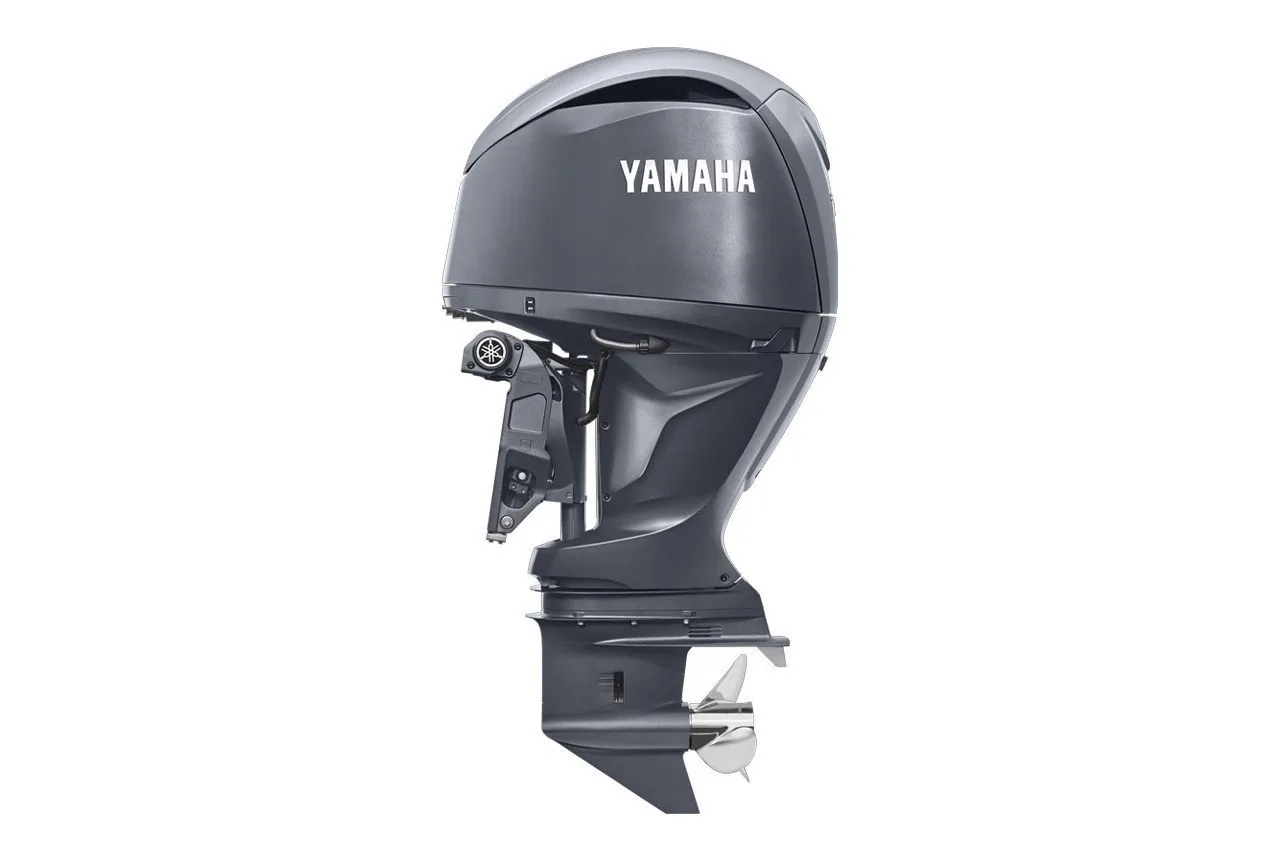

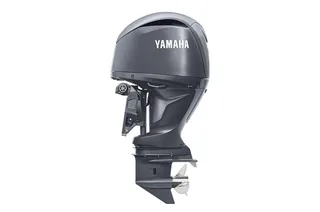

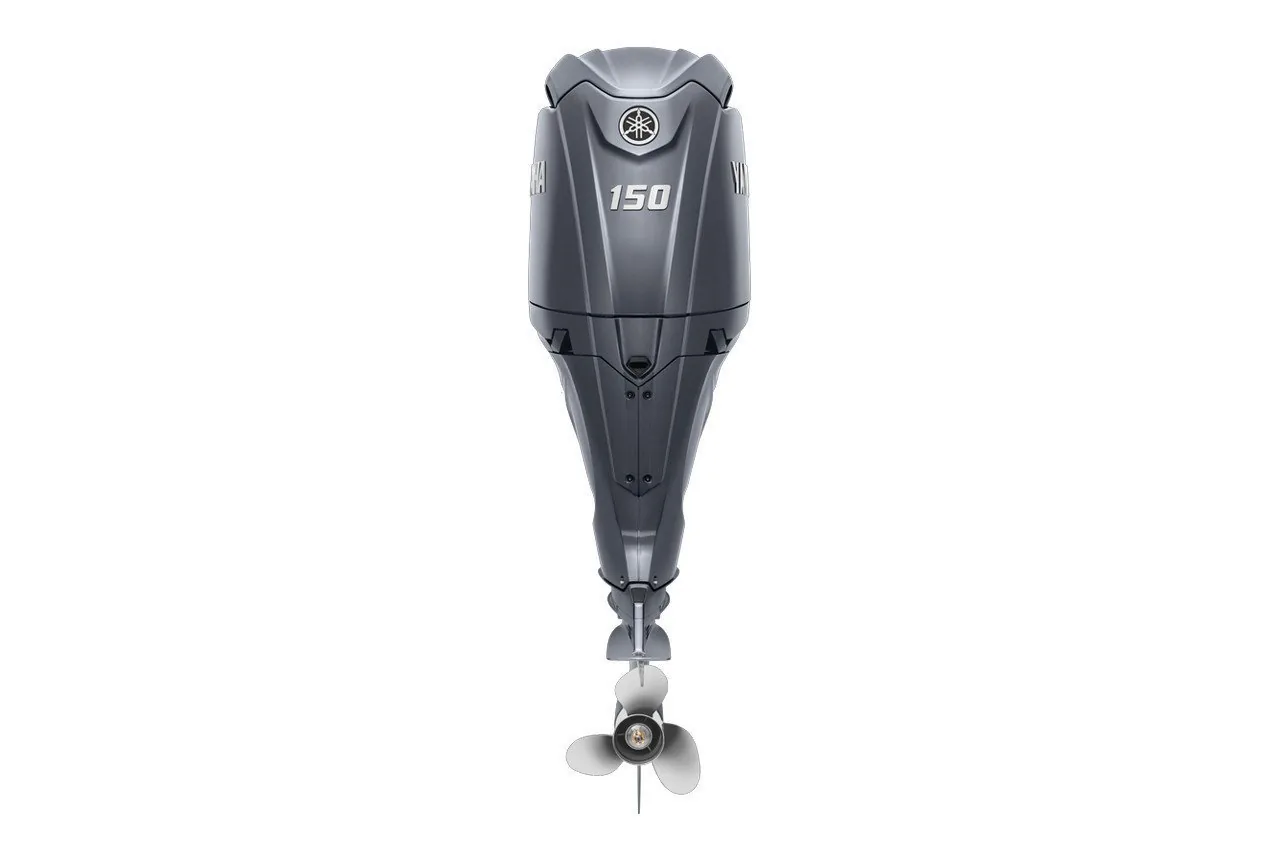

Yamaha F150LD 150HP – 20″ Shaft Remote Mechanical

Yamaha F150LD 150HP EFI 4-Stroke

The Yamaha F150LD 150HP outboard motor represents a pinnacle of marine engineering featuring a high-performance L4 2.7-liter 16-valve DOHC engine architecture for superior maritime propulsion. This robust powerhead delivers a significant 2.7L displacement while maintaining a competitive dry weight of 478 lbs, providing boaters with an optimized power-to-weight ratio for improved vessel agility. Its standard 20-inch shaft length is perfectly calibrated for standard high-transom fiberglass center consoles and aluminum multi-species boats requiring responsive coastal maneuvers and consistent cooling water flow during high-speed transits.

The recommended full-throttle operating range for the F150LD 150HP is a wide 5000-6000 full-throttle RPM range managed by a sophisticated Precision Multi-Point EFI fuel induction system. The specialized 2.00:1 gear ratio efficiently translates mechanical energy from these reliable marine propulsion systems into low-end torque for rapid and smooth hull planing. US coastal anglers and commercial operators depend on this Japanese-engineered platform for its reliable operation and durability when navigating through unpredictable and marine offshore environments found during open-water missions.

Technical Specifications of Yamaha F150LD

- This outboard utilizes a 2.7L DOHC 16-valve architecture to deliver 150 horsepower efficiently.
- The lightweight 217 kg design features a 20-inch shaft for standard boat transoms.
- Precision Multi-Point EFI is designed to support consistent combustion across the 5000-6000 full-throttle RPM band.
- A specialized 2.00 to 1 gear ratio provides mechanical leverage for heavy hull thrust.
- Standard right-hand rotation and remote mechanical steering allow for predictable vessel handling and control.
- An onboard 35-amp alternator helps support critical navigation displays and NMEA 2000 equipment remain powered.
- Your investment is protected by a 3-year limited warranty backed by Japanese manufacturing standards.

F150LD Engine Tech

The F150LD utilizes a 16-valve DOHC configuration within its robust 2.7-liter inline-four engine block. This mechanical design maximizes air intake flow to helps support rapid and responsive hole-shot acceleration. Coastal boaters can easily push heavily loaded fiberglass vessels through challenging and choppy offshore conditions.

Yamaha 150HP EFI

This 4-Stroke 150HP motor incorporates a Precision Multi-Point EFI system to optimize internal combustion cycles. Continuous digital calibration prevents power loss and helps support instant turnkey starting across varying atmospheric pressures. You achieve outstanding fuel economy during long pelagic fishing trips to distant and remote offshore reefs.

4-Stroke 20-Inch Shaft

The F150LD 150HP integrates a standard 20-inch shaft explicitly calibrated for standard high-transom vessel dimensions. This optimal lower unit depth prevents propeller ventilation while maintaining secure mechanical leverage during turns. US boaters can confidently navigate tight coastal flats with predictable handling and superior steering precision.

150HP NMEA Electronics

The 150HP outboard seamlessly connects with modern digital helm displays via a certified NMEA 2000 interface. An integrated 35-amp alternator generates consistent electrical output to supply your critical onboard navigation instruments. Serious tournament fishermen can operate multiple sonar screens and pumps simultaneously without draining the starting battery.

Yamaha Factory Warranty

The Yamaha F150LD is protected by a comprehensive 3-year limited factory warranty backed by strict standards. This factory protection plan helps support long-term maritime durability and covers critical structural or essential mechanical defects. Owners gain peace of mind knowing their high-performance investment is supported by a global service network.

Coastal Vessel Match

The F150LD 150HP provides the appropriate balance for modern fiberglass and high-performance aluminum hulls. Its lightweight 478 lbs design prevents stern-heavy displacement while maximizing planing speeds on open water. US bay boat owners enjoy superior agility when navigating shallow coastal estuaries or large inland lakes.

Engine Care Protocol

This 4-Stroke 150HP requires minimal routine maintenance due to its robust internal components and alloys. High-quality sacrificial anodes and the thermostatic cooling system protect the powerhead from harmful galvanic corrosion.Maintenance note: Follow the manufacturer’s service procedures and lubrication specifications for the engine and gearcase.
