Eliminate chronic smoke and compression loss across aging platforms with this Toyota Tercel 3E-E Remanufactured Engine. Each 1.5L 4-Cylinder SOHC assembly features casting 3E iron block metallurgy and refreshed valvetrain geometry. Technicians must verify exact mechanical valve lash clearance during installation and complete an essential 500-mile break-in oil service to protect the single overhead camshaft.

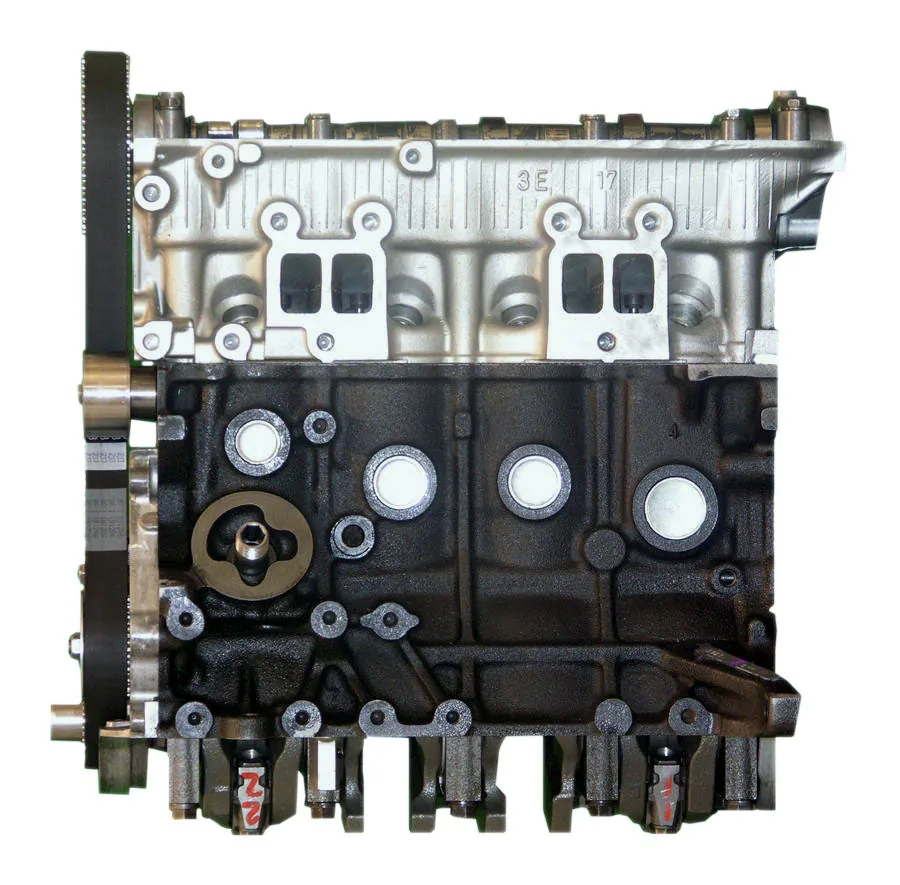

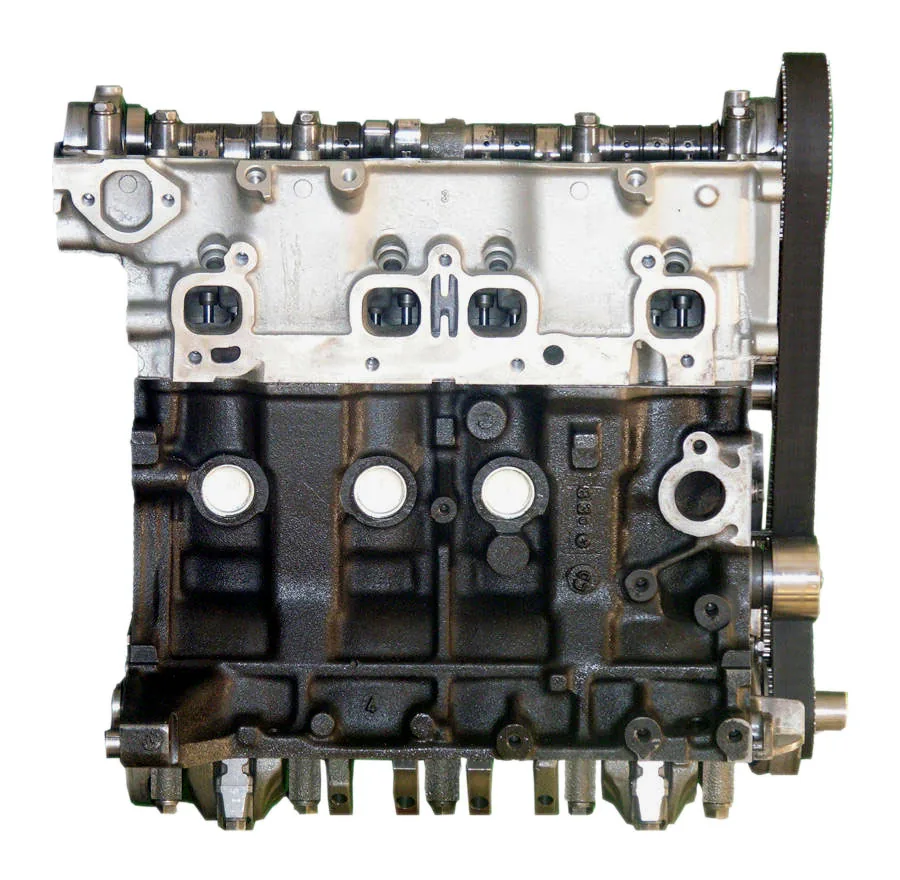

Featuring a cast iron block with driver side deck number 3 casting marks, this assembly provides long-term cylinder bore stability. The cylinder head uses casting 3e-7-1 architecture with 8.346in center-to-center fuel rail mounting bolt spacing. A micro-polished forged steel crankshaft connects to balanced forged rods and oversized hypereutectic pistons. Net engine weight equals 228 lbs in crated dimensions of 36in length by 36in width by 36in height. Engine oil capacity totals 3.4 quarts.

Key Features of Toyota 3E-E

Restoration facilities buy Toyota 3E-E remanufactured engine assemblies to restore original fuel economy and reliable cold-start operation. This long block replacement provides drop-in fitment for compact front-wheel-drive commuter passenger cars.

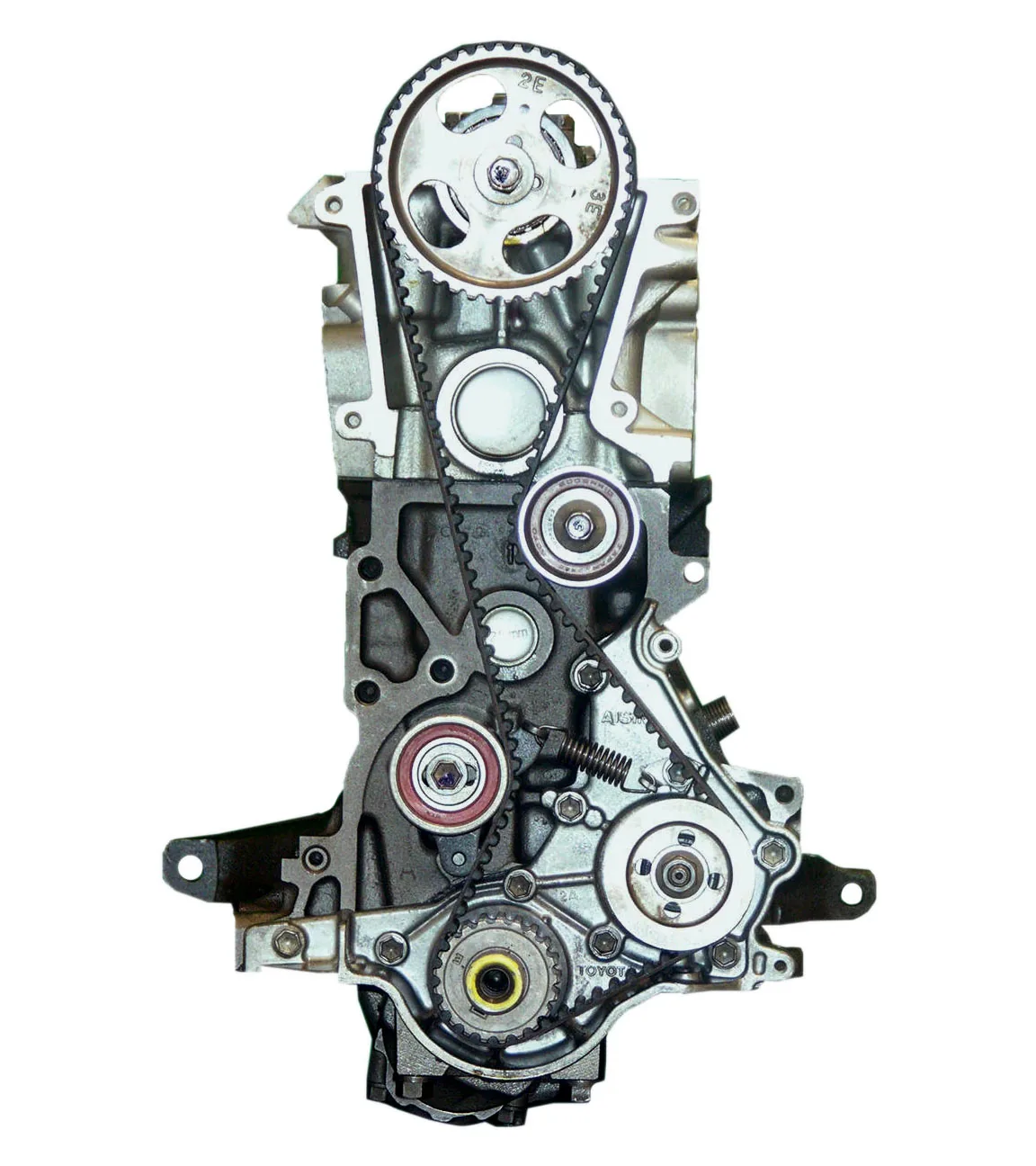

- Pre-installed timing belt and mechanical tensioner eliminate valvetrain setup errors during initial installation.
- Cast iron cylinder block decks receive precision resurfacing to secure combustion seal under high cylinder pressures.
- Diamond plateau honed cylinder walls establish an Ra 15 micro-inch finish for fast piston ring seating.
- Single overhead camshaft lobes undergo precision inspection and micro-polishing to eliminate rocker arm friction.
- Micro-polished crankshaft journals maintain total indicator runout under 0.0003in TIR for bearing longevity.
- Cylinder head casting 3e-7-1 receives multi-angle valve seat cutting to eliminate combustion pressure leakage.
- High-tensile cylinder head bolts maintain uniform clamping force across the composite graphite head gasket.

Dyno Load Operational Tolerances Specifications

Dyno spin testing confirms oiling performance and mechanical integrity before crating. The 1.5L 1456cc SOHC engine outputs 82 HP at 5,200 RPM and 89 ft-lbs of shaft torque at 4,400 RPM. Crankshaft main bearing oil clearance measures 0.0010in to 0.0014in, while connecting rod bearing oil clearance holds at 0.0011in to 0.0014in. Individual cylinder compression gauges show 180 PSI across all four cylinders. Hot oil pressure maintains 50 PSI at 3,000 RPM while regulated coolant temperatures maintain 185°F under steady shop bench loads.

Vehicle Fitment Drivetrain Guide

This engine fits 1990 to 1994 Toyota Tercel models and 1991 to 1994 Toyota Paseo platforms equipped with the 1.5L 1456cc SOHC 3E-E engine with 8.346in fuel rail mount spacing. Drivetrains require front-wheel-drive configurations with manual or automatic transaxles. This unit does not fit carbureted 3E models, 8.740in fuel rail mount patterns requiring casting 832A, or subsequent 1.5L DOHC 5E-FE Paseo engines due to distinct intake manifolds, cylinder head port designs, and distributor drives.

Installation Protocol Service Requirements

Technicians must set mechanical valve lash clearances to specification and inspect fuel injector seals during installation. Operational warnings restrict use in custom forced induction projects exceeding 5 PSI boost or high-load towing chassis that accelerate thermal head distortion.

- Pre-lube oil passages and prime the mechanical oil pump with 10W-30 motor oil before first startup.
- Drain break-in oil and replace the spin-on oil filter after completing the initial 500 miles.
- Recheck mechanical valve lash clearances and retorque intake manifold bolts at the 1,000-mile maintenance check.

Warranty Terms Core Return Policy

This remanufactured long block comes backed by our dependable 3-Year Unlimited-Mile warranty coverage. We provide free prepaid freight return shipping for your original core within 30 days of shipment receipt. Your secure crate contains the remanufactured long block, pre-installed timing belt, tensioner, oil pan, and valve cover assembly.
