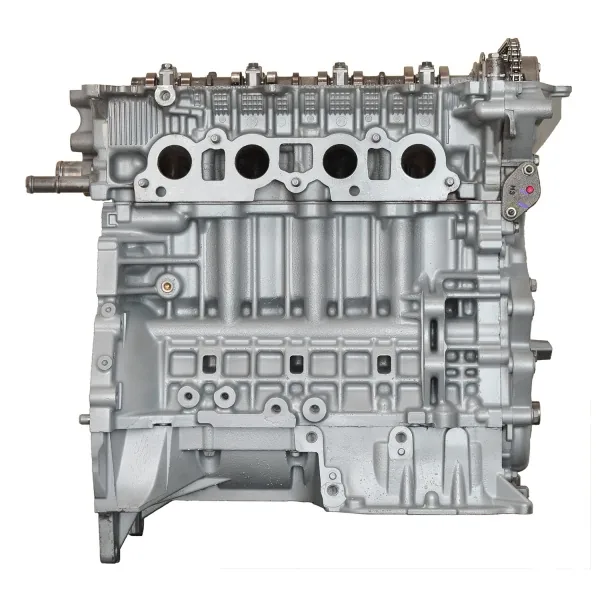

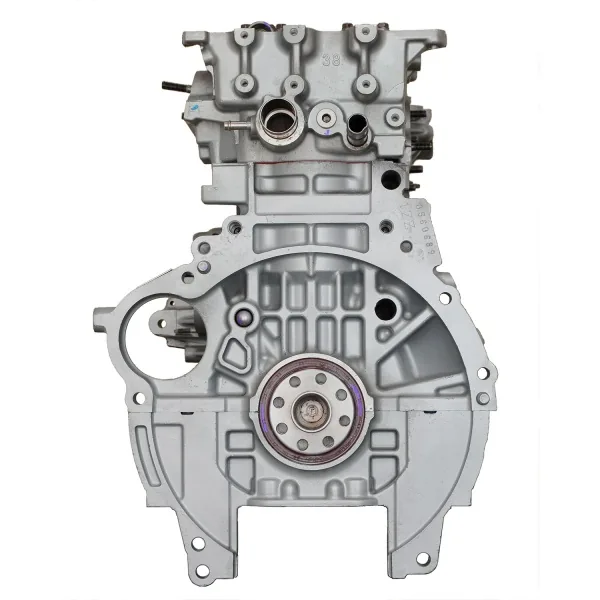

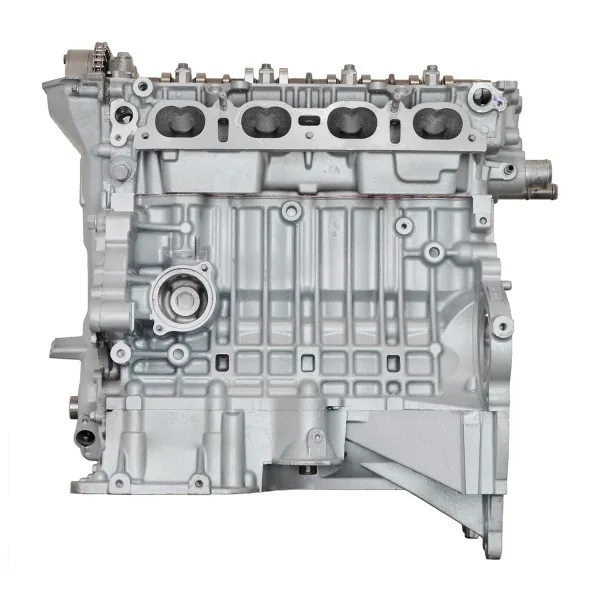

Experience crisp throttle response and vibration-free cruising with this Toyota Celica 1ZZ-FE Remanufactured Engine. Each 1.8L 4-Cylinder 16-Valve DOHC long block features diamond-surfaced aluminum deck surfaces and line-honed main bearing saddles. Technicians must perform pressurized oil priming before initial cranking and execute an exact 500-mile break-in oil change to protect the variable valve timing intake cam phaser.

Manufactured with aluminum block casting 1ZZ marked above the bellhousing on the right rear deck, this assembly features cast iron cylinder liners align-honed for crankshaft centerline concentricity. The rotating foundation features a micro-polished forged steel crankshaft, forged connecting rods, and updated hypereutectic pistons with enhanced oil drain ports. Cylinder head casting 1ZZ receives CNC valve seat cutting. Dry weight measures 250 lbs inside crated dimensions of 36in length by 36in width by 36in height. Sump capacity holds 4.4 quarts.

Key Features of Toyota 1ZZ-FE

Independent automotive repair facilities buy Toyota 1ZZ-FE remanufactured engine long blocks to eliminate chronic piston ring oil burning and timing chain chatter. This long block replacement provides factory-matched machine tolerances for front-wheel-drive and mid-engine sports platforms.

- Updated hypereutectic pistons feature revised oil return passages to prevent carbon pack and oil ring sticking.
- Right side of engine block features threaded bosses to support the driveshaft center carrier bearing.

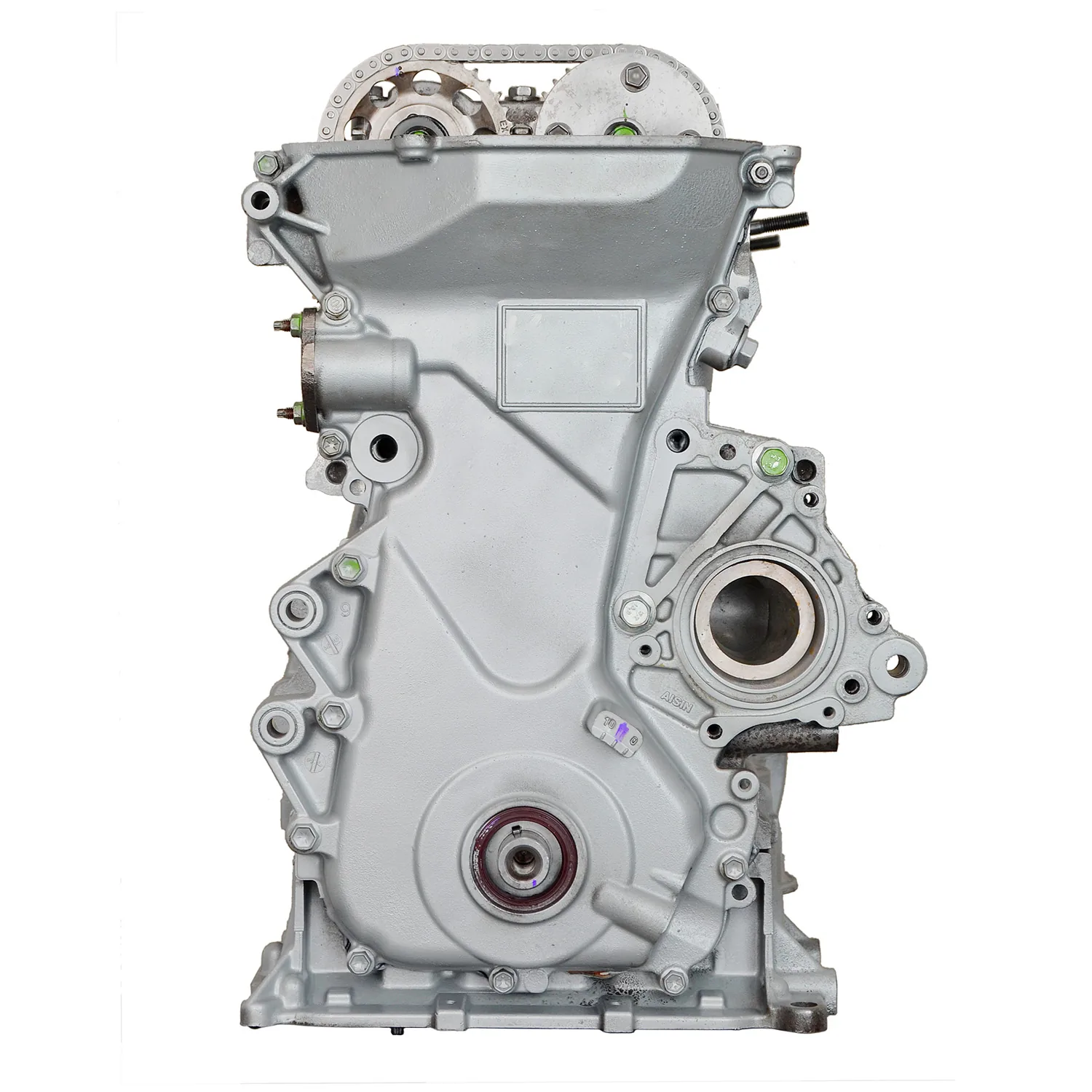

- Pre-installed front timing cover and chain drive ensure accurate intake variable valve timing phase advance.
- Diamond plateau honed cylinder walls establish an Ra 14 micro-inch crosshatch finish for ring seating.
- Micro-polished crankshaft journals eliminate runout to protect bi-metal engine bearings under load.
- Multi-layer steel head gaskets ensure combustion chamber seal integrity under elevated thermal load cycles.
- Align-honed main bearing tunnels preserve bearing crush and circularity under elevated engine speeds.

Dyno Load Operational Tolerances Specifications

Dyno cell spin testing verifies mechanical oil gallery pressurization and power output prior to crate packaging. The 1.8L 1794cc DOHC VVT-i engine produces 140 HP at 6,400 RPM and 125 ft-lbs of shaft torque at 4,200 RPM. Crankshaft main journal oil clearance holds between 0.0010in and 0.0014in, while connecting rod clearance measures 0.0011in to 0.0014in. Individual cylinder compression gauges verify 185 PSI across all 4 cylinders. Hot engine oil pressure maintains 55 PSI at 3,000 RPM with regulated coolant operating temperatures steady at 190°F.

Vehicle Fitment Drivetrain Guide

This long block repowers 2000 to 2005 Toyota Celica GT, 2000 to 2005 Toyota MR2 Spyder, 2003 to 2005 Toyota Matrix base, and Pontiac Vibe models carrying VIN Code R with block casting 1ZZ and right-side driveshaft bearing bosses. Compatible drivetrains include front-wheel drive and mid-engine rear-wheel drive. This unit does not fit 2ZZ-GE 1.8L lift models, earlier non-VVT 1998 Corolla chassis, or 2.4L 2AZ-FE platforms due to cylinder head castings and block deck dimensions.

Installation Protocol Service Requirements

Technicians must clean the variable valve timing oil control valve filter screen, inspect chain tensioner click-stops, and verify throttle body gasket sealing during installation. Operational warnings restrict use in custom turbo applications exceeding 6 PSI boost on stock open-deck blocks or road race vehicles lacking baffled oil sumps.

- Pre-fill the spin-on oil filter and prime the lubrication circuit with 5W-30 synthetic blend oil.
- Drain initial break-in oil and install a replacement oil filter at the 500-mile maintenance mark.
- Check variable valve timing solenoid electrical harness connectors and inspect coolant hoses at 1,500 miles.

Warranty Terms Core Return Policy

This long block carries our standard 3-Year Unlimited-Mile warranty for reliable road service. We provide free prepaid return freight shipping for your depleted rebuildable core engine within a standard 30-day window. The crated assembly contains the remanufactured long block, complete timing drive, oil pan, and valve cover.
