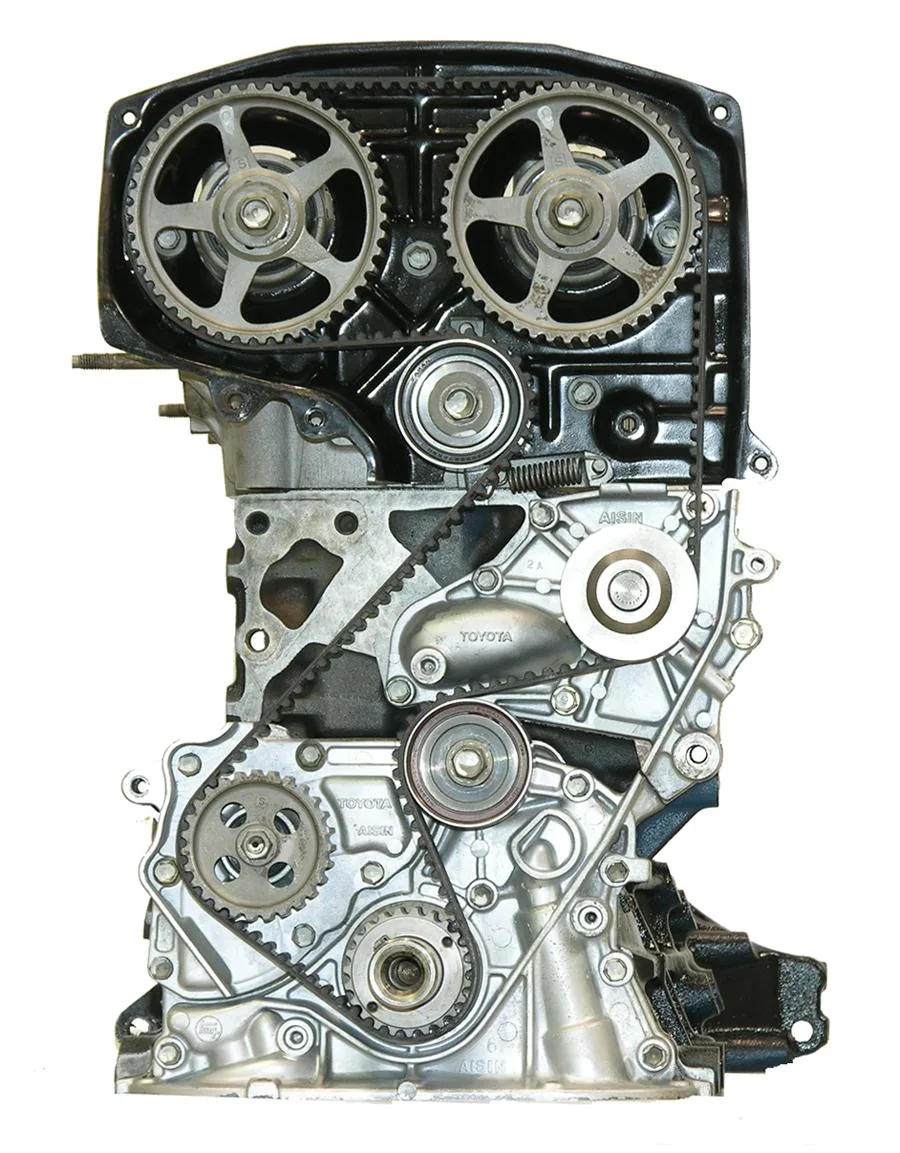

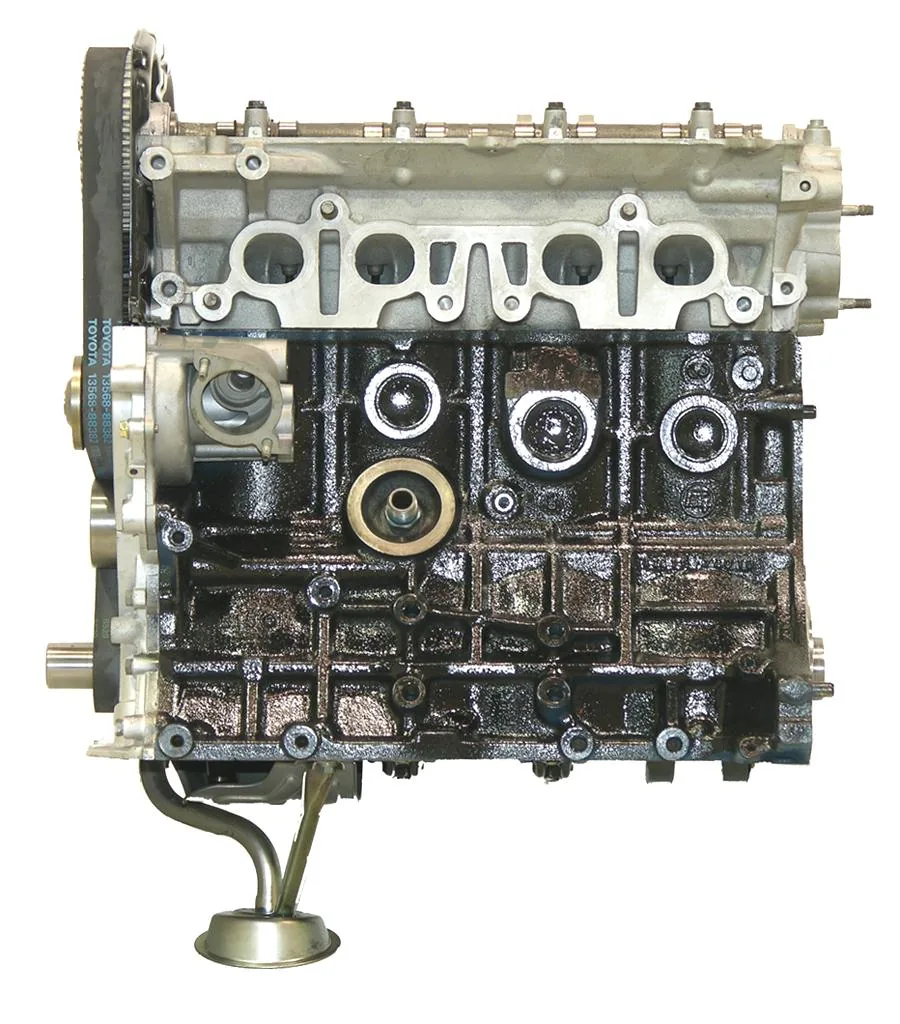

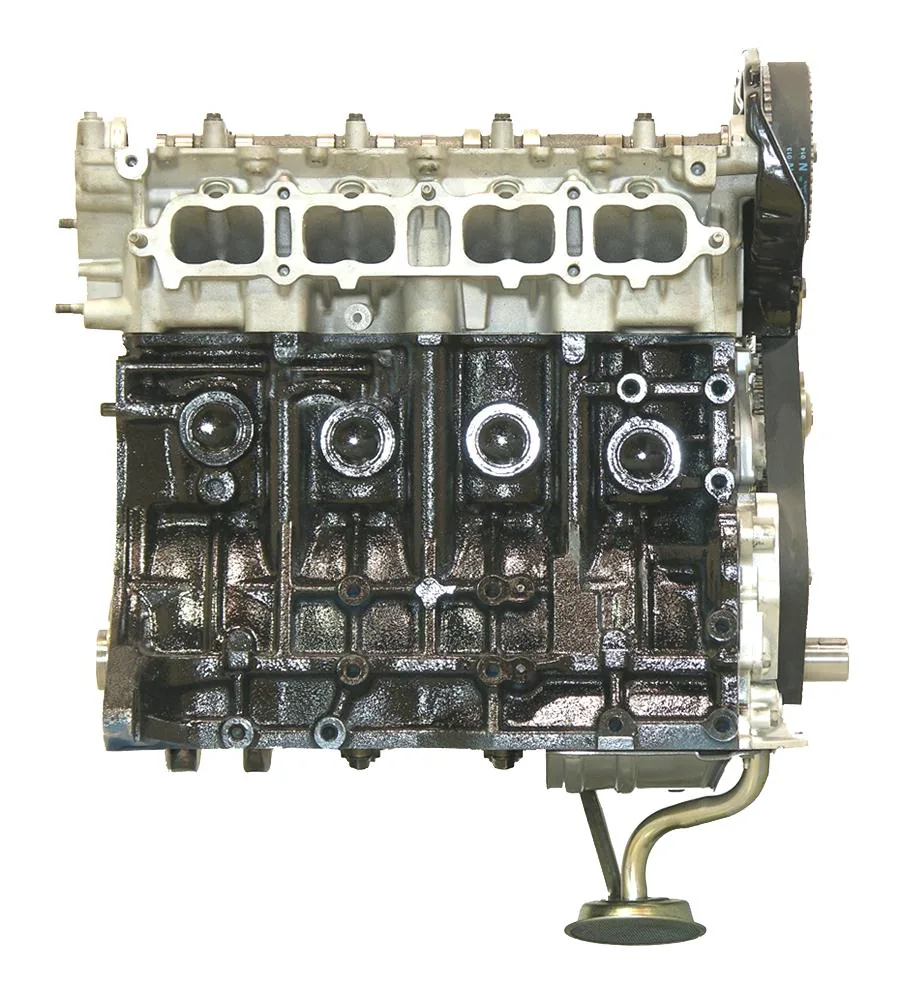

Restore high-revving performance to your classic liftback with this Toyota Celica GTS 3S-GELC Remanufactured Engine. Each 2.0L 4-Cylinder 16-Valve DOHC long block features diamond-honed cylinder sleeves and precision-ground camshaft lobes. Technicians must verify external EGR pipe alignment during installation and complete an exact 500-mile break-in oil change to protect the flat tappet valvetrain from wear.

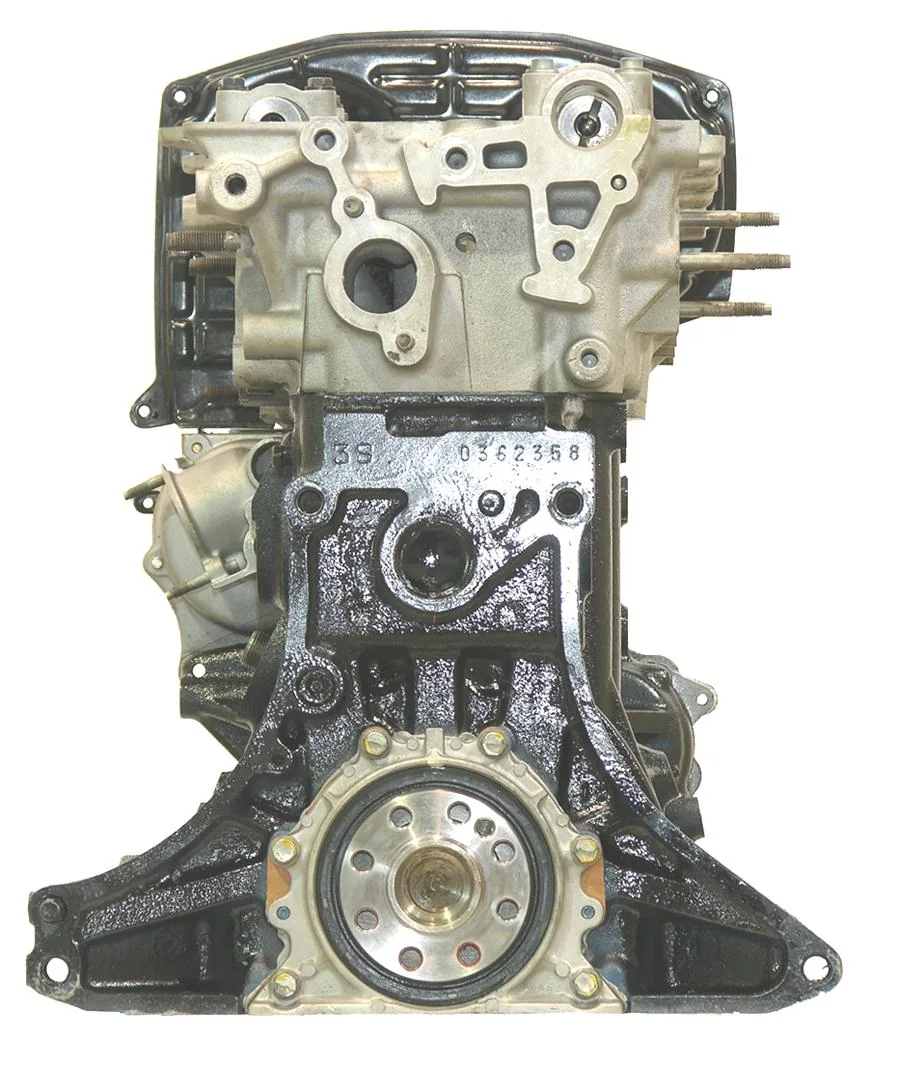

Built with cast iron block casting 3S marked above the bellhousing, this engine provides rigid bore stability under heavy thermal cycles. The rotating assembly features a micro-polished forged steel crankshaft with an 8-bolt flywheel pattern, forged connecting rods, and hypereutectic aluminum pistons. Cylinder head casting 3SGE receives diamond deck resurfacing for optimal head gasket retention. Net weight totals 228 lbs inside crated dimensions of 36in length by 36in width by 36in height. Sump capacity measures 4.5 quarts.

Key Features of Toyota 3S-GELC

Classic Japanese sports car collectors buy Toyota 3S-GELC remanufactured engine assemblies to restore original compression and factory power output. This long block replacement provides verified tolerances for transverse front-wheel-drive sport liftback applications.

- Cylinder head casting 3SGE receives precision 5-angle valve cutting to maintain 0.001in seat runout.
- Pre-installed water pump and timing components speed up garage installation turnaround times.
- Diamond plateau honed cylinder bores establish an Ra 15 micro-inch finish to seat piston rings.
- Micro-polished crankshaft journals eliminate journal taper to ensure hydrodynamic bearing oil film separation.
- Align-honed cast iron main saddles support proper crankshaft rotation under high engine RPM.
- Multi-layer steel head gaskets provide combustion seal durability against high cylinder pressure spikes.
- New high-strength cylinder head bolts supply uniform clamping load across all 16 combustion chambers.

Dyno Load Precision Machining Tolerances

Dyno cell testing certifies mechanical power production and internal oil control before crate shipment. The 2.0L 1998cc DOHC engine produces 135 HP at 6,000 RPM and 125 ft-lbs of shaft torque at 4,800 RPM. Crankshaft main journal oil clearance measures 0.0011in to 0.0015in, while connecting rod clearance holds at 0.0012in. Individual cylinder compression verifies at 185 PSI across all 4 chambers. Hot engine oil pressure holds 55 PSI at 3,000 RPM with regulated coolant operating temperatures steady at 190°F.

Vehicle Fitment Drivetrain Guide

This remanufactured long block fits 1986 to 1988 Toyota Celica GTS liftbacks and coupes equipped with the 2.0L 1998cc DOHC 3S-GELC engine. Chassis fitment requires front-wheel drive, an external EGR tube running from exhaust to intake, and an 8-bolt flywheel crank flange. This unit does not fit internal EGR variants requiring casting 828, turbocharged 3S-GTE All-Trac platforms, or subsequent 2.2L 5S-FE Celica models due to cylinder head port and block casting differences.

Installation Protocol Service Requirements

Technicians must verify manual throttle linkage sweep and check flywheel bolt torque prior to transaxle installation. Operational warnings restrict installation on custom turbo setups exceeding 5 PSI boost on stock compression pistons or non-vented track chassis lacking oil coolers.

- Pre-fill the oil filter and prime the lubrication galleries with 10W-30 conventional oil before first cranking.
- Drain initial break-in oil and install a fresh oil filter at the 500-mile service interval.
- Inspect external EGR union fittings and adjust mechanical valve clearance shims at the 1,500-mile check.

Warranty Terms Core Return Policy

This long block carries our standard 3-Year Unlimited-Mile warranty for reliable road protection. We provide free prepaid return freight shipping for your depleted rebuildable core engine within 30 days of arrival. The crate includes the remanufactured long block, pre-installed water pump, oil pan, and valve cover assembly.
