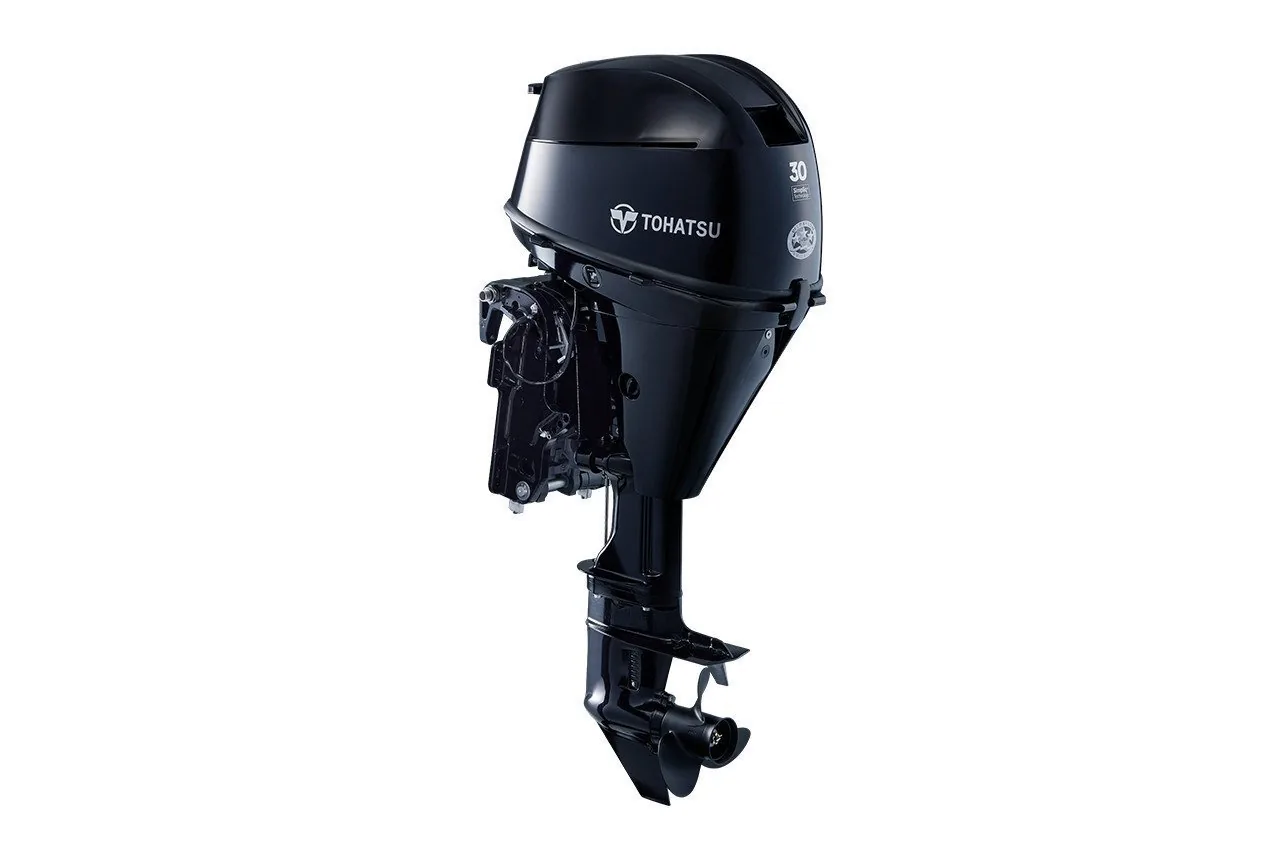

Tohatsu MFS30DETL 30HP D-Series Remote Power Tilt 20″

The Tohatsu MFS30DETL is a 30hp standard rotation outboard designed with a 20-inch shaft for multi-engine offshore boats. This 0.50-liter inline-3 platform handles offshore high-seas operation by distributing its 500 cc displacement over an optimized dry weight of 146 lbs to maximize rigidity. Crafted explicitly for shallow sterns, the 20-inch shaft length helps support complete propeller immersion and continuous bite across remote steering platforms and dual-console skiffs navigating open ocean waters.

Sustaining high-speed cruising across offshore tournament distances is easy when running this heavy-duty powerhead within its 5000 to 6000 RPM threshold. The optimized 2.17:1 gear ratio translates internal combustion pressures into a sweeping torque curve to lift wide hulls on plane rapidly. Backed by proven Japanese engineering excellence, the propulsion platform provides mechanical consistency for captains operating far beyond standard coastal cell phone service ranges.

Technical Specifications of Tohatsu MFS30DETL

- Battery-less electronic fuel injection pushes gasoline precisely for complete combustion and clean power delivery across the powerband.
- A robust 17.5-amp gross alternator easily satisfies the heavy electricity demands of modern multi-display helms.
- Remote mechanical steering compatibility removes traditional complex hydraulic links to streamline rigging and responsive vessel tracking.
- The power trim and tilt feature makes trimming easy with a built-in automatic system for shallow waters.
- An extensive 1.7-liter oil reservoir helps support components stay thoroughly lubricated during long wide-open throttle runs.
- The standard-rotation lower unit helps support traditional clockwise propeller spin for optimized single or primary engine thrust.

SOHC D Series Powerhead

Advanced single overhead camshaft engineering treats the 6-valve cylinder configurations of this inline 3-cylinder block to optimize overall thermal efficiency. This build path cuts unnecessary pounds from the powerhead block while drastically accelerating thermal dissipation under severe high-load operations.

Battery Less EFI Induction

Electronic fuel injection pushes fuel straight into the heart of each intake track for complete combustion cycles on 87 octane fuel. This automated network produces crisp throttle recovery and instant starting capability when navigating treacherous inlets or heavy head seas.

Hydrodynamic Lower Gear Housing

Oversized drive gears housed inside a hydrodynamic lower unit minimize underwater drag profiles during high-speed cruising maneuvers. This robust engineering dampens heavy gear-shift vibration while maximizing directional tracking on deep-transom multi-engine fiberglass hull configurations.

Remote Steering Control Loop

Mechanical steering links connect directly with the transom bracket setup to provide reliable helm response and handling. This mechanical platform coordinates with a stable charging loop to supply constant power to critical open-water electronics arrays.

Remote Steering Setup Integration

Remote steering aluminum fishing setups, dual-console skiffs, light bay boats, pontoon transoms, and rigid hull inflatables ranging from 14 to 19 feet provide the appropriate match. Its 20-inch shaft prevents propeller ventilation when ascending rollers in rough open-ocean swells.

Rapid Fluid Servicing Access Point

Unimpeded maintenance access is guaranteed by a multi-piece cowling array that detaches smoothly for immediate dipstick evaluation. Slick drainage pathways isolate waste fluids to allow for quick oil changes right at the marina slips.Maintenance note: Follow the manufacturer’s service procedures and lubrication specifications for the engine and gearcase.
