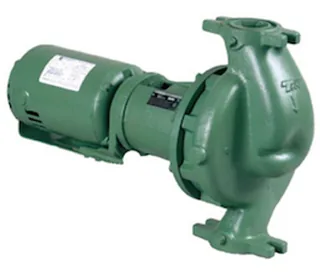

Taco 1612E 1600 Series Cast Iron Centrifugal Pump 1/2HP 1PH

Move closed-loop HVAC water with Taco 1612E, a 1/2 HP close-coupled in-line centrifugal pump rated for up to 95 GPM and 44 feet of head. Its 115/230 V single-phase motor and 1-1/2-inch two-bolt flange suit commercial boiler and chiller secondary loops where installers need a larger flow range than a small zone circulator provides. Confirm the duty point before installation.

The 1725 RPM NEMA 56 ODP motor uses maintenance-free sealed ball bearings, internal thermal overload, a one-piece cast-bronze impeller, and a ceramic face with EPT elastomer seal. The pump is rated for 175 psi, 40°F to 250°F fluid, and a 12-inch flange-to-flange length. Verify the 7.4 or 3.7 amp full-load current, 54-pound dry weight, and system curve before startup.

Key Features & Benefits

- 1/2 HP Motor: Supports commercial boiler, chiller, and closed-loop HVAC circulation.
- 115/230 V Single-Phase: Provides flexible electrical connection for compatible US installations.
- 95 GPM Maximum Flow: Handles larger secondary-loop circulation within the stated performance range.
- 44 Feet Maximum Head: Helps contractors compare the pump with actual system resistance.
- 1-1/2-Inch Two-Bolt Flange: Provides a clear piping reference for replacement work.
- 175 psi Maximum Pressure: Establishes the listed pressure boundary for compatible closed-loop systems.
- Internal Thermal Overload: Provides the specified motor-protection feature during compatible operation.
- 12-Inch Flange-to-Flange Length: Helps installers plan pipe alignment and service clearance.

Why Choose Taco 1612E

The Taco 1612E combines useful flow and head ratings with flexible single-phase voltage, detailed dimensions, and a close-coupled design for commercial hydronic replacement work.

- Build: Cast iron, cast bronze impeller, cupro-nickel shaft sleeve, ceramic seal face, and ODP motor define the assembly.
- Value: The listed current, pressure, dimensions, flow, and head help contractors plan an accurate replacement.
- Audience: Intended for HVAC contractors, boiler technicians, facility engineers, and hydronic maintenance teams.

Applications & Use Cases

Use Taco 1612E for commercial boiler and chiller secondary loops, closed-loop HVAC, and compatible 1-1/2-inch flanged piping. The pump has a 12-inch flange-to-flange length and weighs 54 pounds dry, with a stated 95 GPM maximum flow and 44 feet maximum head. Verify pipe support, valve access, flow direction, and motor clearance before installation.

Warranty & Support

- Warranty Terms Require Confirmation: Verify duration, coverage, registration, exclusions, and authorized service requirements with Taco or the seller.
- Match model 1612E, horsepower, voltage, full-load current, flange size, and pump curve before ordering.

Flush and fill the loop, purge trapped air, inspect the seal and flange gaskets, and verify the selected voltage before startup. Check pressure, flow, vibration, temperature, and leakage during commissioning. Purchase the Taco 1612E 1/2 HP commercial hydronic centrifugal pump through Mulmotor.com for authentic equipment, applicable warranty support, and pump assistance.
