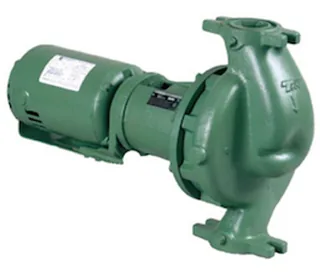

Taco 1600E 1/4HP 1600 Series In-Line Centrifugal Pump

Light commercial HVAC systems use Taco 1600E for closed-loop hydronic heating with 45 GPM capacity and 18 feet of maximum head. Its 1/4 HP, 115 V single-phase motor runs at 1725 RPM through a close-coupled cast iron pump body. Confirm the 1.5-inch two-bolt flange, 4.4 amp load, and internal thermal overload before startup.

The Taco 1600E uses an ASTM A48 cast iron casing, cast bronze impeller, alloy steel shaft with cupro-nickel sleeve, and ceramic-face EPT seal. Its 175 PSI pressure rating and 40°F to 250°F fluid range support compatible closed-loop hydronic systems, while the 12-inch flange-to-flange length and 46-pound dry weight guide replacement planning. The pump uses maintenance-free sealed ball bearings, direct close-coupled construction, and UL and CSA approvals.

Key Features of Taco 1600E

- 1/4 HP motor supports light-commercial HVAC and closed-loop hydronic heating.
- 115 V single-phase operation suits compatible commercial heating circuits.
- 4.4 amp full-load rating assists branch-circuit and overload protection planning.
- 1725 RPM operation supports close-coupled hydronic circulation performance.
- 45 GPM maximum flow handles compatible heating and circulation requirements.
- 18-foot maximum head supports low-head commercial hydronic distribution systems.
- 1.5-inch two-bolt flange connection supports standard replacement installation planning.
- Cast iron casing, bronze impeller, alloy shaft, cupro-nickel sleeve, and EPT seal support closed-loop service.
- 175 PSI pressure rating and 250°F maximum fluid temperature define operating limits.
- Internal thermal overload, 12-inch length, and 46-pound weight support installation planning.

Why Choose Taco 1600E

This Taco cast iron hydronic pump combines defined hydraulic performance with close-coupled construction and internal thermal protection.

- Build: Cast iron, bronze, alloy steel, cupro-nickel, and ceramic-seal components support commercial closed-loop heating.
- Value: Maintenance-free sealed bearings and close-coupled construction can reduce routine service work and replacement complexity.
- Audience: Light-commercial HVAC contractors, boiler technicians, hydronic installers, facility engineers, and radiant-heating teams can specify this model.

Applications & Use Cases

Install the Taco 1600E in closed-loop hydronic heating, light-commercial HVAC, boiler circulation, and compatible radiant systems. Its 12-inch flange-to-flange length, 46-pound dry weight, and 1.5-inch connection support replacement planning around pipe spacing, valve access, motor clearance, wiring, and lifting requirements.

Warranty & Support

- Warranty: A model-specific factory warranty term for the Taco 1600E was not verified and requires confirmation through Taco or the authorized seller.
- Verify 115 V wiring, purge air, inspect the ceramic-face seal, confirm overload protection, and check flow direction during commissioning.

Clean strainers, monitor the cast iron casing for leakage, verify operating pressure, and inspect the flange connection during scheduled maintenance. Purchase the Taco 1600E 1/4 HP in-line centrifugal pump from Mulmotor.com for authentic equipment, applicable factory warranty protection, and pump support.
