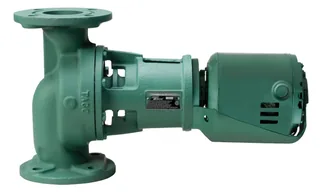

Taco 132 Series 100 Cast Iron Circulating Pump 1/2HP 115/230V

Move closed-loop HVAC water with Taco 132 Series 100, a 1/2 HP three-piece in-line circulator for commercial heating and large radiant systems. Its 115/230 V single-phase motor, 85 GPM maximum flow, and 35 feet maximum head suit larger hydronic circuits where both voltage and system resistance must be checked. The 8-1/2-inch flange-to-flange length also gives installers a useful replacement dimension.

The 1725 RPM ODP motor uses direct drive with a spring-coupled arrangement, Babbitt-lined sleeve bearings, and a two-piece carbon/ceramic mechanical seal. The cast-iron body and non-metallic polymer impeller suit closed-loop service. Verify the 7.2 amp draw at 115 V or 3.6 amps at 230 V, 31-pound dry weight, 125 psi pressure limit, and 240°F maximum fluid temperature before installation.

Key Features & Benefits

- 1/2 HP Motor: Supports commercial heating and large radiant hydronic systems.
- 115/230 V Single-Phase: Provides flexible electrical service for compatible installations.
- 85 GPM Maximum Flow: Handles larger closed-loop circulation within the stated performance range.
- 35 Feet Maximum Head: Helps contractors compare the pump with actual system resistance.
- 2-Bolt Universal Flange: Accommodates compatible 3/4-inch through 1-1/2-inch connection layouts.
- 8-1/2-Inch Flange-to-Flange: Helps plan replacement piping and available installation clearance.
- Automatic Reset Overload: Provides the listed motor-protection feature for compatible service.
- 31-Pound Dry Weight: Gives technicians a practical handling reference before installation.

Why Choose Taco 132 Series 100

The Taco 132 combines useful flow and head ratings with dual-voltage service, universal flanges, and a serviceable three-piece construction for commercial hydronic work.

- Build: Cast iron, polymer impeller, hardened alloy-steel shaft, Babbitt-lined sleeve bearings, and carbon/ceramic seal define the pump.
- Value: Detailed electrical, dimensional, and handling data helps contractors plan a more accurate replacement.
- Audience: Suited to commercial HVAC contractors, boiler technicians, radiant-heating installers, and facility engineers.

Applications & Use Cases

Use Taco 132 for closed-loop hydronic HVAC, commercial heating, large radiant systems, and compatible universal-flange piping. The pump has an 8-1/2-inch flange-to-flange length and 31-pound dry weight, with 85 GPM maximum flow and 35 feet maximum head. Verify pipe support, valve access, flow direction, and service clearance before installation.

Warranty & Support

- Warranty Terms Require Confirmation: Verify duration, coverage, registration, exclusions, and authorized service requirements with Taco or the seller.
- Match model 132, 1/2 HP motor, voltage, full-load current, flange size, and pump curve before ordering.

Flush and fill the loop, purge trapped air, inspect the seal and flange gaskets, and verify the selected voltage before startup. Confirm overload operation and monitor flow, pressure, vibration, temperature, and leakage during commissioning. Purchase the Taco 132 Series 100 cast-iron hydronic circulator through Mulmotor.com for authentic equipment, applicable warranty support, and pump assistance.
