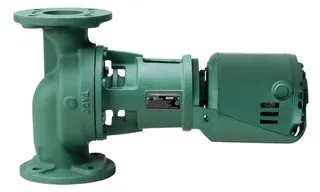

Large hydronic systems use Taco 121 for medium commercial HVAC heating and closed-loop circulation. Its 1/4 HP, 115 V single-phase motor operates at 1725 RPM, delivering up to 72 GPM against 21 feet of head through a cast iron three-piece body. Confirm the 2-bolt universal flange, 3.60 amp load, and automatic overload protection before startup.

The Taco Series 120 121 uses direct drive with spring coupling, Babbitt-lined sleeve bearings, and a non-metallic polymer impeller. Its 125 PSI pressure rating and 40°F to 240°F fluid range define system limits, while the 8-1/2-inch flange-to-flange length and 23-pound dry weight support replacement planning. The pump includes UL and CSA approvals and a 22-foot shut-off head.

Key Features of Taco 121

- 1/4 HP motor supports large closed-loop hydronic and commercial HVAC heating systems.
- 115 V single-phase operation suits compatible medium-commercial heating circuits.
- 3.60 amp full-load rating assists electrical circuit and overload planning.
- 1725 RPM operation supports direct-drive hydronic circulation performance.
- 72 GPM maximum flow handles larger commercial heating distribution requirements.
- 21-foot maximum head supports medium-head hydronic system design.
- 2-bolt universal flange accommodates 3/4-inch through 1-1/2-inch connection kits.
- Automatic-reset overload protection helps protect the motor during excessive heat.
- 125 PSI pressure, 240°F temperature, 8-1/2-inch length, and 23-pound weight guide installation planning.

Why Choose Taco 121

This Taco cast iron circulator combines high flow capacity, universal flange compatibility, and automatic overload protection.

- Build: Cast iron, hardened alloy steel, polymer, and carbon-ceramic components support closed-loop heating service.
- Value: Universal flange options and documented replacement dimensions can reduce piping changes and installation labor.
- Audience: Commercial HVAC contractors, boiler technicians, hydronic installers, facility engineers, and heating-system maintenance teams can specify this model.

Applications & Use Cases

Use the Taco 121 for large closed-loop hydronic systems, medium commercial HVAC heating, boiler circulation, and compatible heating distribution. Its 8-1/2-inch flange-to-flange length, 23-pound dry weight, and universal flange design support planning around pipe spacing, valve access, motor clearance, wiring, and service work.

Warranty & Support

- Warranty: A model-specific factory warranty term for the Taco Series 120 121 was not verified and requires confirmation through Taco or the authorized seller.
- Verify 115 V wiring, purge trapped air, inspect the carbon-ceramic seal, confirm overload protection, and check flow direction during commissioning.

Clean strainers, monitor the cast iron casing for leakage, and inspect sleeve-bearing operation during scheduled maintenance. Purchase the Taco 121 cast iron hydronic circulator pump from Mulmotor.com for authentic equipment, applicable factory warranty protection, and pump support.
