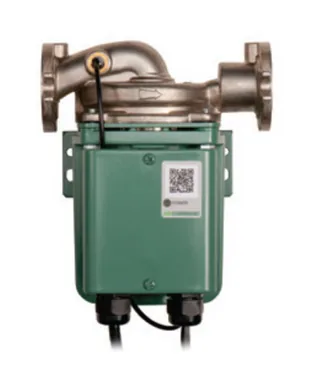

Taco 0011-CF-USK Pump 3/4″ Flanged Circulator

Residential and commercial retrofit work can use the Taco 0011-CF-USK with the included pump and union strategy kit for large-home or commercial domestic-hot-water circulation. The kit retains standard 0011 performance while adding installation hardware, and its replaceable cartridge supports service planning when the circulator requires component-level repair.

Taco documentation identifies the 0011-CF-USK for domestic-hot-water recirculation, including systems serving up to approximately 200 feet of piping. The installation requires a suitable 110 V outlet, completed plumbing connections, and water flow before energizing the pump, because dry operation can damage internal components.

Key Features

- The pump and union strategy kit combines circulation equipment with installation hardware for retrofit planning.
- Standard 0011 performance provides the hydraulic reference for compatible replacement evaluation.
- The replaceable cartridge supports field service without replacing the complete circulator assembly.
- Residential and commercial retrofit applications define the listed installation context.
- The 0011-CF-USK format supports large-home domestic-hot-water circulation layouts.
- Electrical supply must be available before commissioning the pump assembly.

Hydraulic Performance and Application

The 0011-CF-USK is listed for domestic-hot-water recirculation in residential and commercial retrofit installations, with Taco documentation identifying a 0 to 8 GPM flow range and 0 to 26 feet of head. These ranges guide selection, but actual operation depends on piping resistance and system layout.

Installation Requirements

Provide the required 110 V electrical outlet, complete all plumbing and wiring connections, open the water supply, and verify circulation before energizing the pump. The union strategy kit must align with the existing piping, while the cartridge and service area should remain accessible after installation.

Warranty and Maintenance

The supplied SKU record does not identify a separate named warranty period for the 0011-CF-USK kit. Taco instructions warn that operating without water can damage internal components and void warranty coverage. The replaceable cartridge supports service planning, and Mulmotor provides product-information support before purchase and assistance with order-related questions.
