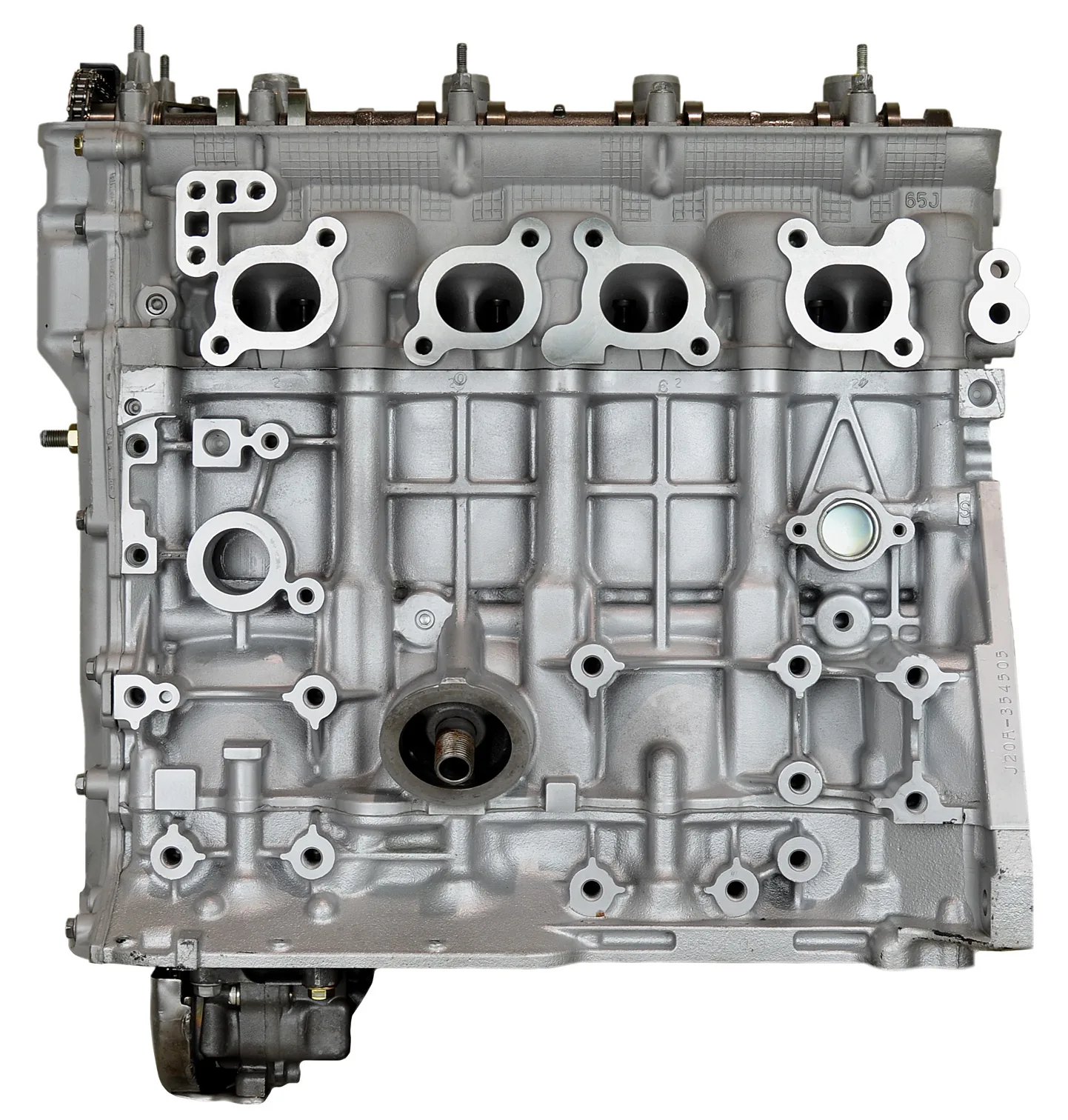

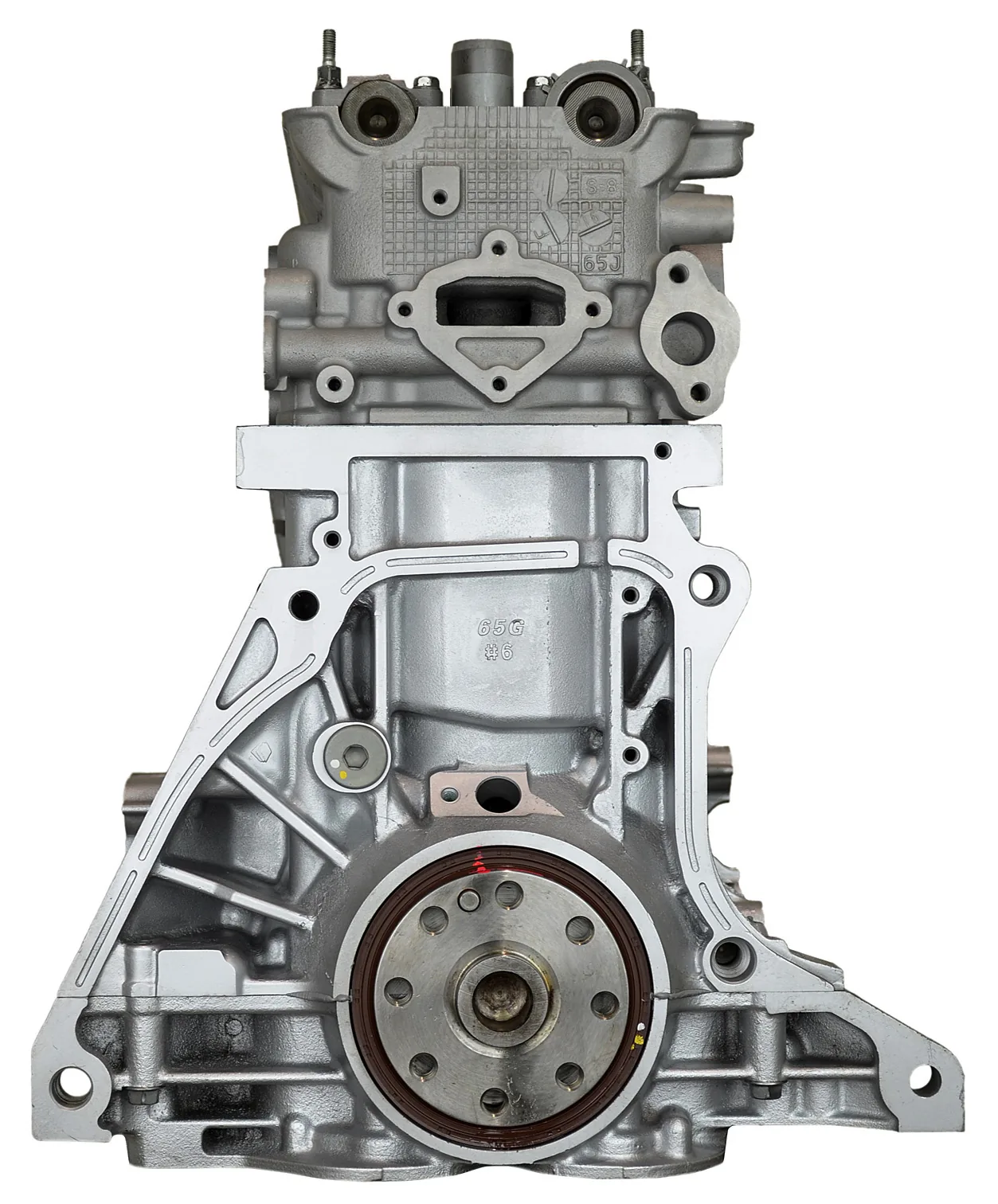

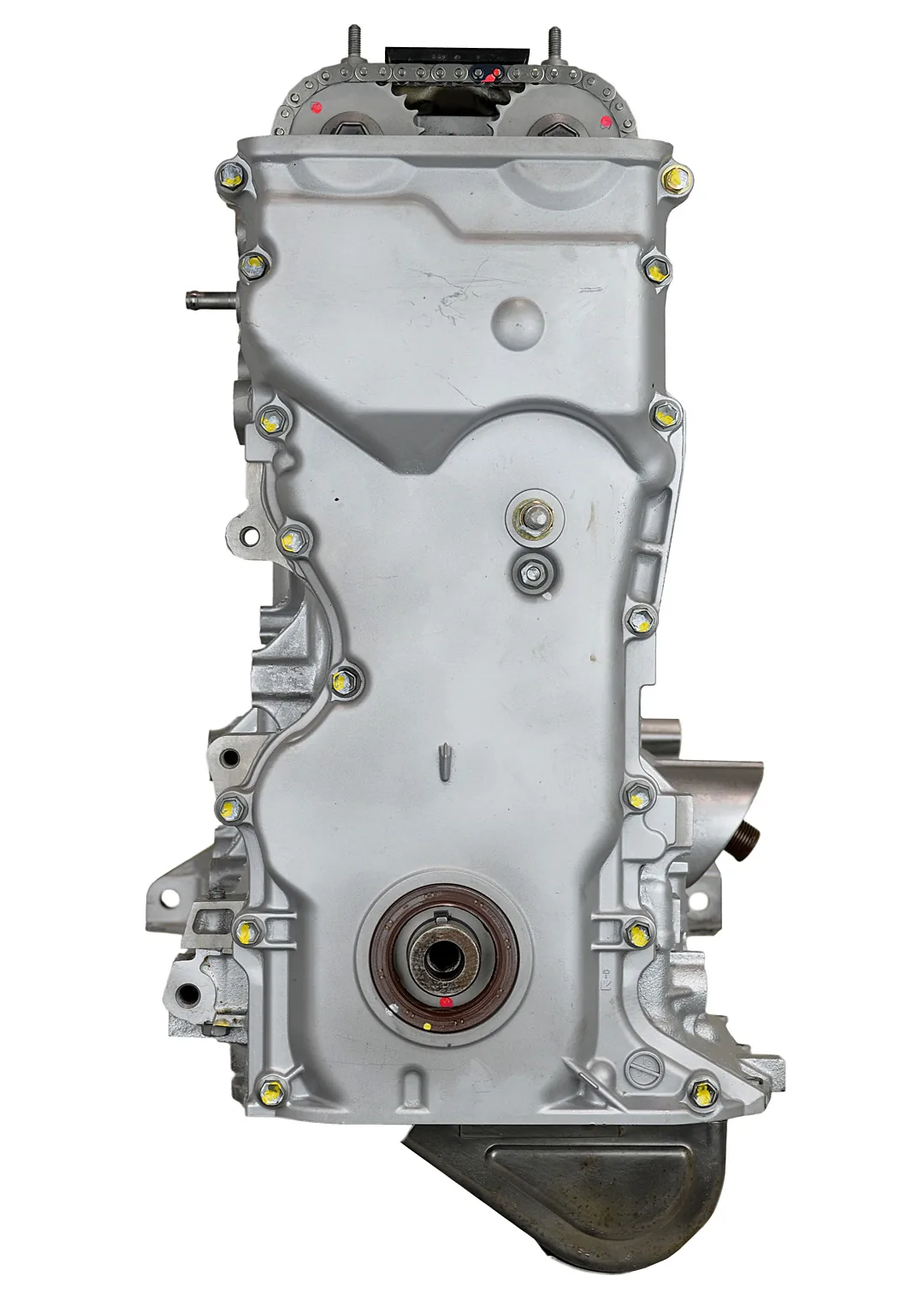

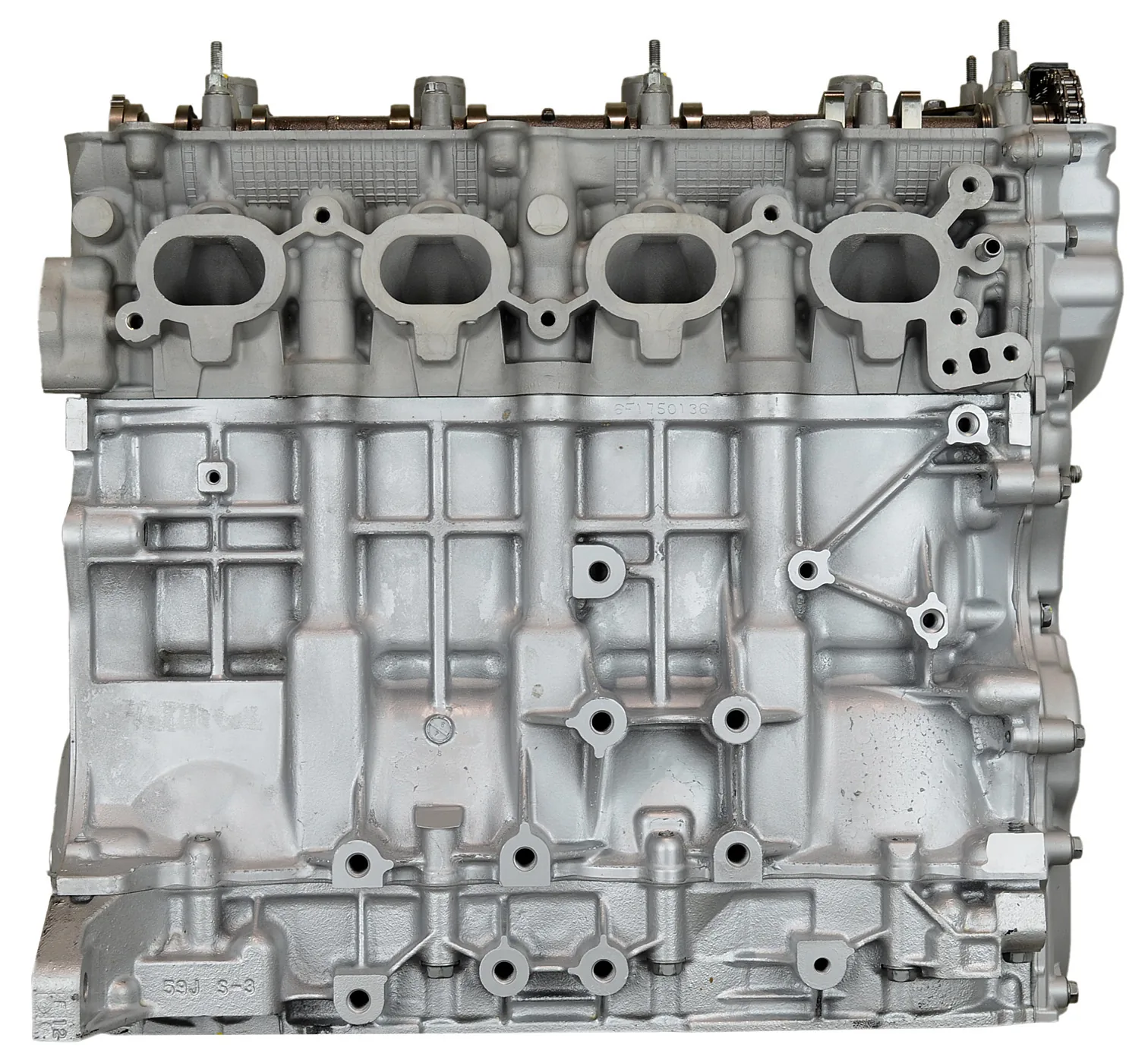

Technicians confront timing chain rattle and oil consumption in worn Japanese crossovers. This Suzuki Grand Vitara SX4 J20A Remanufactured Engine solves internal cylinder wear with fresh machine work. The 2.0L 4-Cylinder 16-Valve assembly features casting J20A and 65G markers. Mechanics must bleed the hydraulic timing chain tensioner prior to first start to prevent tooth skip.

Cast iron cylinder liners embedded within an aluminum alloy block create a rigid crankcase foundation with casting code 65G. A forged steel crankshaft spins on precision tri-metal bearings inside line-bored main journals. Aluminum cylinder heads house double overhead camshafts driving 16 valves through bucket tappets. Dry long block weight equals 248 lbs. The boxed crate envelope dimensions span 36in length by 36in width by 36in height. The aluminum oil pan holds 5.0 quarts of motor oil.

Key Features of Suzuki J20A

Independent repair centers buy Suzuki J20A remanufactured engine assemblies to restore sport utility drivability and reduce customer downtime. Each remanufactured long block replacement meets factory dimensional tolerances across critical engine friction surfaces.

- Block casting J20A with 65G designation receives precision CNC deck milling to preserve sealing integrity.
- Align-honed main bearing saddles maintain hydrodynamic oil film under heavy load conditions.
- Plateau cylinder honing creates an optimal cross-hatch pattern for rapid piston ring seating.
- Micro-polished crankshaft journals eliminate friction to support extended bearing operating life.
- Multi-layer steel cylinder head gaskets prevent coolant migration into combustion chambers.
- Valve guides undergo diamond reaming to hold stem-to-guide clearance under 0.0012in.
- Upgraded timing chain guide rails eliminate slack and prevent cam timing deviation.

Dyno Load Precision Machining Tolerances

Dyno testing registers 143 HP at 6,000 RPM with 135 ft-lbs of torque at 4,000 RPM. Crankshaft journal runout maintains less than 0.0003in TIR while connecting rod bearing oil clearances measure between 0.0011in and 0.0015in. Cylinder walls receive CNC diamond plateau honing to produce a 14 to 18 Ra finish. Hot oil pressure reads 60 PSI at 3,000 RPM under a regulated 190°F coolant temperature. Individual cylinder compression gauges verify 190 PSI across all 4 cylinders for balanced combustion chamber performance. Machinists measure piston skirt clearance to 0.0012in to prevent cold piston slap.

Vehicle Fitment Drivetrain Guide

This remanufactured long block fits 2007 to 2009 Suzuki Grand Vitara and 2007 to 2009 Suzuki SX4 vehicles equipped with the 2.0L 1995cc 4-Cylinder DOHC engine. Compatible units verify block casting marks J20A and 65G on the lower crankcase skirt. Drivetrain pairings include FWD, AWD, and 4WD configurations bolted to 5-Speed manual or 4-Speed automatic transmissions. This engine does not fit 2.4L J24B models, 2.7L V6 platforms, or earlier Suzuki Aerio applications.

Installation Protocol Service Requirements

Check throttle cable tension or electronic drive-by-wire harness plugs and torque all engine mounts to factory specification. Technicians must clean intake manifolds and flush the radiator core to remove aluminum metal shavings from previous catastrophic failures. Do not operate this stock compression engine with aftermarket forced induction or nitrous systems.

- Pre-lube the engine by priming the oil galleries with fresh 5W-30 motor oil before first crank.
- Perform an initial oil and filter change at 500 miles to capture metallic break-in residues.
- Inspect drive belts and execute regular oil service intervals every 3,000 miles to prevent chain wear.

Warranty Terms Core Return Policy

A comprehensive 3-Year Unlimited-Mile parts warranty backs this remanufactured long block. Core returns qualify for full deposit credit through prepaid return freight shipping within a 30-day period. Your crated delivery includes the assembled long block, pre-timed timing chain set, front timing cover, oil pan, and complete rebuild documentation.
