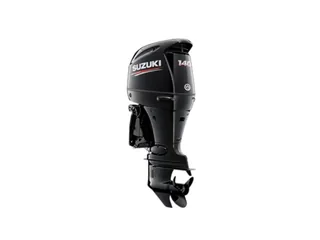

Suzuki DF140AX 140HP 4-Stroke Outboard – 25in Shaft

Conquering heavy tidal currents, the 2.59:1 geared Suzuki DF140AX pushes loaded pontoons smoothly. The 2044cc inline-four block translates raw horsepower into relentless forward thrust, navigating aluminum fishing boats across choppy bays without stalling. Taping your transom validates this 25 inch shaft suzuki outboard motor places the water intakes deep enough for safe continuous operation.

Cut fuel costs dramatically during long coastal runs by relying on the Lean Burn control system to manage combustion mechanically. The engine sensors lean out the air-fuel mixture at cruising speeds automatically. Suzuki engineers the 179 kg assembly using a self-adjusting timing chain mechanism. This heavy-duty internal component stops catastrophic valve timing failures when repowering heavy load pontoons for daily commercial use.

Key Features of Suzuki DF140AX

- 2.59:1 Gear Ratio: Multiplies engine torque effectively, spinning larger diameter propellers to push heavily loaded aluminum boats onto plane much faster.
- 25-Inch XL Shaft Length: Reaches deep below heavily modified offshore transoms, keeping the propeller fully engaged in clean undisturbed water.
- Lean Burn Control Technology: Adjusts the air-to-fuel ratio mechanically at cruising speeds, slashing fuel consumption significantly on long offshore fishing trips.
- Offset Driveshaft Design: Moves the engine block forward over the transom bracket, shifting the center of gravity to improve vessel planing speed drastically.
- Self-Adjusting Timing Chain: Runs silently in an oil bath, eliminating the need to physically replace vulnerable rubber timing belts during seasonal maintenance.
- Multi-Point Sequential EFI: Calculates precise fuel requirements continuously, eliminating carburetor hesitation and ensuring crisp throttle response across the 5600-6200 RPM band.
- 40-Amp Output Alternator: Outputs massive charging power, keeping demanding radar systems and heavy-duty livewell pumps fully powered offshore.
- Hydraulic Power Trim: Adjusts the running angle dynamically via a console switch, optimizing bow attitude across aggressive offshore swells.
- Remote Steering Compatibility: Accepts standard mechanical cables directly from your forward helm, integrating flawlessly for precise directional control.
- Anti-Corrosion Finish: Blocks severe galvanic decay physically, protecting the aluminum powerhead block across decades of daily saltwater exposure.

Why Choose Suzuki DF140AX

Choosing this specific engine limits installation entirely to 25-inch tall transoms rigged with standard mechanical forward steering wheels. You cannot operate this via a tiller handle or digital fly-by-wire controls. Upgrading your rigging geometry is a mandatory step when replacing older mechanical outboards.

- Confirm a 25-inch vertical drop from the mounting bracket to the keel line.
- Install corresponding mechanical control cables sized exactly for your specific offshore hull length.
- Avoid heavy smoke and oil slicks using advanced four-stroke internal lubrication.

Ideal Application and Vessel Fitment

This specialized 25-inch mechanical-steer outboard excels on deep-V center consoles, heavy aluminum offshore fishing boats, and massive pontoon logs carrying heavy payloads. By integrating the offset driveshaft design with a massive 2.59:1 gear ratio, the engine actively pushes the center of gravity forward while multiplying torque, allowing heavy displacement hulls to lift onto plane instantly. The extended shaft allows captains to operate safely in rough water, making this 140hp suzuki extra long shaft outboard an absolute necessity for operators crossing deep coastal inlets.

Warranty, Support and Maintenance

Authorized recreational operation receives a 3-Year Limited Warranty alongside a 3-Year Corrosion Warranty. Registered commercial applications fall under a strict 1-Year Limited Warranty with zero corrosion coverage applied to the block. Scheduled maintenance requires replacing gearcase lubricants and changing oil filters at manual-specified intervals. Always save all physical service records. Your engine serial number acts as the only way to source exact genuine replacement parts. Mulmotor provides product-information support before purchase and assistance with order-related questions.
