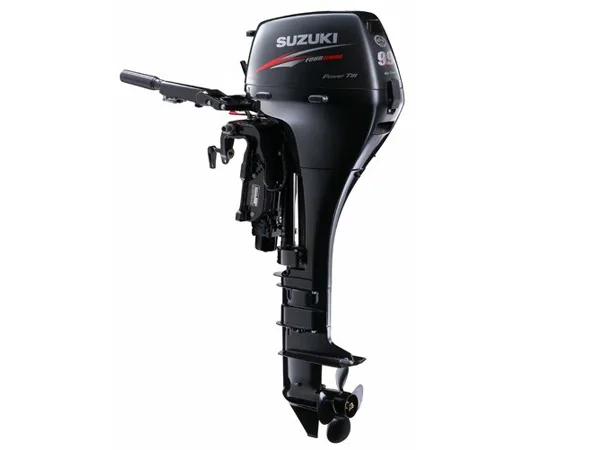

Suzuki 9.9 HP DF9.9BTHX Outboard Motor

The new Suzuki 9.9 HP EFI outboard motor model DF9.9BTHX is a 25 inch long shaft, electric start. The Suzuki 9.9 HP outboard engine is lightweight, compact and fuel efficient. This 2-cylinder 4-stroke is remarkably smooth and quiet. The Suzuki 9.9hp outboard is an excellent choice for skiffs, as well auxiliary power for sailboats and “kickers” for larger fishing boats. Suzuki designed the 9.9hp with user-friendly features such as the multi-function tiller handle which controls steering, throttle, throttle tension, and power tilt. Additionally, a one-touch steering tension control lever located on the front of the engine allows the user to quickly adjust steering friction.

Suzuki 9.9 HP DF9.9BTHX Outboard Motor

- Electronic Fuel Injection (EFI)
- Sleek, Compact, Lightweight Design
- Lightest EFI Outboard in 9.9hp 4-stroke Class
- Saltwater Rated
- Fresh Water Flushing Port
- Multi-Layer Corrosion Protection
- Electric Start + 12V Alternator System
- Thru-Cowling Manual Back-Up Starting
- Forward-Mounted Gear Shift Lever
- Twist-Grip Throttle with Tension Control
- Quiet Through-the-Prop Exhaust
- Start-in-Gear Lockout Protection
- Proven Automotive Style Oil Pump
- Power Tilt
- 5 Trim Positions w/Tilt Lock Pin
- Low Oil Pressure Warning System
- Over Heat Warning System
- Over-Rev Limiter Protection
- Steering Friction Tension Control
- Integrated Carrying Handle
- Emergency Lanyard Stop Switch
- 3.1 US Gallon Fuel Tank / Fuel Line
- 4-Blade Aluminum Propeller
- 3-Star Ultra-Low Emission Rating
- Suzuki’s Lean Burn Control System
- Up to 17% more fuel efficient over
- some competitor’s 4-strokes
- Suzuki 3-Year Warranty

Suzuki 9.9 HP DF9.9BTHX Outboard Motor

Model DF9.9BTHX

Model Year No

SKU DF9.9BTHX-17

Weight 128.0000

Manufacturer Suzuki

Country of Manufacture Thailand

Horsepower 9.9hp

Shaft Length 25″ (Extra Long)

Steering Tiller

Starting Electric

Trim & Tilt Power Tilt

Fuel Delivery EFI

Fuel Tank External

Cylinder(s) 2

Displacement 327 cc (20.0 cubic inches)

Bore and Stroke 60.4 x 57 mm (2.38 x 2.24 inches)

Full Throttle RPM Range 5000-6000 RPM

Ignition System Digital CDI

Induction Scavenging SOHC

Valves per Cylinder 2

Fuel Type Unleaded Gasoline (87 octane)

Fuel Tank / Fuel Line INCLUDED: 3.1 Gallon Fuel Tank and Fuel Line

Oil Type SAE 10W-30 or SAE 10W-40

Oil Capacity 33.8 fl oz. (1000 mL)

Lubrication Wet Sump; Trochoid Type Cam-Driven Oil Pump

Alternator 12V 145W 12A

Cooling System Water-Cooled

Saltwater Rated YES

Gear Ratio 2.08:1

Gear Shift Forward-Neutral-Reverse (front-mounted lever)

Propeller 4-Blade Aluminum 10″ Dia x 5″ Pitch

Internal Battery No

Suzuki 9.9 HP DF9.9BTHX Outboard Motor

What’s in the box?

- 3.1 gal. Fuel Tank
- Fuel Line
- Owner’s Manual
- Aluminum Propeller
- Tool Kit
- Suzuki 3-Yr Warranty
