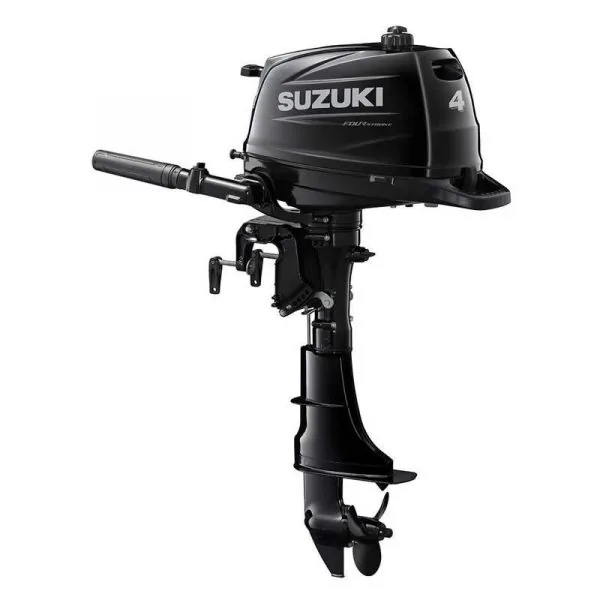

Suzuki 4 HP DF4AS5 Outboard Motor

SPECS

MODEL DF4AS5

WEIGHT 52.0 lb

MANUFACTURER Suzuki

COUNTRY OF MANUFACTURE Thailand

HORSEPOWER 4hp

SHAFT LENGTH 15″ (Short)

STEERING Tiller

STARTING Manual

TRIM & TILT Manual

FUEL DELIVERY Carburetor

FUEL TANK Internal

CYLINDER(S) 1

DISPLACEMENT 138 cc (8.4 cubic inches)

BORE AND STROKE 2.38 x 1.89 inches

FULL THROTTLE RPM RANGE 4000-5000 RPM

IGNITION SYSTEM Digital Capacitor Discharge Ignition System

INDUCTION SCAVENGING OHV

VALVES PER CYLINDER 2

FUEL TYPE Unleaded Gasoline (87 octane)

FUEL TANK / FUEL LINE .26 US Gallon Integral Fuel Tank

OIL TYPE SAE 10W-30 or SAE 10W-40

OIL CAPACITY 24 fl oz. (700 mL)

LUBRICATION Wet Sump

ALTERNATOR Optional 12V 5A (installation required)

COOLING SYSTEM Water-Cooled

SALTWATER RATED Yes

GEAR RATIO 1.92:1

GEAR SHIFT Forward-Neutral-Reverse (starboard side lever)

PROPELLER 3-Blade Aluminum 7.5″ Dia. x 6.5″ Pitch

IN THE BOX

- .26 gal. Integral Fuel Tank
- Owner’s Manual
- Suzuki 5-Year Warranty
- Aluminum Prop
- Tool Kit
