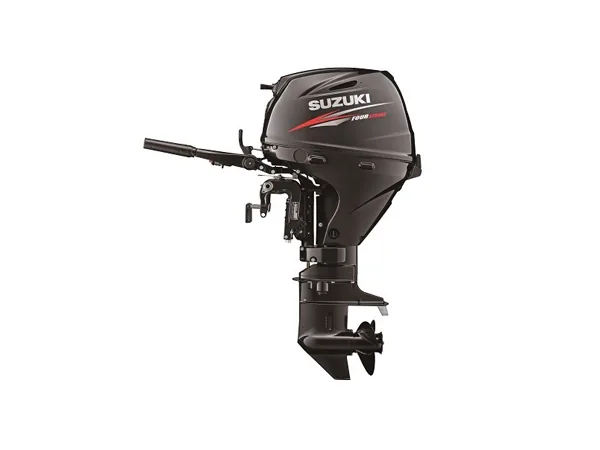

Suzuki 30 HP DF30ATHL2 Outboard Motor

Modern, clean environmental design make the new Suzuki 30 HP outboard motor, model: DF30ATHL2 the most advanced portable outboard on the market today.
This is the world’s first portable 30 hp outboard motor designed for fuel efficenly and clean power with a Battery-Less Electronic Fuel Injection engine. The 30 HP Outboard DF30ATHL2 is an affordable outboard equipped with the 20 inch long shaft, electric start, power trim and tilt, and tiller control. This smooth running “Next Generation” four stroke delivers a fast start, fast acceleration and superior performance with amazing fuel economy. Go Lean, Clean and Green, Go Suzuki!

Suzuki 30 HP DF30ATHL2 Outboard Motor

- Battery-Less Electronic Fuel Injection
- Easy Start – Recoil Starter
- Lean Burn Control
- Over-Rev. Limiter
- Low Oil Pressure Caution
- Digital CDI
- Fresh Water Flushing System
- Shallow Water Drive
- Suzuki Anti-Corrosion System

Suzuki 30 HP DF30ATHL2 Outboard Motor

Model DF30ATHL2

Model Year No

SKU DF30ATHL2-17

Weight 163.0000

Manufacturer Suzuki

Country of Manufacture Thailand

Horsepower 30hp

Shaft Length 20″ (Long)

Steering Tiller

Starting Electric

Trim & Tilt Power Trim & Tilt

Fuel Delivery EFI

Fuel Tank External

Cylinder(s) 3

Displacement 29.8 (489)

Bore and Stroke 2.80 x 2.68 ()

Full Throttle RPM Range 5300 – 6300

Ignition System Digital CDI

Induction Scavenging SOHC

Valves per Cylinder 4

Fuel Type Unleaded Gasoline (87 octane)

Fuel Tank / Fuel Line Yes

Oil Type SAE 10W-30 or SAE 10W-40

Oil Capacity 1.6 (1.5)

Lubrication Wet Sump; Trochoid Type Cam-Driven Oil Pump

Alternator Electric 12V 14A

Cooling System Water-Cooled

Saltwater Rated YES

Gear Ratio 2.09:1

Gear Shift Forward-Neutral-Reverse (front-mounted lever)

Propeller 3 x 10.25 x 12

Internal Battery No

Suzuki 30 HP DF30ATHL2 Outboard Motor

What’s in the box?

- 6 gal Fuel Tank
- Fuel Line
- Owner’s Manual
- Aluminum Propeller
- Tool Kit
