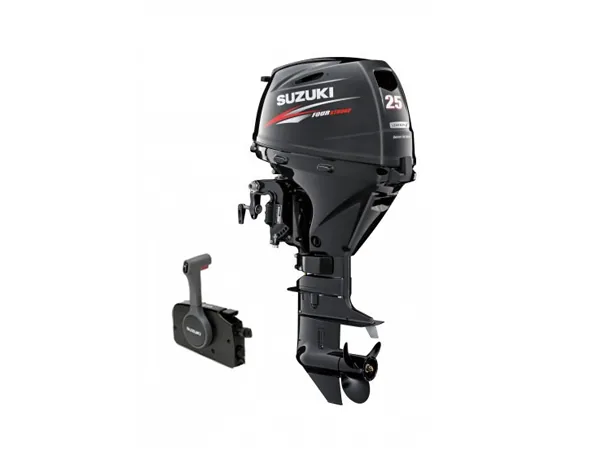

Suzuki 25 HP DF25ATS Outboard Motor

State-of-the-Art designs make the new DF25A the most technically advanced portable outboard on the market today. This is the world’s first 25 hp outboard motor designed with Lean Burn and Battery-Less Electronic Fuel Injection. The Suzuki EFI system operates Battery-Less, which is an industry first in this horse-power class. The DF25A is a smooth running “Next Generation” four stroke which delivers quick starts, great accelleration, awesome performance and superior fuel economy. Go Lean, Clean and Green, Go Suzuki!

Suzuki 25 HP DF25ATS Outboard Motor

- Battery-Less Electronic Fuel Injection
- Easy Start – Recoil Starter
- Lean Burn Control
- Over-Rev. Limiter
- Low Oil Pressure Caution
- Digital CDI
- Fresh Water Flushing System
- Shallow Water Drive
- Suzuki Anti-Corrosion System

Suzuki 25 HP DF25ATS Outboard Motor

Model DF25ATS

Model Year No

SKU DF25ATS-17

Weight 156.0000

Manufacturer Suzuki

Country of Manufacture Thailand

Horsepower 25hp

Shaft Length 15″ (Short)

Steering Remote

Starting Electric

Trim & Tilt Power Trim & Tilt

Fuel Delivery EFI

Fuel Tank External

Cylinder(s) 3

Displacement 29.8 (489)

Bore and Stroke 2.80 x 2.68 ()

Full Throttle RPM Range 5000 – 6000

Ignition System Digital CDI

Induction Scavenging SOHC

Valves per Cylinder 4

Fuel Type Unleaded Gasoline (87 octane)

Fuel Tank / Fuel Line No

Oil Type SAE 10W-30 or SAE 10W-40

Oil Capacity 1.6 (1.5)L

Lubrication Wet Sump; Trochoid Type Cam-Driven Oil Pump

Alternator Manual 12V 14A / Electric 12V 14A

Cooling System Water-Cooled

Saltwater Rated YES

Gear Ratio 2.09:1

Gear Shift Forward-Neutral-Reverse (front-mounted lever)

Propeller 3 x 10.25 x 11

Internal Battery No

Suzuki 25 HP DF25ATS Outboard Motor

What’s in the box?

- 6 gal Fuel Tank
- Fuel Line
- Owner’s Manual
- Aluminum Propeller
- Tool Kit
- Standard Side Mount Control Box and Harness
